OPERATION, CLEANING & MAINTENANCE

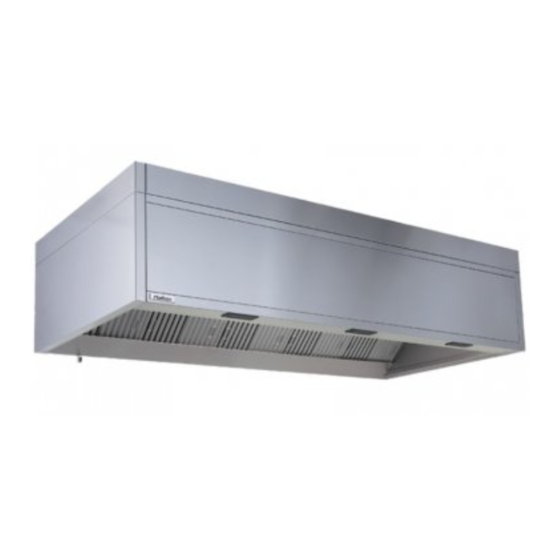

Halton Capture Jet 3 – Proprietary Kitchen Ventilation Exhaust Hoods
This manual is suitable for the following models:
KVF
Halton KVF Capture Jet™ Canopy with Supply Air and Side-Jet Technology
KVI
Halton KVI Capture Jet™ Canopy Side-Jet Technology
KVL
Halton KVL Extraction Canopy
KVX
Halton KVX Extraction Canopy
READ ALL INSTRUCTIONS BEFORE USE
Revision Date: 26/03/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Halton KVF Capture Jet
Summary of Contents for Halton KVF Capture Jet

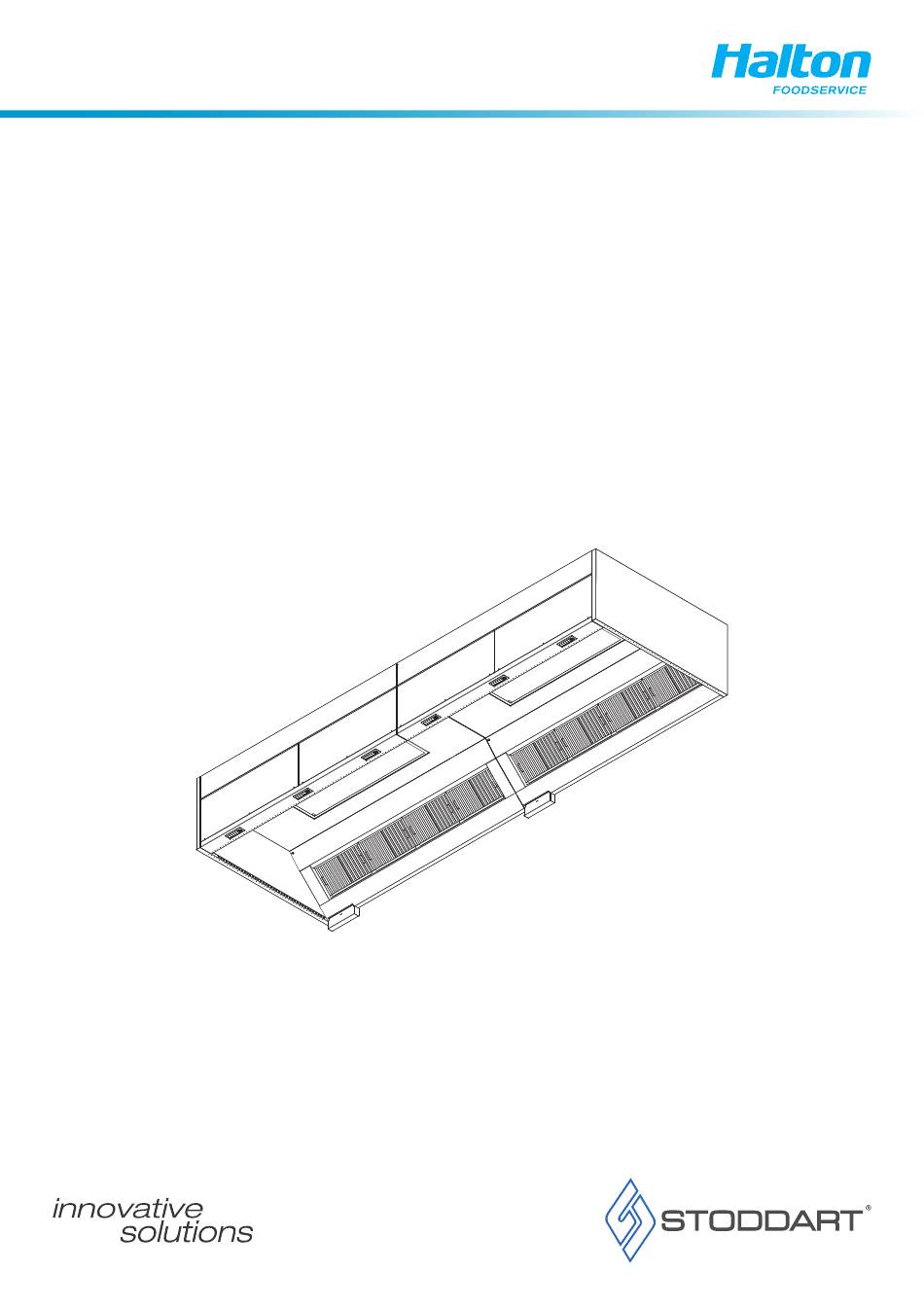

- Page 1 OPERATION, CLEANING & MAINTENANCE READ ALL INSTRUCTIONS BEFORE USE Halton Capture Jet 3 – Proprietary Kitchen Ventilation Exhaust Hoods This manual is suitable for the following models: KVF Halton KVF Capture Jet™ Canopy with Supply Air and Side-Jet Technology KVI Halton KVI Capture Jet™ Canopy Side-Jet Technology Halton KVL Extraction Canopy KVX Halton KVX Extraction Canopy Revision Date: 26/03/2019...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 2...
-
Page 3: Table Of Contents
Introduction Attention � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 General Information �... -
Page 4: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� This manual is to be passed onto the owner/facility at the project completion� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 5: Overview
Introduction Overview Example only� Exhaust hood configuration may vary due to customer specifications Light Box Capture Jets Comfort Nozzle KSA Filter T�A�B Point Grease Pot Capture Jets Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5... -
Page 6: Section Views
Introduction Section Views KVI: No provision for make-up air supply through hood� Adjustable Supply Air Damper Lamp Box KVF: Provision for make-up air supply through front Capture Jet Fan perforated face of the hood� (Not Supply Air) KSA FIlter Supply Air Capture Jet Grease Pot KVI-H: Wall position No provision for make-up air supply... -
Page 7: Capture Jet
• Halton Capture Jet Hoods have a row of horizontal and vertical jet holes along the front and open sides of the canopy� The capture jets produce controlled air curtains that capture and spiral the air toward the filters, improving capture� The air is drawn into the Capture Jet... -
Page 8: Hood Operation
Operation Hood Operation Kitchen exhaust hoods are part of a complete kitchen exhaust system that includes exhaust fans, controllers (switches, VSD and or BMS), exhaust ducts and possibly secondary filtration systems� The make-up air supply system (mechanical or natural ventilation) is also an integral part of the exhaust system�... -
Page 9: Cleaning
Cleaning and Maintenance Cleaning General Information • Threaded fasteners can loosen in service� Regular inspection and adjustment should be carried out as required • Cleaning is recommended for health and safety purposes and to prolong the life of the unit •... -
Page 10: Recommended Cleaning And Maintenance Schedule
Cleaning and Maintenance Recommended Cleaning And Maintenance Schedule For good kitchen hygiene, the exhaust hood should be visually inspected by management at least once per week� The below ‘Cleaning and Maintenance Schedule’ can also be found attached on the inside of the exhaust hood� These provide a cleaning guide for Extreme, Heavy and Light duty operation�... -
Page 11: Exposed Hood Surface
Cleaning and Maintenance Exposed Hood Surface Check all metal surfaces to ensure that there is no accumulation of grease or dirt and that there is no surface damage that could harbour dirt and bacteria� Clean exposed interior and exterior surfaces of hood and light fixture with mild soapy water or a neutral product� Carefully rinse away all surplus cleaning product�... - Page 12 Cleaning and Maintenance KSA Cyclonic Filters – Remove and Wash 1� Switch off the exhaust fan 2� Take note of filter positions (to ensure any blind panels are positioned in same location) 3� Lift each filter up and rotate bottom of filter toward you, then lower filter down and out of the hood 4�...
-
Page 13: Exhaust Plenum - Inspect And Clean
Cleaning and Maintenance Exhaust Plenum - Inspect and Clean The exhaust ductwork has to be periodically inspected and cleaned by the Service Contractor, the exhaust plenum should be also be thoroughly cleaned at the same time� When the filters are removed, inspect the inside of the exhaust plenum� Condensed oil vapour should flow to the base and drain to the grease pots�... -
Page 14: Maintenance
Cleaning and Maintenance Maintenance • The process of handling and washing filters can result in them being bent� Check filters for damage to ensure they can be easily refitted� We recommend each business hold a stock of spare filters to replace damaged filters •... -
Page 15: Down Lights
Cleaning and Maintenance Down Lights: 1� Pull the downlight down and out of the hood, this can be difficult� There are two spring clamps holding the lamp in� You may need to pry the light off the surface of the hood and use a screwdriver (or similar) to hold the clamps back� If it is possible, reach on top of the hood and hold the clamps back Spring Clamps Pull Out... - Page 16 Cleaning and Maintenance 4� To replace the driver, pull it through the hole, undo the connections and replace it with a new one 5� Re-fit all lights and drivers as they were before� Ensure the driver is connected to the hood with Velcro again (reuse the Velcro from the old driver if need be) Due to continuous product research and development, the information contained herein is subject to change without notice.
-
Page 17: Testing And Balancing Pressure And Airflow - Exhaust Air Flow
Cleaning and Maintenance Testing and Balancing Pressure and Airflow - Exhaust Air Flow Every 6 months (typically) the Capture Jet fan will need to be serviced by a qualified technician� Contact Stoddart at 1300 307 289 for assistance� Before measuring airflows check the exhaust and supply fan are on and functioning normally� Airflows are balanced in each hood section by adjusting the sliding dampers�... -
Page 18: Testing And Balancing Pressure And Airflow - Supply Air Flow
Cleaning and Maintenance Testing and Balancing Pressure and Airflow - Supply Air Flow Every 6 months (typically) the Capture Jet fan will need to be serviced by a qualified technician� Contact Stoddart at 1300 307 289 for assistance� There are two components to the supply air, the T�A�B� pressure point and front face air speed� Note that not every model has a perforated front panel for supply air and only KVF models require a supply duct to be connected�... -
Page 19: Troubleshooting
Cleaning and Maintenance Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department Problem / Alarm Indication Possible Cause(s) Corrective Action(s) •... -
Page 20: Pressure Drop And Sound Data
Cleaning and Maintenance Pressure Drop And Sound Data The sound levels in the kitchen under an exhaust canopy are influenced by many external factors including the room and surfaces, the duct, the exhaust fans and supply fans� The graphs show the noise level of the exhaust air passing through the exhaust hood (typically 50 –... -
Page 21: Spare Parts
Cleaning and Maintenance Spare Parts SPEH-HAL-KVI-KVF Item No. Part Number Spare Parts Description & l l o SPEH-HAL-0072 A1 Grease Pot SPEH-HAL-0083 A4 Blind Filter CMHAL-0010 Air Nozzle Closed CMHAL-0019 KSA Filter CMGE-1107 Air Nozzle Due to continuous product research and development, the information contained herein is subject to change without notice. - Page 22 Cleaning and Maintenance SPEH-HAL-0066 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 22...
- Page 23 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 23...
- Page 24 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
