Halton highly recommends that the facility enter into a formal annual maintenance contract
with the local Authorized Service Agent. Contact the factory directly if you would like the name
and phone number of the local ASA.
1.
Clean the hood canopy inside and out as needed with mild soap and water. Never use harsh or
abrasive cleaners on Stainless Steel or Painted surfaces, making sure to wipe clean all interior
and exterior surfaces of the hood including the light fixtures.
** Never clean the hood canopy when any of the surfaces are hot.
2.
The KSA stainless steel filters and the GPS filters need to be cleaned regularly. The frequency
of cleaning is load dependent. The cleaner the filters the better the UVC system will perform.
Filters can be soaked in a degreaser overnight and rinsed in the morning before being replaced or
they can be run through a commercial dish machine. Please see instructions below that describe
the removal of the KSA primary filter and cleaning process. After removing the KSA filters
remove the GPS filters. Lift the GPS filter upwards until the bottom of the filter clears its track,
swing the bottom out forward and pull the filter downwards to clear the upper track. Replace the
GPS filter by reversing the above instruction.

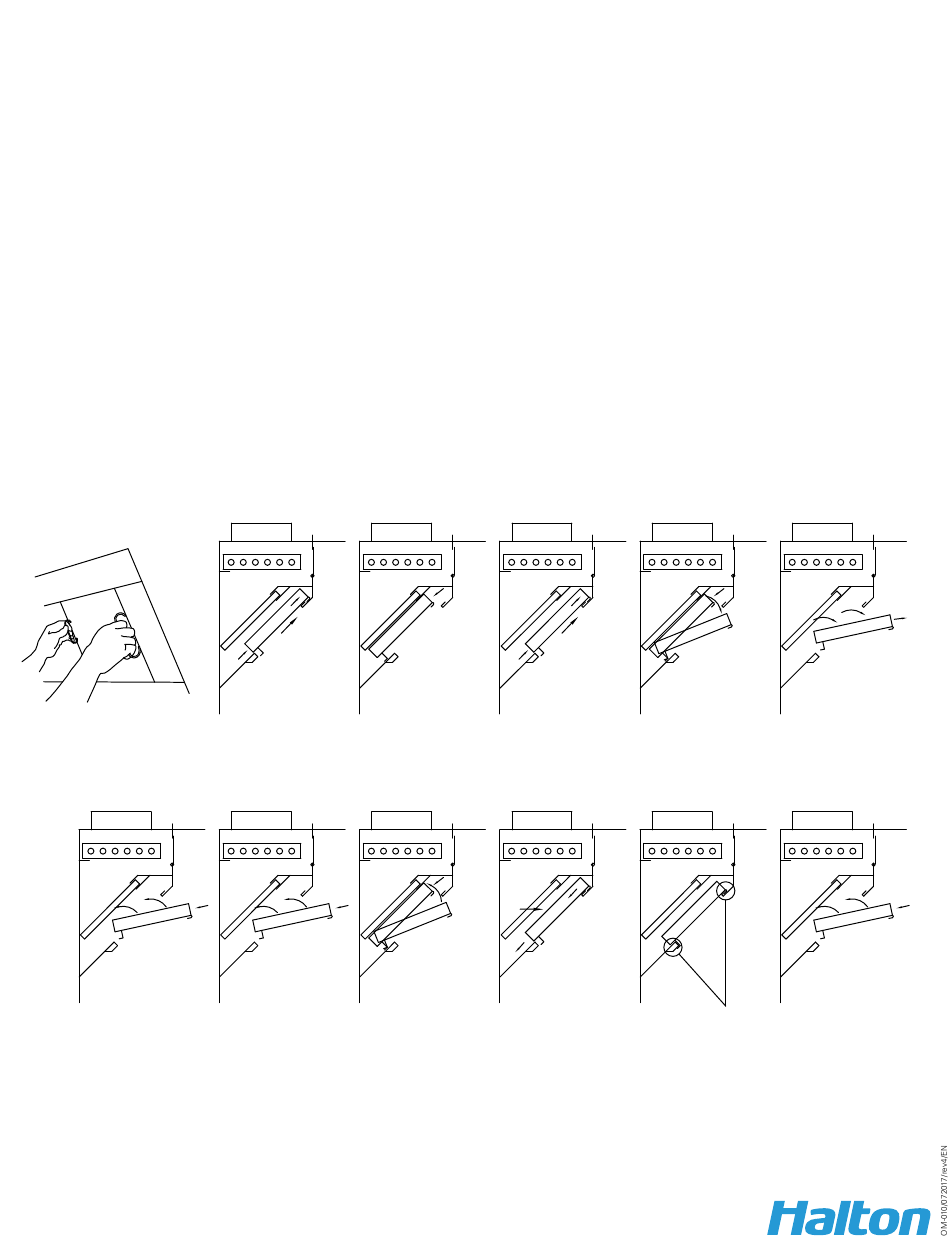

Primary Filter Removal Instructions
Grasp Right hand filter
First place righthand filter
into plenum
Slide filter to the right into
plenum behind spacer
Leave righthand filter there
until remaining filters are in
place
Capture Ray
®
UV Operation & Maintenance Manual
Slide filter up
Push filter back and down
Slide filter to the right into
plenum behind spacer
Leave filter in plenum for
now
Lift Lefthand filter
Push filter in and down
into plenum
Tilt top of filter in
Repeat with 2nd filter
Push filter back and down
from the right removing
Tilt top of filter out
this filter as follows:
Lift filter to the front
It is Important that the
Slide filter down and
top lip and bottom lip
to the left
of the filter are
hooked correctly
16
Lift filter out of plenum
Repeat with remaining
filters
Finally remove righthand
filter
Repeat with remaining
filters, from left to right
Last replace righthand
filter into original position
