Summary of Contents for Halton MM1 Series

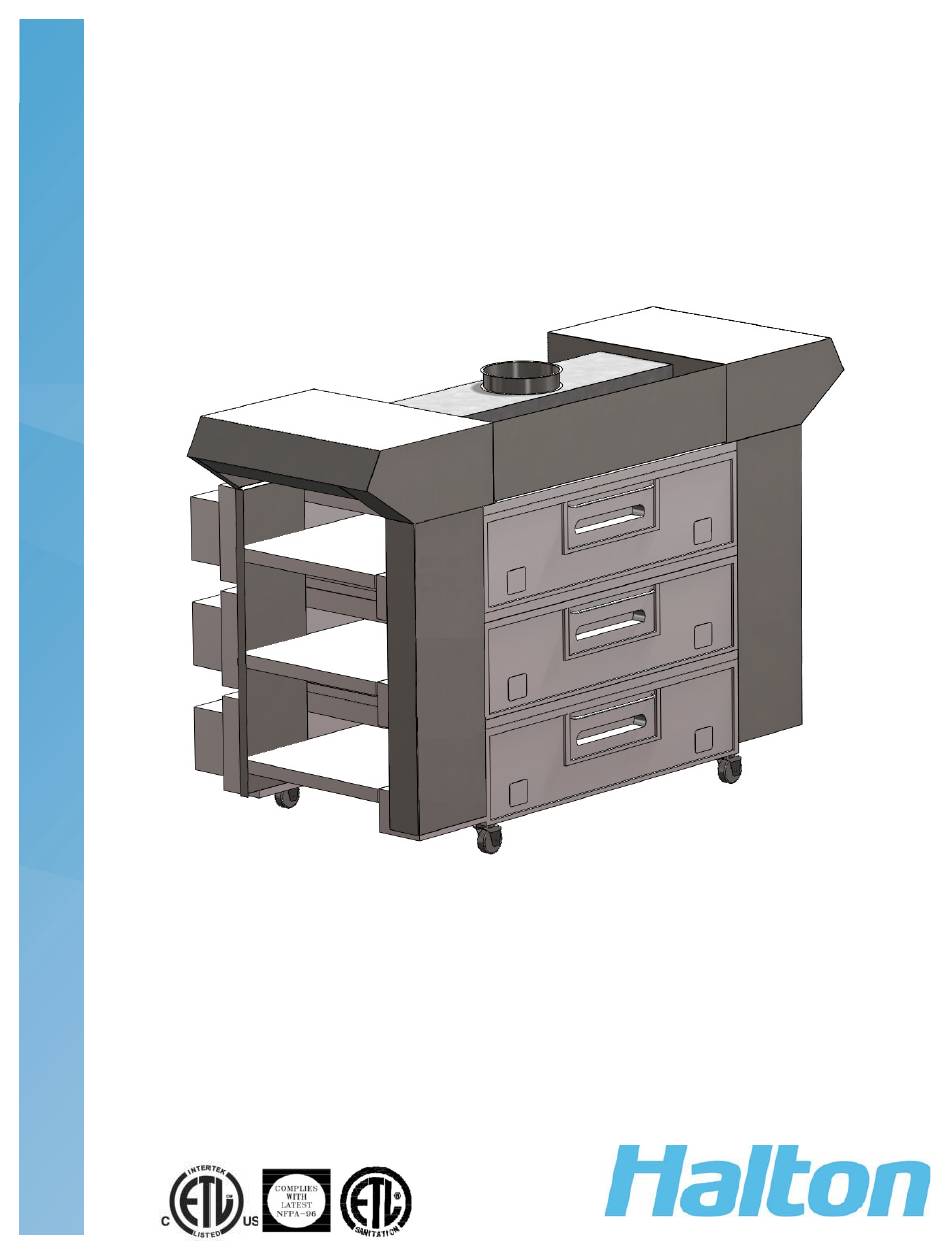

- Page 1 Operators Manual Manual provides Installation and Operating Instructions Model MM1 Series Hood...
- Page 2 Cut Sheets for the MM1 Series Hoods...
- Page 8 Oven Type CFM w/ Side skirts Standard Equipment Optional Equipment Single Stack Double Stack 1200 • 4 Aluminum Filters • Stainless Filters Triple Stack 1750 1275 • Listed per UL710 • Switch Panel Opt. Eyebrow • Side Skirts (Painted Opt.) •...
- Page 9 General Description Halton’s MM1 Series hood is designed to efficiently capture and remove the grease, smoke, and other effluents generated when cooking with pizza ovens. The hood is designed to rest on top of the pizza oven which provides an operational advantage of capturing the grease, smoke and other effluents directly above the pizza oven outlets.
- Page 10 Model MM1 INSTALLATION INSTRUCTIONS 1) Inspect the crating carefully. If there are signs of damage, call the freight carrier before uncrating the units. Carefully uncrate the units. ** Important note ** Do not leave units out in the weather for an extended time period. The protective PVC around the hood will become very difficult to remove if left exposed to the weather conditions for a long period of time.
-
Page 11: Fire Suppression System
Ansul system installer. The illustrations below depict the typical layout for an MM1 hood fire system. The pre-pipe components supplied by Halton are shown in solid lines and the components supplied by others are shown in dashed lines. - Page 12 MM1 Typical Fire Suppression System Isometric View MM1 Typical Fire Suppression System Schematic...
-
Page 13: Operation Of System
OPERATION OF SYSTEM 1) After installation is complete, it will be necessary to check and balance the airflows. 2) After the system has been placed into service and the balancing of airflows has been accomplished, a final inspection should be made. Check for unusual noises, excess exhaust or supply rates and general operations. -
Page 14: Parts List
PARTS LIST Filters – 12” x 16” Aluminum Baffle Halton part number – 10163 12” x 20” Aluminum Baffle Halton part number - 10164 9” Duct Collar Extension 14PSW9 (3AO) Halton part number - 11461 Collar Connector 14PICRHC (3AO) Halton part number – 11462... -
Page 15: Warranty
WARRANTY Halton Company warrants all MM1 hoods for a period of 12 months from date of shipment to be without defects in workmanship and material. Omissions or defects will be re- placed or repaired at Halton’s option. Halton will not accept labor charges without prior approval.
