Summary of Contents for Halton Capture Jet KVE-WW

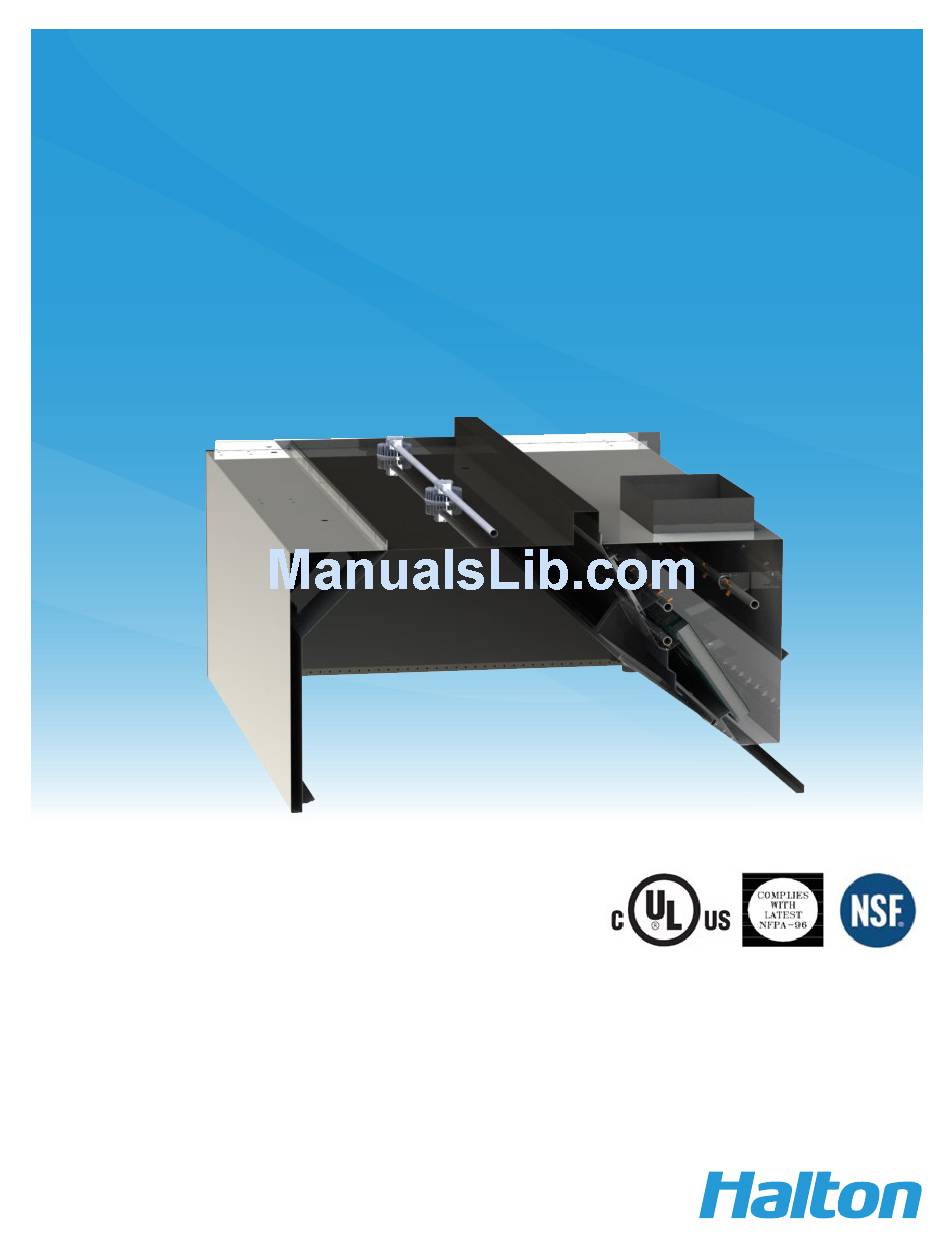

- Page 1 Operators Manual for Capture Jet Hoods with ® Water Wash Technology Manual provides Operation, Maintenance and Service Instructions Capture Jet Hoods with Water Wash Technology ® KVE-WW, KVC-WW Form#: OM006_CAPTURE JET WITH WATER WASH Date: 07-11-2016 - Rev2...
-
Page 2: General Description
Installation, Operation and Maintenance Manual. In addition to this information technical support is available from the Halton Factory during regular office hours, 7 A.M. to 5 P .M. Central Time, to provide support for products, applications, installation, commissioning or for any aspect that you may have. -
Page 3: Installation Instructions
EXHAUST AIRFLOWS Please see submittal drawings or contact the manufacturer for each hood’s exhaust air flow rates. Halton’s applications department determines the optimum exhaust rate for effective capture & containment of cooking effluent. These exhaust airflows are included in the job submittal drawings for each hood and are customized for the specific kitchen appliance arrangement and environment. - Page 4 Please note only install 100 watt maximum light bulbs in incandescent light fixtures. Fluorescent bulbs should be type T8, 36” or 48” long in fluorescent fixtures. **Note: Halton does not provide bulbs for incandescent or fluorescent lights.
- Page 5 Water Inlet point on back of hood. Water Drain point on hood. Capture Jet ® with Water Wash Operation & Maintenance Manual...
-
Page 6: Backsplash Installation
Screw through top flange into wall. (Screw head will not interfere with hood). Screw backsplash to wall or attached with adhesive. Halton canopy hoods should be installed 78” minimum above finished floor to 84” maximum above finished floor. Capture Jet ®... - Page 7 HOOD INSTALLATION DETAILS Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 8 EXHAUST DUCT CONNECTION DETAILS Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 9 SPLICE STRIP/U-CHANNEL ASSEMBLIES Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 10 CLOSURE PANEL ASSEMBLY Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 11 Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 12 Capture Jet ® with Water Wash Operation & Maintenance Manual...
-
Page 13: Operation Of System
This negative static pressure can be measured and has a direct relationship to the total exhaust airflow measured in CFM (Cubic Feet per Minute). Halton Capture Jet hoods are calibrated based on the model of hood and the number of grease filters the hood has. A static pressure curve is provided with each hood which allows the air balancer to easily set up the exhaust fan to draw the correct exhaust CFM through the hood based on measuring the static pressure of the exhaust plenum. - Page 14 2. Halton Capture Jet Hoods are equipped with efficient model KSA grease filters. The KSA grease filters must be removed and cleaned by qualified employees of the restaurant owner or by a cleaning agency. Please see detailed instructions on pg. 16 that describe the removal and replacement process.
- Page 15 CROSS SECTION OF CAPTURE JET™ WATER WASH HOOD Item Description Water Wash Intake Supply Water Wash Nozzle Manifolds Multi-cyclone KSA extractor Drain Pipe Connection Capture Jet Fan Capture Jet ® with Water Wash Operation & Maintenance Manual...
-
Page 16: Hood Maintenance
HOOD MAINTENANCE Halton highly recommends that the facility enter into a formal annual maintenance contract with the local Authorized Service Agent. Contact the factory directly if you would like the name and phone number of the local ASA. Clean the hood canopy inside and out as needed with mild soap and water. Never use harsh or abrasive cleaners on Stainless Steel or Painted surfaces, making sure to wipe clean all interior and exterior surfaces of the hood including the light fixtures. -
Page 17: Replacement Part Numbers
REPLACEMENT PARTS SCHEMATIC Replacement Part Numbers KSA Grease Extractor 13” X 20” – KSA13, 13” X 11” – KSA13-1/2 LED Light Base 10982 LED Light Lens 10848 Warm White 24 LEDs 10849 Cool White 24 LEDs 10979 Warm White 12 LEDs Water Wash Nozzle Information Two different nozzles are supplied with the Capture Jet Water Wash Hood. -
Page 18: Control Panel Operation
Control Panel Operation The Water Wash control panel is designed to operate only under safe conditions and warn when there are fan failures or other operational failures. Capture Jet ® with Water Wash Operation & Maintenance Manual... - Page 19 Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 20 Water Wash Touch Screen Guide Use of the Touch Screen When the system is started the screen shown below is the start screen. When this screen is shown the exhaust fan may be manually turned on and off using the software switch depicted in the center of the screen. Pressing on the right side of the virtual rocker switch will turn the exhaust fan on.
- Page 21 Wash Status Screen The Wash Status screen allows the user to monitor the progress of each wash cycle. While the Wash, Soak, or Rinse cycle is running the word ON appears in the field which is currently active. After the Wash, Soak, or Rinse cycles completes, the word ON moves to the next field.
- Page 22 Water Wash Setup The number of wash cycles equals the number of separate Water Wash Hoods (and Duct Sumps, if installed) on the Control Panel. One hood is one wash cycle, two hoods is two wash cycles, two hoods and one duct sump is three wash cycles, etc.
- Page 23 Alarm History Screen The Alarm History screen will retain a record of up to the last 200 alarm messages. If the alarm message is in black font the alarm is an active alarm. The remaining alarm history will be in green font. Active alarms require action by an authorized service technician.
- Page 24 Menu Options button Pressing the Menu Options button at the bottom left of the screen will bring up a quick access screen overlay that allows the user to select any of the screen options available. Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 25 Water Wash User Guide The Water Wash User Guide button will take you through depictions of all of the screens with explanations of the functions found on each screen. Capture Jet ® with Water Wash Operation & Maintenance Manual...
- Page 26 Capture Jet ® with Water Wash Operation & Maintenance Manual...
-
Page 27: Electrical Wiring/Connections
Electrical Wiring/Connections Two electrical wiring diagrams are shown below: Control Panel electrical wiring diagram Field wiring diagram CONTROL PANEL WIRING DIAGRAM Capture Jet ® with Water Wash Operation & Maintenance Manual... -
Page 28: Field Wiring Diagram
FIELD WIRING DIAGRAM Capture Jet ® with Water Wash Operation & Maintenance Manual... - Page 29 WARRANTY ACTIVATION FORM This form must be completed and returned to Halton in order for your warranty to be valid. Job & Location Information: Job Name: Street Name: Zip Code: City: State: Equipment Start-Up Date: Product Serial Numbers: Contact Information:...
- Page 30 All products sold but not manufactured by Manufacturer will be warranted for a period of twelve (12) months from date of shipment. (Halton’s Warranty Card must be completely filled out and returned to Halton within 3 weeks after the equipment start-up date for your warranty to be valid *IMPORTANT NOTE: “IF”...
