Chapter 3: Jumpers and Switches

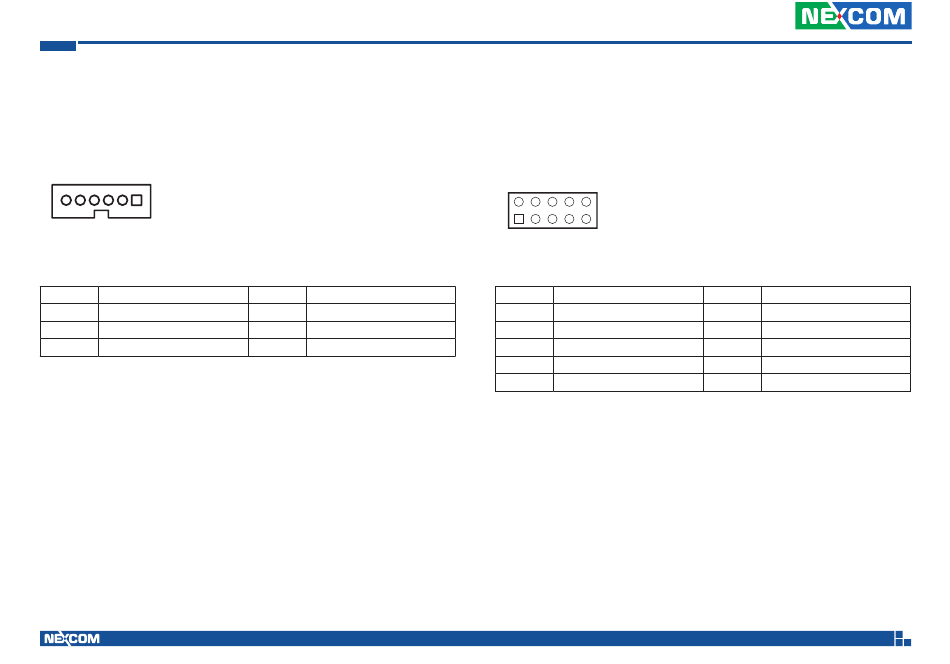

Capture Card Connector
(Connector for SC330 video capture card)
Connector size: 1 x 6 = 6-pin header (1.0mm)
Connector location: J5
6
1
Pin
Definition
1
GND
3
CAP2_A
5
CAP1_A
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
CAP2_B
4
CAP1_B
6
GND
Capture Card Connector
(Connector for MPX-885 video capture card)
Connector size: 2 x 5 = 10-pin header (1.27mm)
Connector location: JP10
2
10
1
9
Pin
Definition
1
CAP1_A
3
CAP2_A
5
GND
7
NC
9
NC
24
Pin
Definition
2
CAP1_B
4
CAP2_B
6
NC
8
NC
10
NC
VTC 1010 User Manual
