Chapter 3: Jumpers and Switches

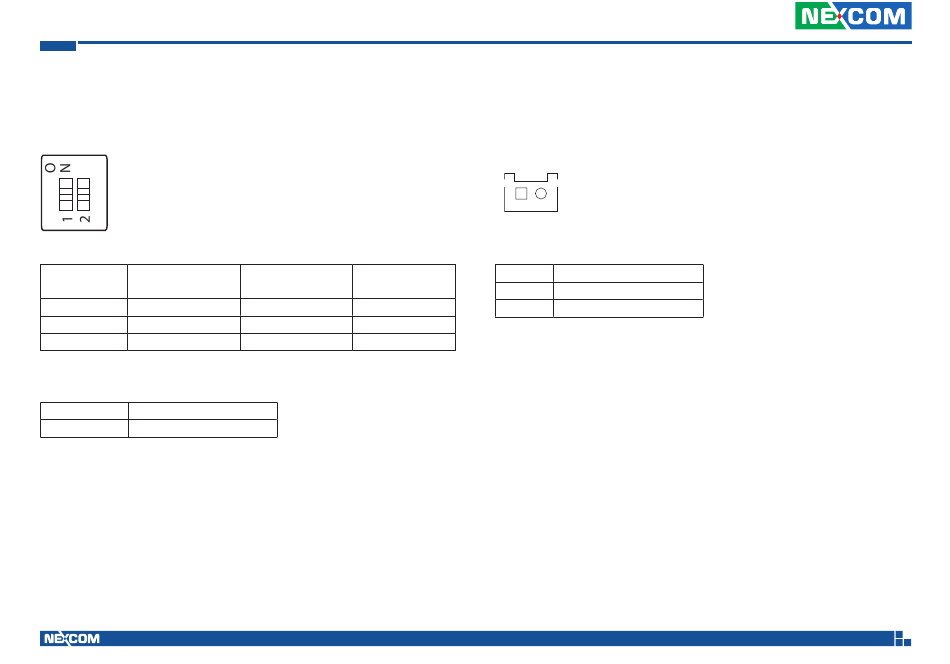

WWAN Module Selector (For Wake-Up & Voice on CN10)
Connector location: SW7
WWAN HE910
Wake-Up & Voice
SW7.1
On
SW7.2
Off
Digital Voice*
HE910 (I2S)
Default Settings:
SW7.1
Off
SW7.2
On
*Digital voice is selectable in BIOS.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
WWAN CM8000
WWAN
Wake-Up & Voice
MC8090/8092
Off
Off
On
On
Disabled (default)
MC8090(PCM)
RTC Battery Connector
Connector size: 1 x 2 = 2-pin header (1.25mm)
Connector location: J11
1
2
Pin
Definition
1
GND
2
RTC_BAT
20
VTC 1010 User Manual
