Appendix C: Pin Definition for Multiport Cable

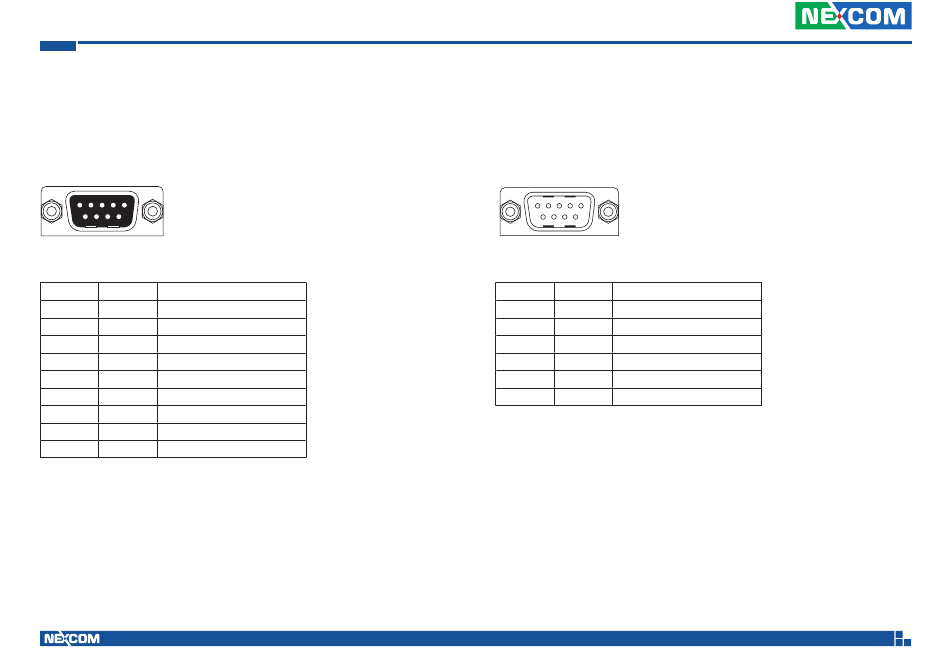

GPIO + CAN Bus 2.0B Connector

Connector type: DB9, Female
Connector location: P4
5 1
9 6
P1 Pin P4 Pin Definition
4 1 GPIO1
5 2 GPIO2
26 3 GPIO3
27 4 GPIO4
23 5 ISO_GND
34 6 GPIO5
37 7 CAN1_H
38 8 CAN1_L
35 9 GPIO6
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

OBDII Connector

Connector type: DB9, Male
Connector location: P5
1 5
6 9
P1 Pin P5 Pin
39 3
50 4
24 5
40 8
51 9
1, 2, 6, 7
57
Definition
CAN_M_L
C1708_1_L
ISO_GND
CAN_M_H
C1708_1_H
NC
