4.2.2 Layer-2
Layer-2 is primary ground plane for the board reference (see
section, which is per the antenna guidelines. This return current path for the input de-coupling capacitors
(C11, C13, and C18) is routed on L2 using thick traces to isolate RF ground from a noisy supply ground.
This is also required to meet the IEEE spectral mask specifications.
SWRU370B – June 2014 – Revised August 2018
Submit Documentation Feedback

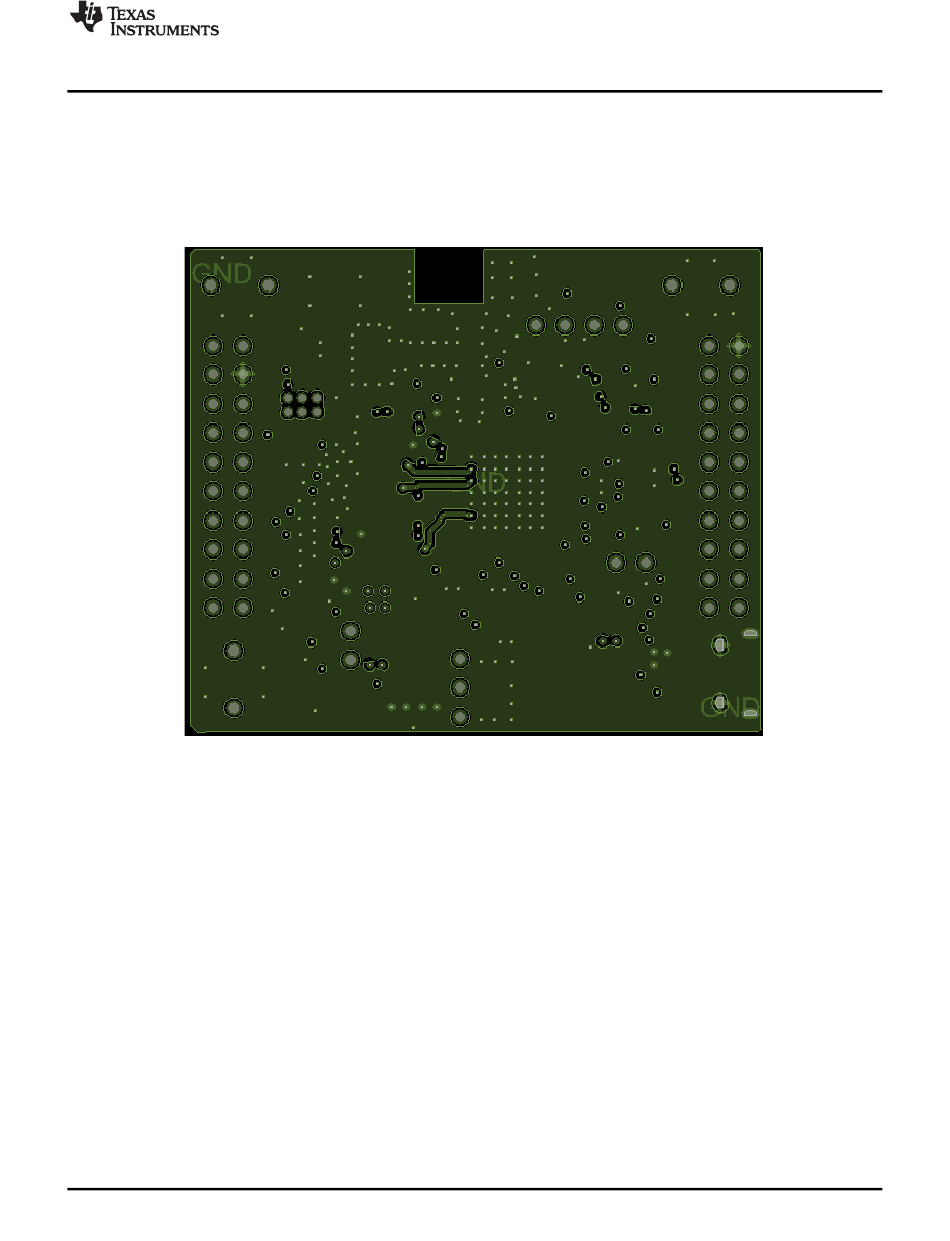

Figure 4. Layer-2
