The SimpleLink™ Wi-Fi
demo platform for showcasing the capabilities of the CC3200 device. With this easy-to-use platform,
environmental sensing and other Internet of Things (IoT) applications can be done with ease.
The CC3200 device is part of the SimpleLink microcontroller (MCU) platform which consists of Wi-Fi
Bluetooth
low energy, Sub-1 GHz and host MCUs. All share a common, easy-to-use development
®
environment with a single core software development kit (SDK) and rich tool set. A one-time integration of
the SimpleLink platform lets you add any combination of devices from the portfolio into your design. The
ultimate goal of the SimpleLink platform is to achieve 100 percent code reuse when your design
requirements change. For more information, visit www.ti.com/simplelink.
...................................................................................................................
1
1.1
1.2
1.3
1.4
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
3.4
3.5
3.6
4
4.1
5
..................................................................................................................
6
Trademarks
Texas Instruments, SimpleLink, Internet-on-a chip, LaunchPad are trademarks of Texas Instruments.
ARM, Cortex are registered trademarks of ARM Limited.
Apple is a registered trademark of Apple, Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
IOS is a registered trademark of Cisco Systems, Inc.
Google Play is a trademark of Google.
IBM is a registered trademark of IBM Corporation.
Wi-Fi is a registered trademark of Wi-Fi Alliance.
All other trademarks are the property of their respective owners.
SWRU509 - February 2017
Submit Documentation Feedback
®
SensorTag from Texas Instruments™ (model CC3200SensorTag) provides a
................................................................................................
........................................................................................................
....................................................................................................
..................................................................................
.......................................................................................................
.......................................................................................................
................................................................................................
...........................................................................................
.......................................................................................................
.................................................................................
.......................................................................................
...................................................................................................
...........................................................................................
................................................................................................................
...........................................................................................................
...............................................................................................................
Copyright © 2017, Texas Instruments Incorporated
SimpleLink™ Wi-Fi
Contents
..............................................................................
.................................................................
....................................................
User's Guide
SWRU509 - February 2017
®
SensorTag
®
SimpleLink™ Wi-Fi
SensorTag
,
®
2
2
3
3
3
5
5
6
6
6
8
8
8
10
11
11
12
13
13
13
14
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments SimpleLink Wi-Fi CC3200 SensorTag
Summary of Contents for Texas Instruments SimpleLink Wi-Fi CC3200 SensorTag
-
Page 1: Table Of Contents
PCB Revision ........................References Trademarks Texas Instruments, SimpleLink, Internet-on-a chip, LaunchPad are trademarks of Texas Instruments. ARM, Cortex are registered trademarks of ARM Limited. Apple is a registered trademark of Apple, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. -
Page 2: Introduction

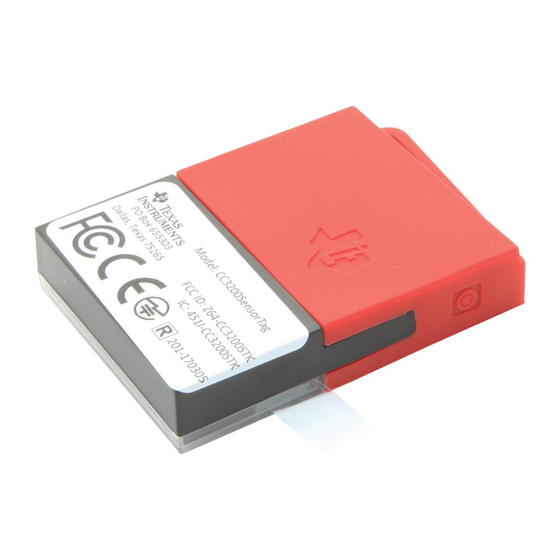

Rev1.2, unless otherwise stated. CAUTION The kit contains electrostatic discharge (ESD) sensitive components. Handle with care to prevent permanent damage. Figure 1. CC3200 SensorTag ® SWRU509 – February 2017 SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 3: Key Features
Consult the dealer or an experienced radio or TV technician for help. 1.4.1.2 RF Exposure Information (SAR) This device complies with radio frequency (RF) exposure limits adopted by the FCC for an uncontrolled environment. SWRU509 – February 2017 ® SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 4 Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. 1.4.3 Texas Instruments Inc. declares that the radio equipment type CC3200SensorTag is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at www.ti.com/lit/pdf/sszq037.
-
Page 5: Hardware Description
TMP007 Gyroscope, Accelerometer, and Pressure Microphone Compass Sensor SPK0833 MPU-9250 BMP280 Copyright © 2017, Texas Instruments Incorporated Figure 2. CC3200 SensorTag Block Diagram SWRU509 – February 2017 ® SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 6: Hardware Features
The HCS0503B device can be used as an alarm (see [3]). Some of the specifications follow: • Rated voltage of 3 V Output S.P.L ≥ 80 dB • • Coil resistance of 12 Ω ±3 ® SWRU509 – February 2017 SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 7 Measurements: 0.01 lux to 83k lux • Wide power-supply range: 1.6 V to 3.6 V • Low operating current: 1.8 µA • Flexible interrupt system SWRU509 – February 2017 ® SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 8: Operation Description
0.98, the app will prompt you to upgrade the SensorTag to the latest version (see Figure 4). Follow the steps to upgrade the SensorTag. ® SWRU509 – February 2017 SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 9 For Android devices, the phone will keep the connection to the SensorTag access point. On the Android device, select Configure new Wi-Fi SensorTag, and follow the on-screen instructions to configure the Wi-Fi settings. Figure 5. Available Device SWRU509 – February 2017 ® SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 10: Connecting The Sensortag To Your Local Wi-Fi Network
To view the sensor data directly in the Cloud, follow the Cloud URL. The SensorTag will now send data directly to the IBM quickstart cloud using MQTT. ® NOTE: These data are sent directly without any security or encryption enabled. ® SWRU509 – February 2017 SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 11: Switching Between Modes
If you have problems connecting the SensorTag to your access point, use the advanced setup. Take note of the IP address of the SensorTag (see Figure Figure 9. Example of SensorTag IP Address SWRU509 – February 2017 ® SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 12: Replacing The Batteries
1. Remove the red rubber casing and plastic casing as shown in Figure 2. Remove and replace batteries. Figure 11. Replacing the Batteries ® SWRU509 – February 2017 SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 13: Design Files
All design files include schematics, layout, bill of materials (BOM), Gerber files, and documentation. All documentation materials are available for download from SimpleLink Wi-Fi CC3200 LaunchPad Reference Design. PCB Revision PCB Revision Description Rev 1.2 Baseline SWRU509 – February 2017 ® SimpleLink™ Wi-Fi SensorTag Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 14: References
Watch DevPack SimpleLink Wi-Fi CC3200 LaunchPad Reference Design CC3200 SimpleLink™ Wi-Fi® and IoT SensorTag Design Files Revision History Date Revision Notes February 2017 SWRU509* Initial release Revision History SWRU509 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 15 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
