User's Guide
SimpleLink™ Wi-Fi® SensorTag
The SimpleLink™ Wi-Fi
platform for showcasing the capabilities of the CC3200 device. With this easy-to-use platform, environmental
sensing and other Internet of Things (IoT) applications can be done with ease.
Trademarks.................................................................................................................................................................................1
1
Introduction.............................................................................................................................................................................2
SensorTag............................................................................................................................................................2
Description.............................................................................................................................................................2
2.1 RF Function and Frequency Range...................................................................................................................................
3 Operation Description............................................................................................................................................................
3.3 Connecting the SensorTag to Your Local Wi-Fi Network...................................................................................................
3.4 Switching Between Modes.................................................................................................................................................
3.5
Troubleshooting..................................................................................................................................................................6
3.6 Replacing the Batteries......................................................................................................................................................
History.........................................................................................................................................................................9
Trademarks
™
SimpleLink
and Internet-on-a chip
Google Play
™
is a trademark of Google.
Texas Instruments
®
is a registered trademark of Texas Instruments.
ARM
®
and Cortex
®
are registered trademarks of ARM Limited.
®
Apple
is a registered trademark of Apple, Inc.
IOS
®
is a registered trademark of Cisco Systems, Inc.
IBM
®
is a registered trademark of IBM Corporation.
All other trademarks are the property of their respective owners.
SWRU513B - FEBRUARY 2017 - REVISED JULY 2020
Submit Document Feedback
®
SensorTag from Texas Instruments
Table of Contents
App.......................................................................................................................................3
Point...................................................................................................................3
™
are trademarks of Texas Instruments.
Copyright © 2020 Texas Instruments Incorporated
ABSTRACT
®
(model CC3200SensorTag) provides a demo
Table of Contents
SimpleLink™ Wi-Fi® SensorTag
2
3
5
6
7
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments SimpleLink Wi-Fi SensorTag CC3200
Summary of Contents for Texas Instruments SimpleLink Wi-Fi SensorTag CC3200
-
Page 1: Table Of Contents
Internet-on-a chip are trademarks of Texas Instruments. Google Play ™ is a trademark of Google. Texas Instruments ® is a registered trademark of Texas Instruments. ® and Cortex ® are registered trademarks of ARM Limited. ® Apple is a registered trademark of Apple, Inc. -
Page 2: Introduction
CC3200 SimpleLink™ Wi-Fi® and IoT SensorTag Design Files). Note The maximum RF power transmitted in each WLAN 2.4-GHz band is 16.5 dBm (EIRP power). SimpleLink™ Wi-Fi® SensorTag SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 3: Operation Description
To launch the SensorTag app, you may have to pull down the menu in the SensorTag device list to refresh the device list. The app detects the new Wi-Fi SensorTag. If the SensorTag is programmed with firmware version SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 SimpleLink™ Wi-Fi® SensorTag Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 4 Configure new Wi-Fi SensorTag, and follow the on-screen instructions to configure the Wi-Fi settings. Figure 3-3. Available Device SimpleLink™ Wi-Fi® SensorTag SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 5: Connecting The Sensortag To Your Local Wi-Fi Network
To view the sensor data directly in the Cloud, follow the Cloud URL. The SensorTag will now send data directly to ® the IBM quickstart cloud using MQTT. Note These data are sent directly without any security or encryption enabled. SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 SimpleLink™ Wi-Fi® SensorTag Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 6: Switching Between Modes
If you have problems connecting the SensorTag to your access point, use the advanced setup. Take note of the IP address of the SensorTag (see Figure 3-7). Figure 3-7. Example of SensorTag IP Address SimpleLink™ Wi-Fi® SensorTag SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 7: Replacing The Batteries

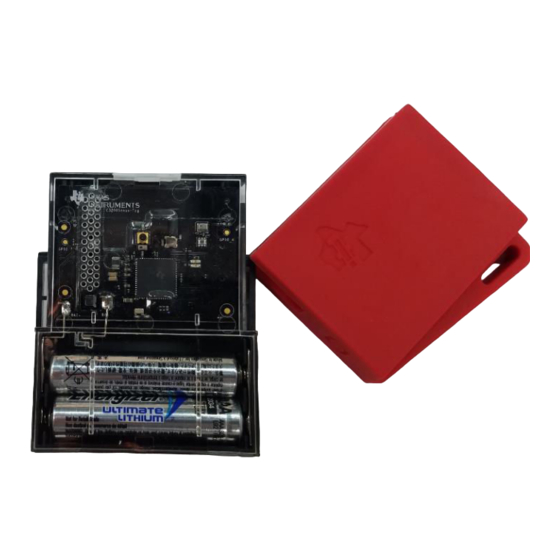

1. Remove the red rubber casing and plastic casing as shown in Figure 3-9. 2. Remove and replace batteries. Figure 3-9. Replacing the Batteries SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 SimpleLink™ Wi-Fi® SensorTag Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 8 When this product reaches its end of life, take it to a collection point designated by local authorities. Proper recycling of your product will protect human health and the environment. SimpleLink™ Wi-Fi® SensorTag SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 9: Revision History
Changes from March 1, 2017 to July 23, 2020 (from Revision A (February 2017) to Revision B (July 2020)) Page • Updated Introduction............................SWRU513B – FEBRUARY 2017 – REVISED JULY 2020 SimpleLink™ Wi-Fi® SensorTag Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 10 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2020, Texas Instruments Incorporated...
