Layout Information
4.2.3 Layer-3
Layer-3 is used to route the power lines to the device (see
power amplifier (PA) and the main supply input to the device. More details are available in subsequent
sections.
10
CC3100 and CC3200 SimpleLink™ Wi-Fi
Layout Guidelines

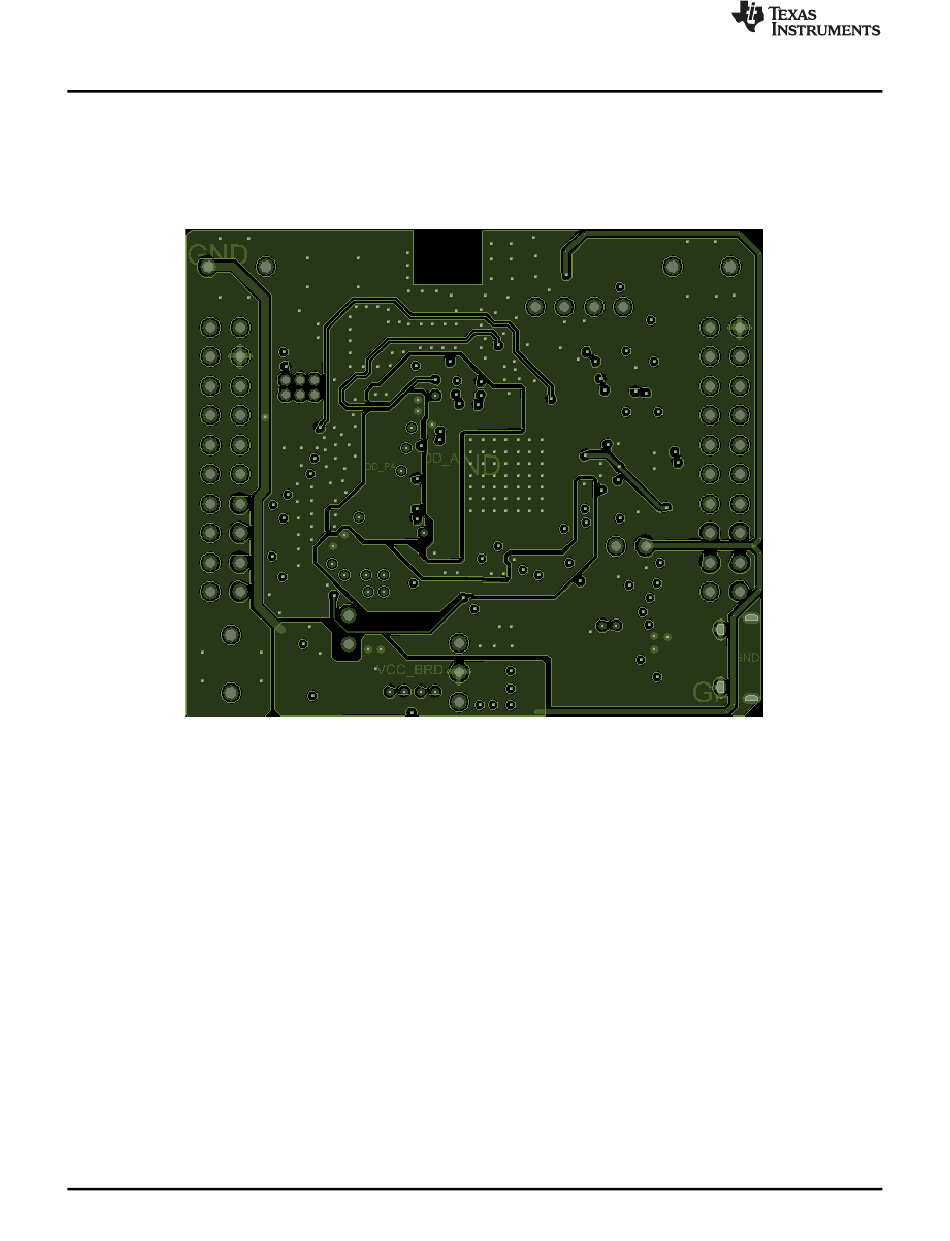

Figure 5. Layer-3
®
