Layout Guidelines

5 Layout Guidelines
5.1 RF
As a wireless device, the RF section gets the top priority in terms of layout (see
important for the RF section to be laid out correctly to get the optimum performance from the device. A
poor layout can cause performance degradation for the output power, the error vector magnitude (EVM),
the sensitivity, and the spectral mask.
U.FL
conn
12
CC3100 and CC3200 SimpleLink™ Wi-Fi
Layout Guidelines

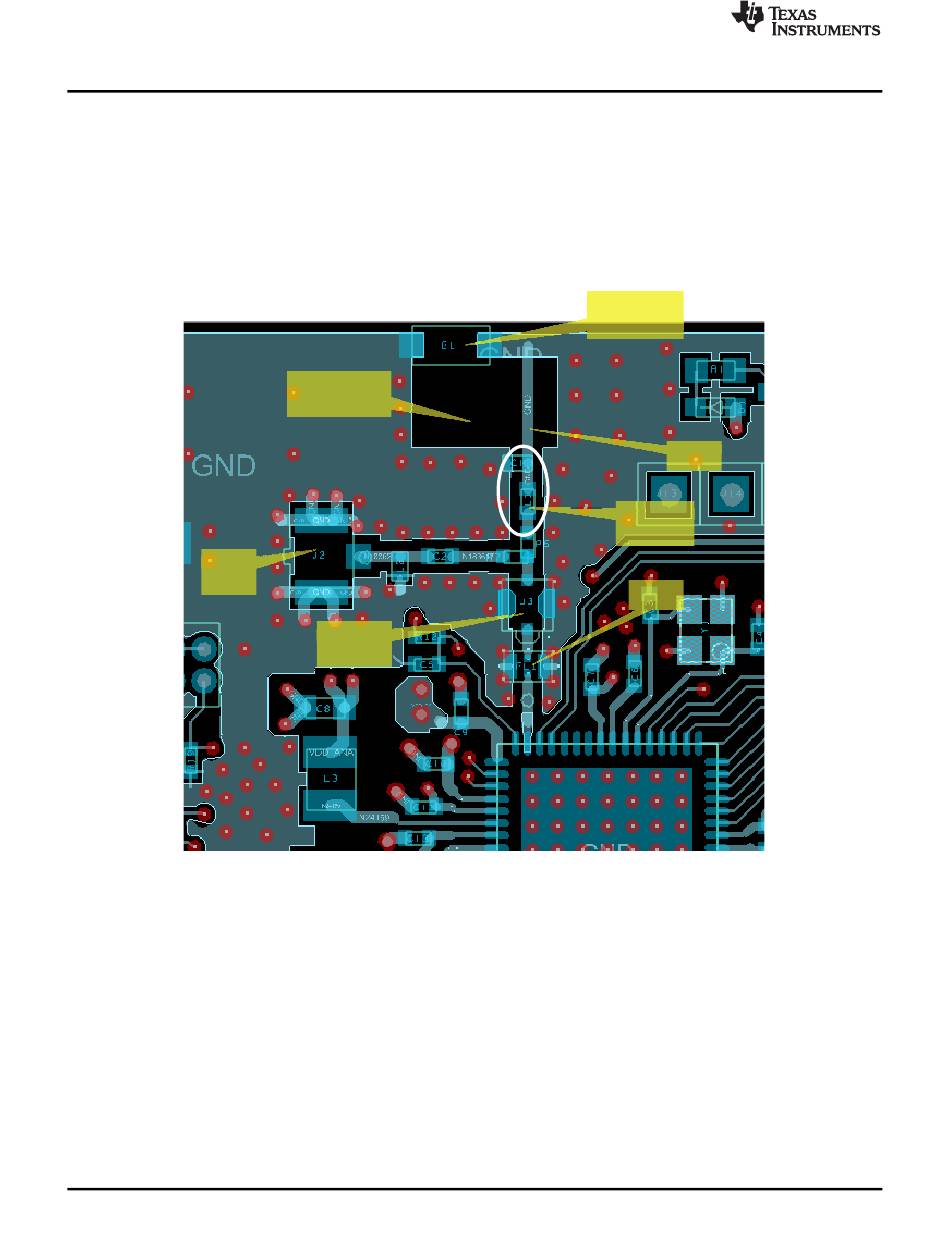

Figure 7. RF Section Layout
Void space
on all layers
Murata
Conn
®
and Internet of Things Solution
Copyright © 2014–2018, Texas Instruments Incorporated
Figure 7). It is very
Chip
Antenna
Feed
Antenna
match
Filter
SWRU370B – June 2014 – Revised August 2018
