Layout Information
4.2

Layer Information

4.2.1 Layer-1
Most of the routing is performed on Layer-1 to avoid vias on the board (see
are maximized for high-current pins and minimized for signal pins. For example, the signal pins can be
routed with 6 mils (4 mils, if possible) and the power pins with 12 mils and above.
8
CC3100 and CC3200 SimpleLink™ Wi-Fi
Layout Guidelines

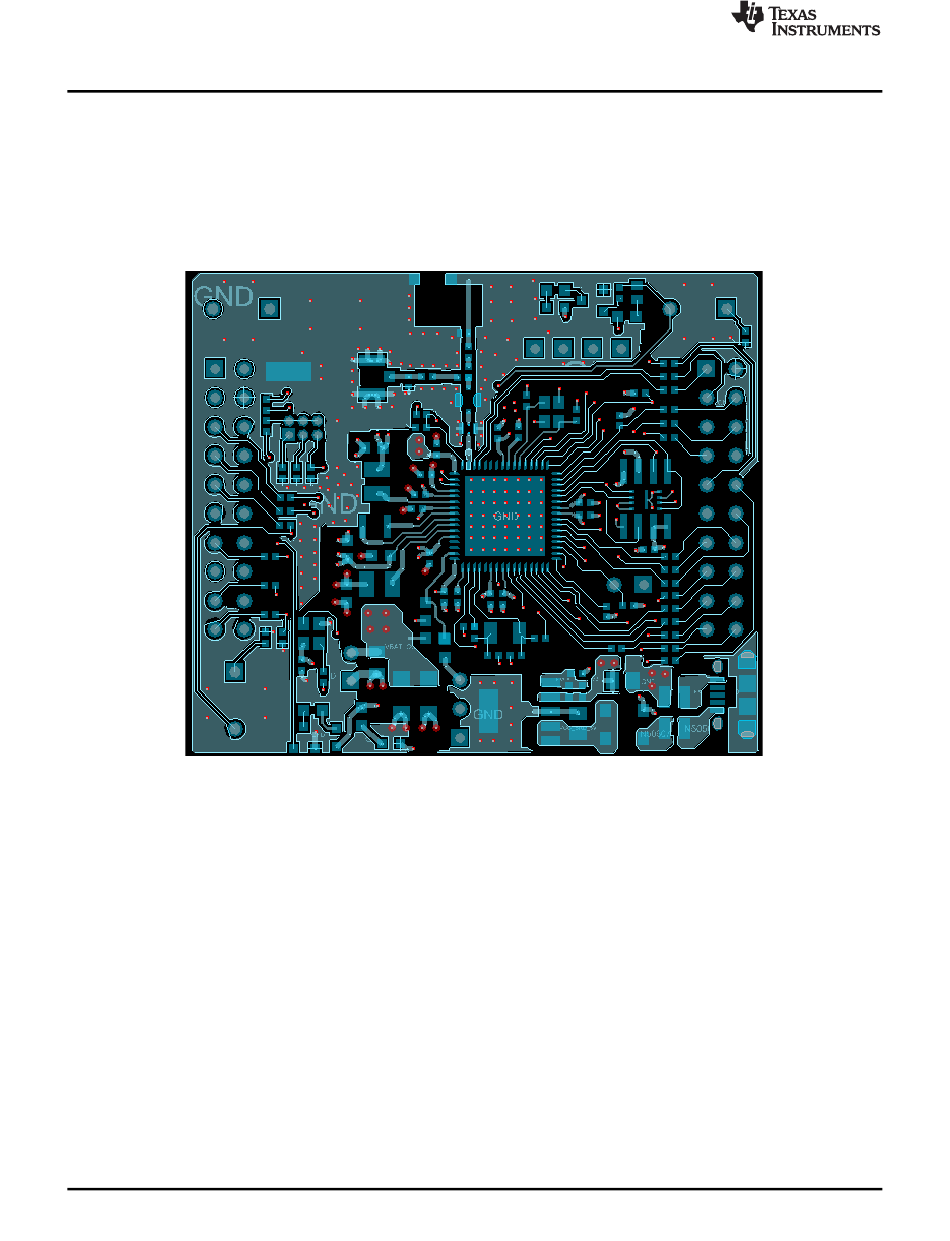

Figure 3. Layer-1
®
and Internet of Things Solution
Copyright © 2014–2018, Texas Instruments Incorporated
Figure 3). The trace widths
