Note: SIM_DATA has been pulled up with a 10KΩ resistor to SIM_VDD in module. A 100nF
capacitor on SIM_VDD is used to reduce interference. For more details of AT commands about
SIM, please refer to document [1].SIM_CLK is very important signal, the rise time and fall time
of SIM_CLK should be less than 40ns, otherwise the SIM card might not be initialized correctly.
If SIM_DET is used, a 10KΩ resistor is necessary to pulling up to the power VDD_EXT.
3.5.2

Recommended SIM Card Holder

It is recommended to use the 6-pin SIM socket such as C707 10M006 512 produced by Amphenol.
User can visit http://www.amphenol.com for more information about the holder.
Table 13: Amphenol SIM socket pin description
Pin Signal
C1 SIM_VDD
C2 SIM_RST
C3 SIM_CLK
C5 GND
C6 VPP
C7 SIM_DATA
SIM7000 _Hardware Design _V1.00

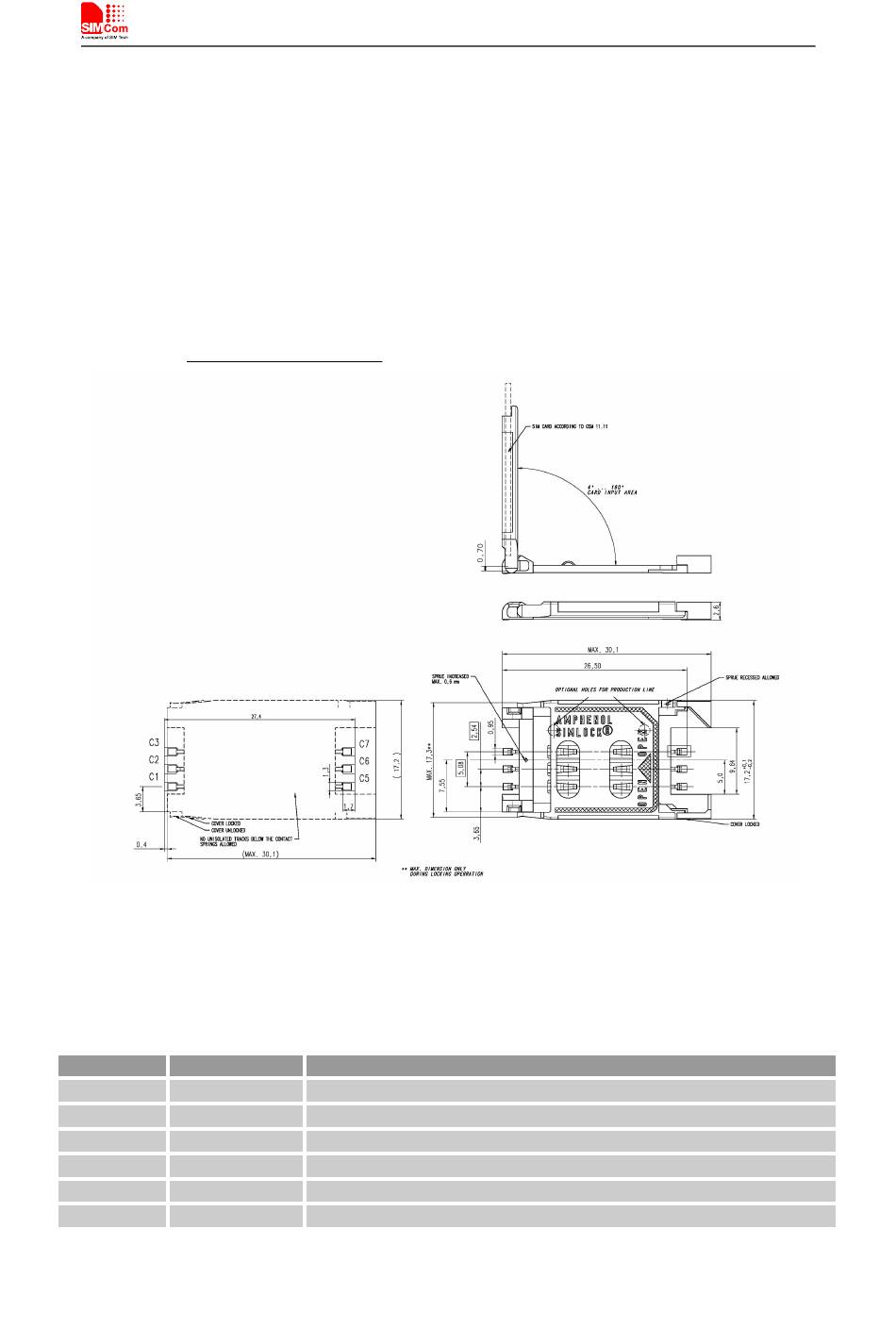

Figure 20: Amphenol SIM card socket
Description
SIM Card Power supply.
SIM Card Reset.
SIM Card Clock.
Connect to GND.
SIM Card data I/O.
