following figure.
Note: The value of the resistor named "R" depends on the LED characteristic.
Table 16: NETLIGHT pin status
NETLIGHT pin status
64ms ON, 800ms OFF
64ms ON, 3000ms OFF
64ms ON, 300ms OFF
OFF
Note: NETLIGHT output low level as "OFF", and high level as "ON".
3.9

Other interface

3.9.1

ADC

SIM7000 has a dedicated ADC pin. It is available for digitizing analog signals such as battery
voltage and so on. The electronic specifications are shown in the following table.
Table 17: ADC electronic characteristics
Characteristics
Resolution
Conversion time
SIM7000 _Hardware Design _V1.00

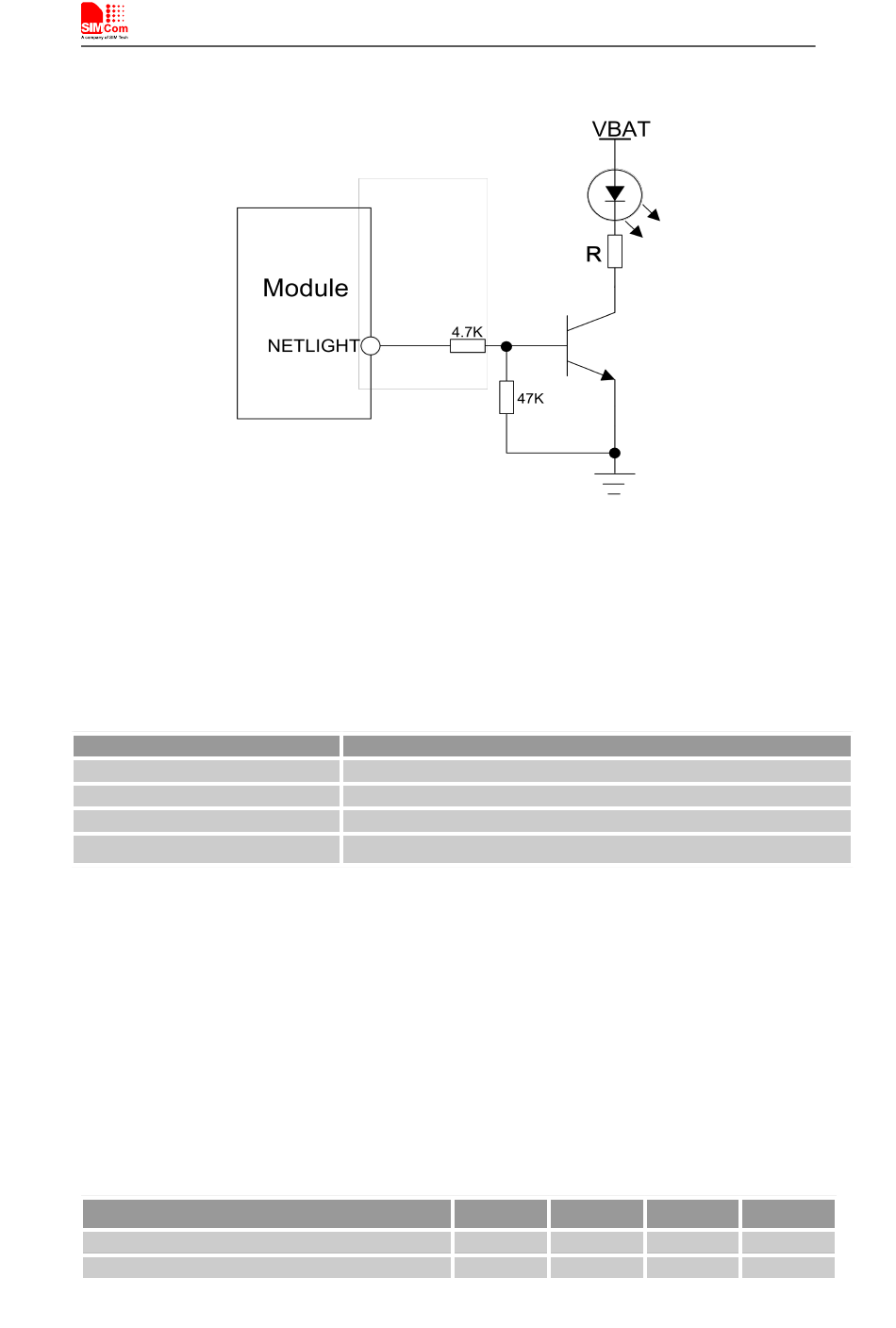

Figure 26: NETLIGHT reference circuit
Module status
No registered network
Registered network
Data transmit
Power off or PSM mode
Smart Machine Smart Decision
Min. Typ.
15
–
– 442
Max. Unit
Bits
–
ms
–
2017-05-23
