4.2 LTE CAT-M1 Antenna Design Guide
Users should connect antennas to SIM7000's antenna pads through micro-strip line or other types
of RF trace and the trace impedance must be controlled in 50Ω. SIMCom recommends that the
total insertion loss between the antenna pads and antennas should meet the following requirements:
Table 24: Trace loss
Frequency
700MHz-960MHz
1710MHz-2170MHz
2300MHz-2650MHz

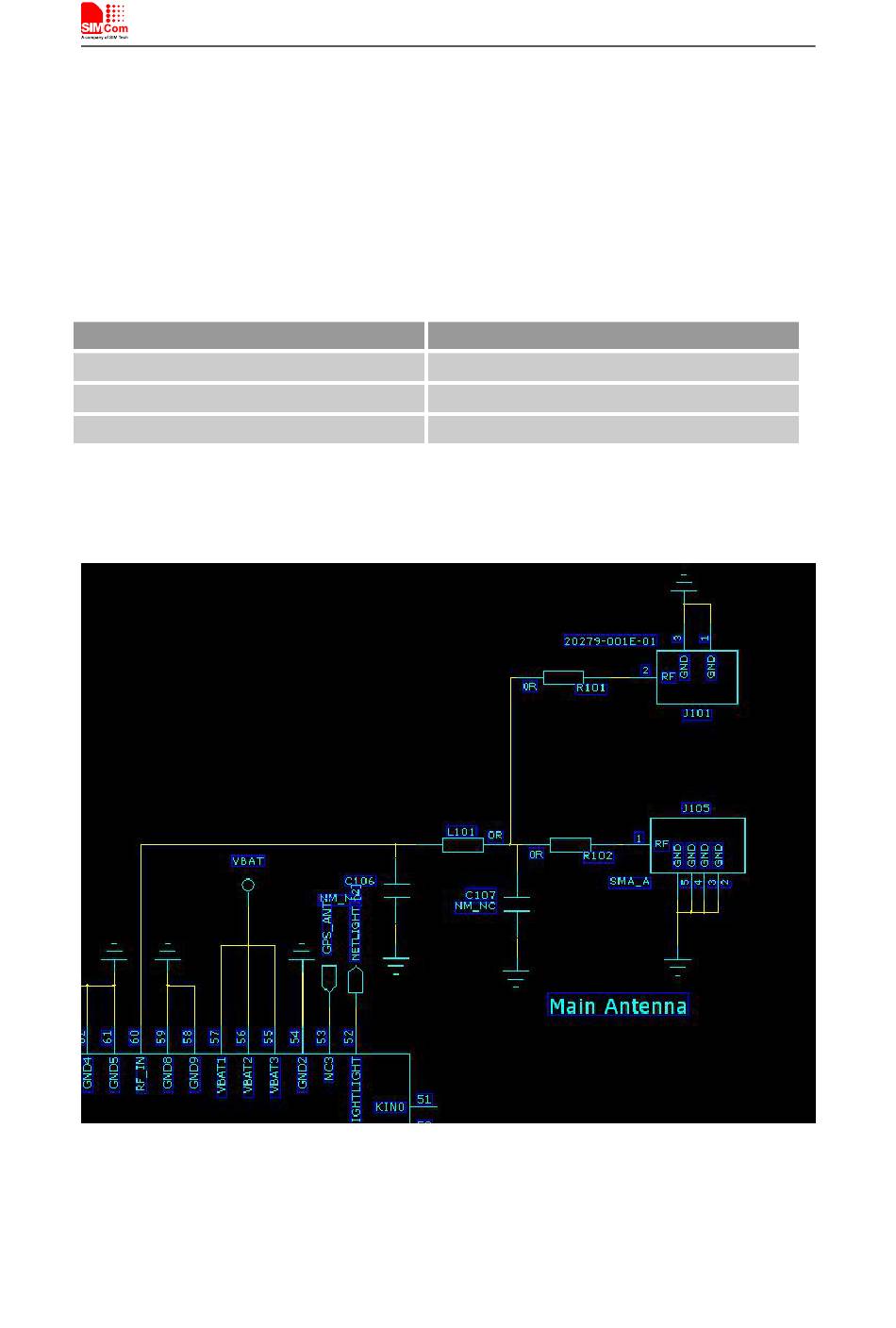

To facilitate the antenna tuning and certification test, a RF connector and an antenna matching
circuit should be added. The following figure is the recommended circuit.
SIM7000 _Hardware Design _V1.00
Smart Machine Smart Decision
Loss
<0.5dB
<0.9dB
<1.2dB
