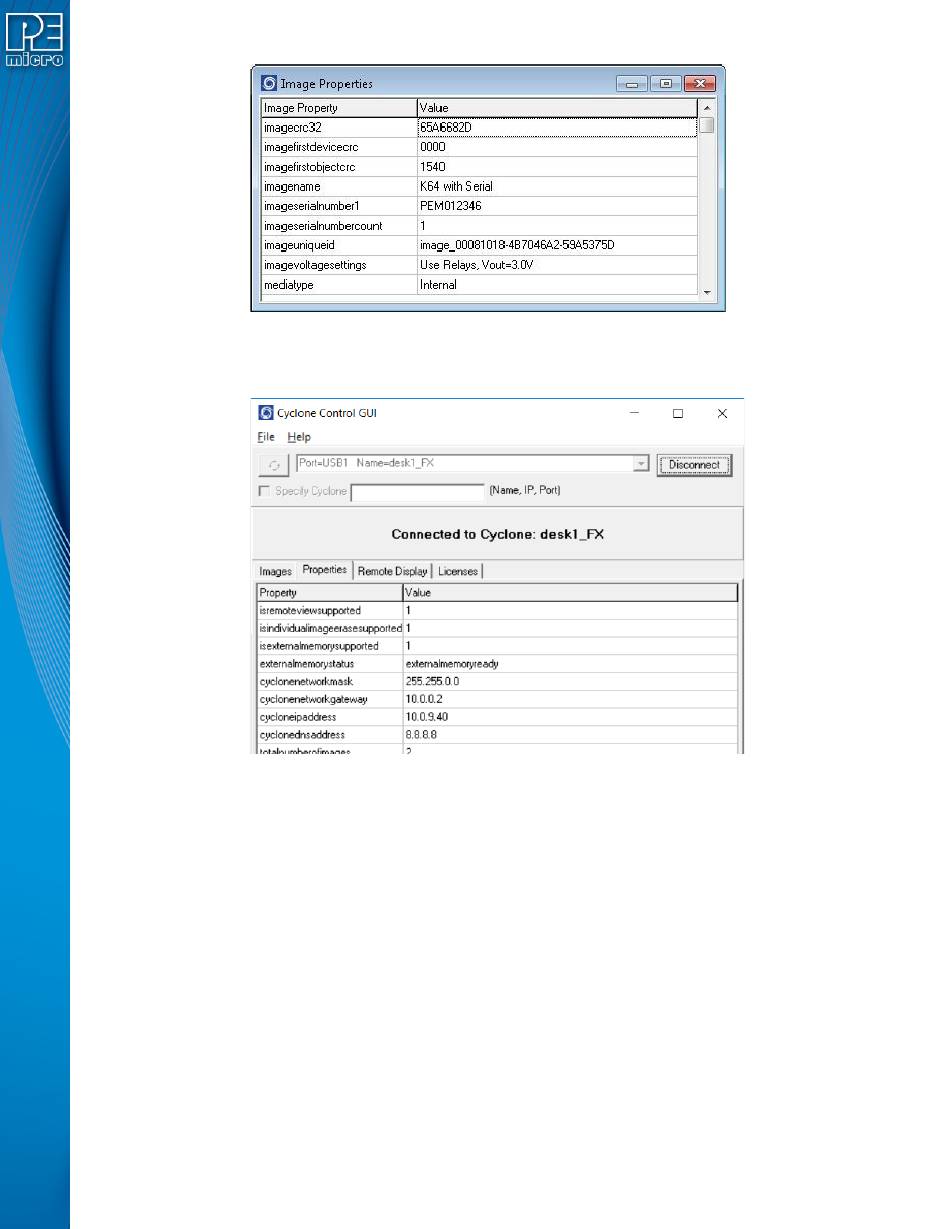

Figure 8-7: Example: Edit Image Serial Number
8.4.2.2 The Properties Tab
Figure 8-8: Properties Tab
The properties tab shows all the network, Cyclone and image properties. It also shows properties
for the supported features of the Cyclone. From this tab the Cyclone firmware and logic versions,
the cyclone type, and the number of images are available. Also from this tab some of the
properties can be modified.
Modifying a Cyclone property - Some properties in the Cyclone are modifiable. Only the properties
that can be modified will show three dots to the right of the property when the property is selected.
