The ColdFire adapter for Synchronous targets and ribbon cable for Asynchronous targets is
pictured below:

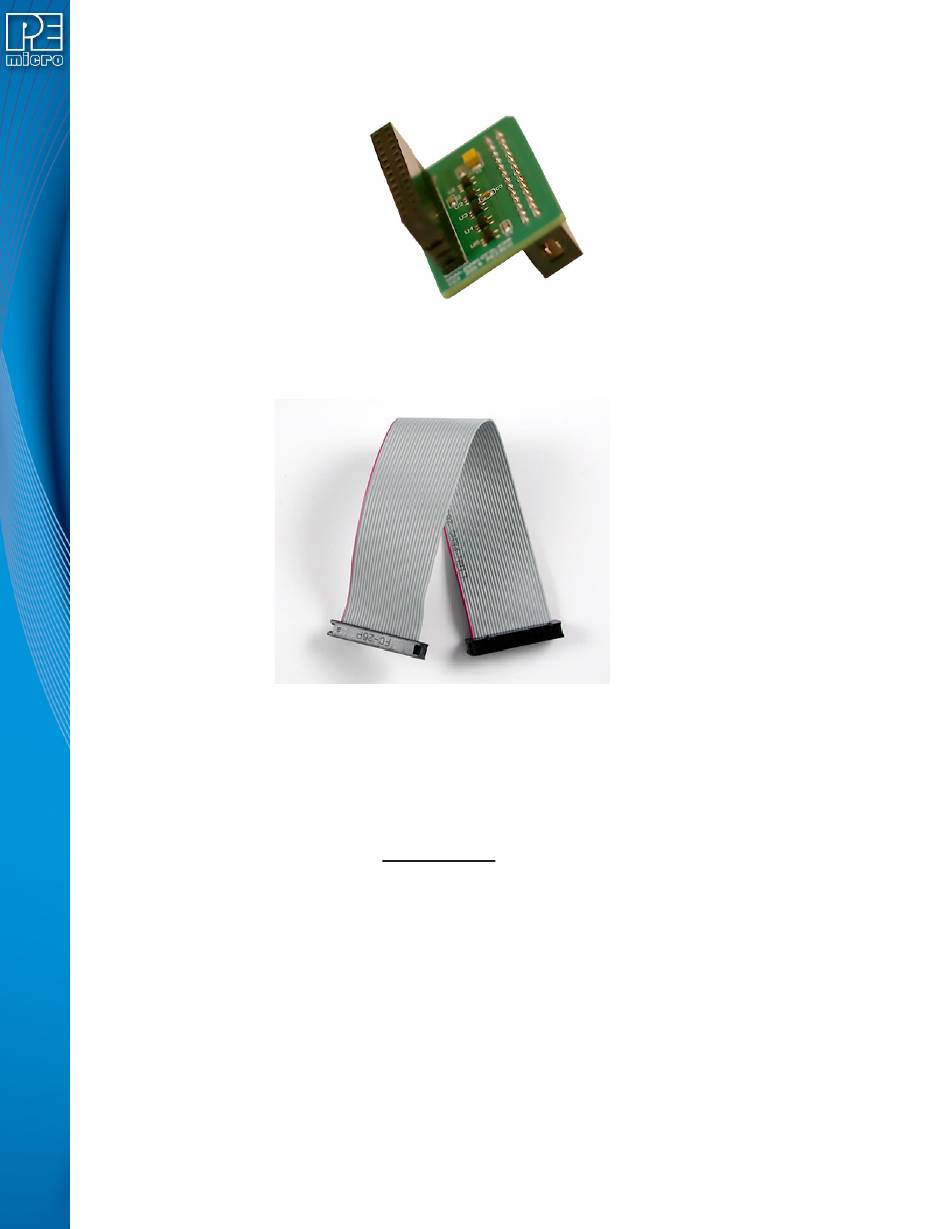

Figure 3-19: ColdFire Adapter (part# CABLE_CF_ADAPTER (Rev. B), for synchronous ColdFire
Figure 3-20: ColdFire Ribbon Cable (for asynchronous ColdFire targets, included with Cyclone)
3.19.5 PORT E: 16-Pin Debug Connector (MON08)
The Cyclone provides a 16-pin 0.100-inch pitch double row connector for MON08 targets. The
location of the this header is indicated as PORT E in Figure 3-5. The MON08 header adopts the
standard pin-out from MON08 debugging with some modifications. The general pin-out is as
follows:
*The pin is reserved for internal use within the PEmicro interface.
**The pin is reserved for internal use within the PEmicro interface only when using an MR8 target.
3.19.6 PORT F: 6-Pin Debug Connector (RS08, HCS08, HC(S)12(X), S12Z, ColdFire +/V1, STM8 w/
User Manual For CYCLONE
targets, sold separately)
MON08 Signals
PIN 1 - NC* GND
PIN 3 - NC** RST
PIN 5 - NC* IRQ
PIN 7 - NC* MON4
PIN 9 - NC* MON5
PIN11 - NC* MON6
PIN13 - OSC MON7
PIN15 - Vout MON8
FX Programmers
- PIN 2
- PIN 4
- PIN 6
- PIN 8
- PIN10
- PIN12
- PIN14
- PIN16
