*The pin is reserved for internal use within the PEmicro interface.
3.19.3.1 BERG14-to-MICTOR38 Optional Connector
PEmicro offers a 14-pin BERG to 38-pin MICTOR adapter, sold separately, that may be used on
Port C of the CYCLONE FX. The PEmicro part number is BERG14-TO-MICTOR38.
3.19.4 PORT D: 26-Pin Debug Connector (ColdFire V2/3/4)
The Cyclone provides a standard 26-pin 0.100-inch pitch dual row 0.025-inch square header for
ColdFire MCF52xx/53xx/54xx family of microprocessors. This port connects to the target hardware
using either the ColdFire extension cable for synchronous ColdFire targets such as MCF5272 &
MCF5206E (PEmicro part# CABLE-CF-ADAPTER, sold separately), or a standard 26-pin ribbon
cable for asynchronous ColdFire targets (included). Please refer to each processor's user manual
to identify whether it is a synchronous or asynchronous interface. The location of the this header is
indicated as PORT D in Figure 3-5.
*The pin is reserved for internal use within the PEmicro interface.
User Manual For CYCLONE
DSC Pinout
TDI 1 2
TDO 3 4
TCK 5 6
NC 7 8
RESET 9 10
VDD 11 12
NC* 13 14

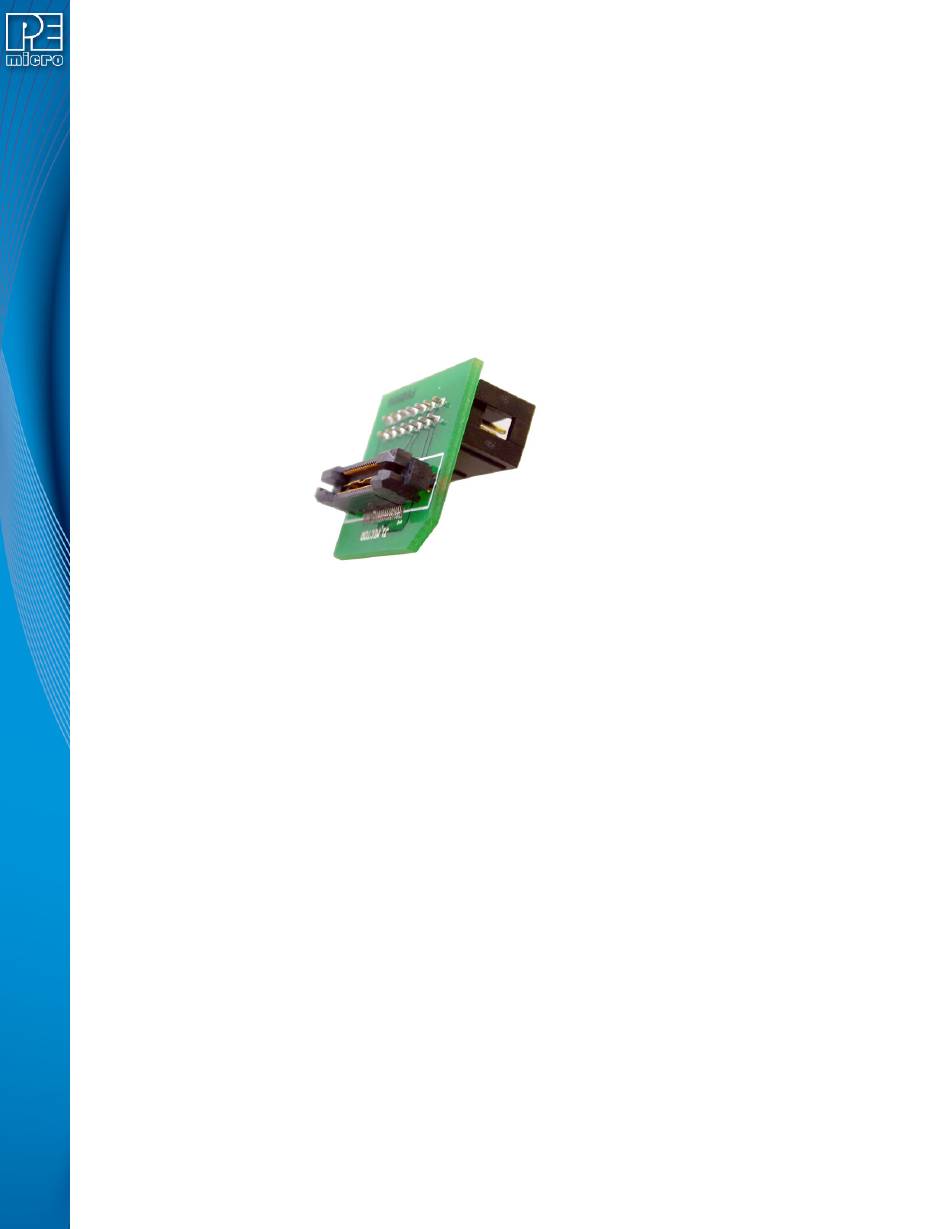

Figure 3-18: BERG14-TO-MICTOR38 Adapter (Sold Separately)
ColdFire V2/3/4 Pinout
N/C 1 2
GND 3 4
GND 5 6
RESET 7 8
VCC 9 10
GND 11 12
PST2 13 14
PST0 15 16
DDATA2 17 18
DDATA0 19 20
N/C 21 22
GND 23 24
VCC 25 26
FX Programmers
GND
GND
GND
NC/KEY
TMS
GND
TRST
BKPT
DSCLK
NC*
DSI
DSO
PST3
PST1
DDATA3
DDATA1
GND
N/C
CLK
TEA
