**For a complete index of PEmicro-supported ARM Cortex devices, please view pemicro.com/
arm.
The user may select the CPU Manufacturer from the drop-down list:

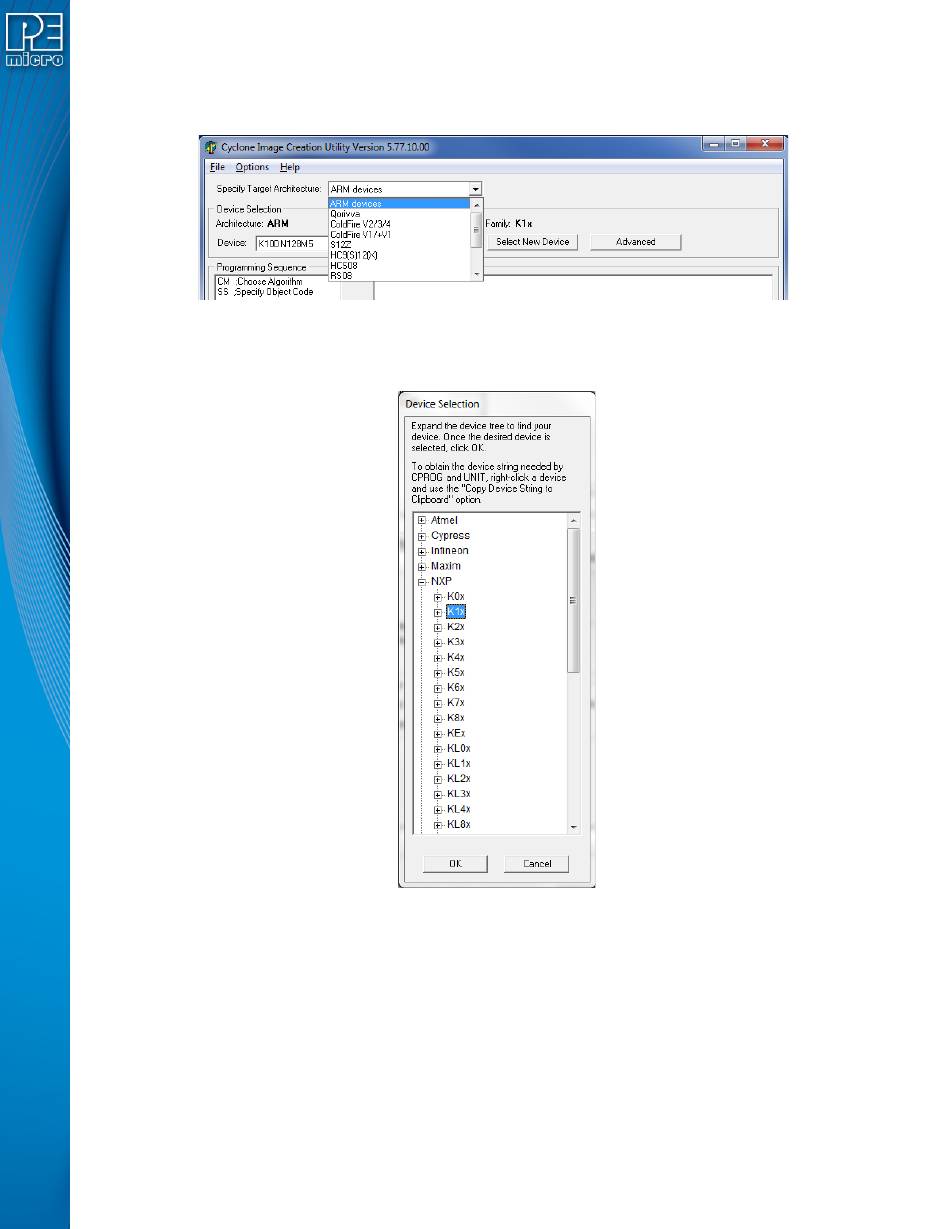

Figure 6-2: CPU Manufacturer Selection
The user may select the appropriate target architecture by clicking on "Select New Device." A
Device Selection window will appear.
Figure 6-3: Device Selection
6.1.1.1 Security Settings - MPC55xx-57xx Only
If you selected MPC55xx-57xx, the Cyclone Image Creation Utility will display an area called
Security Settings (see Figure 6-4). If your Qorivva device supports uncensoring, click the "Device
supports uncensoring" checkbox and select the appropriate bit depth for the device's password
(64-bit or 256-bit). The box to the right is where the password must be entered. Optionally you may
use the Browse button to navigate to a text file that contains the correct password for the device.
The contents of the text file that you select will automatically be used to fill the password text box.
