11.6.1.6 Press the DO TEST button to test Sample(ascii) characters against all tests.
When developing Barcode tests, it is necessary to frequently test to assure that the tests being
generated corrects select the appropriate standalone programming (SAP) image. Clicking on the
DO TEST button, as shown in the Figure 11-19 control area of this program, causes the
CharTest(TYPE): and both Range tests to be run if they exist.

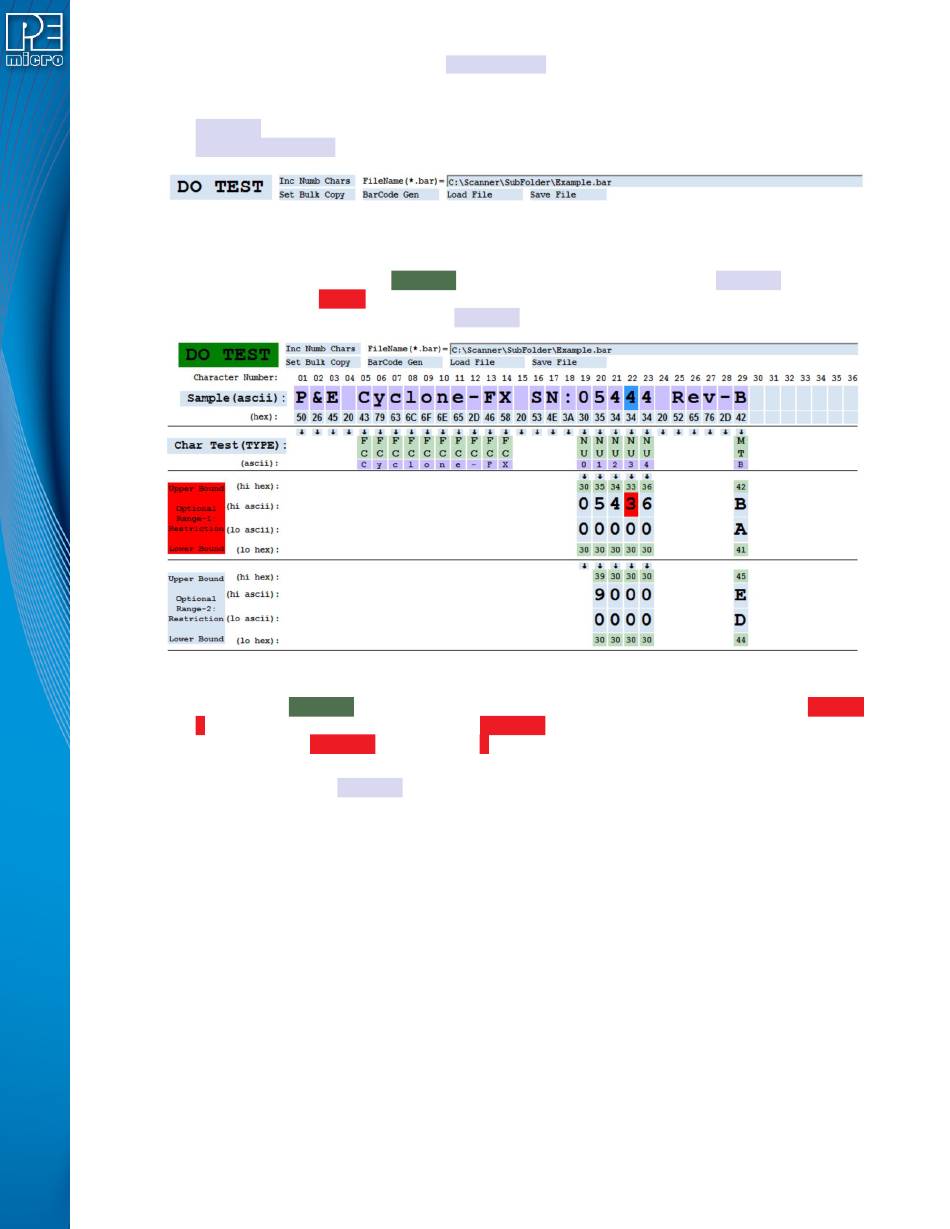

Figure 11-19: Program Control Area
To pass the test, the Char Test and at least one of the Range tests must pass. If the test passed,
the, the background color of DO TEST is changed to green. It is possible for DO TEST to be green
even if one of the Range tests is red. Shown in Figure 2.6b is the result of changing the numeric
characters to "05444" and clicking on DO TEST Button.
Figure 11-20: Passed Test with only One Range Test Passed
Note that the DO TEST button is green indicating that the test passed. Also, note that the Range-
1 button is red which means that that the Range-1 test failed but didn't cause the overall test to
fail. Additionally, Range-1 character 22, "3", failed the upper bound test. See Section 4. On how
Range Tests are conducted.
In Figure 11-20, the Range-2 test passed since when the first character tested (character 20, "5")
was greater than the lower bound ("0") and less than the upper bound ("9").
Shown in Figure 11-21 is a test of a slightly different sample which failed on many things.
