3 HARDWARE
CYCLONE
FX
The following is an overview of the features and interfaces of the CYCLONE
Many of these interfaces are labeled on the underside of the plastic case.
3.1

Touchscreen LCD

The LCD Touchscreen displays information about the Cyclone's configuration and the
programming process, and also allows the user to navigate the Cyclone's menus. The location of
the Touchscreen LCD is shown in Figure 3-1.
3.2

LED Indicators

The LED indicators for Error or Success will illuminate depending on the results of the
programming process and provide a clear visual indication of the results. The location of the LED
Indicators is shown in Figure 3-1.
3.3

Start Button

The Start Button can be used to begin the programming process manually, provided that the
Cyclone is properly configured. The location of the Start Button is shown in Figure 3-1.
3.4

Access Panel

The Access Panel can easily be opened to allow the user to connect/disconnect ribbon cables
from the headers, or to configure the Cyclone's Power Jumpers to select one of the available
Power Management setups. The location of the Access Panel is shown in Figure 3-1; a layout of
the headers and jumpers beneath the Access Panel is shown in Figure 3-5.
User Manual For CYCLONE

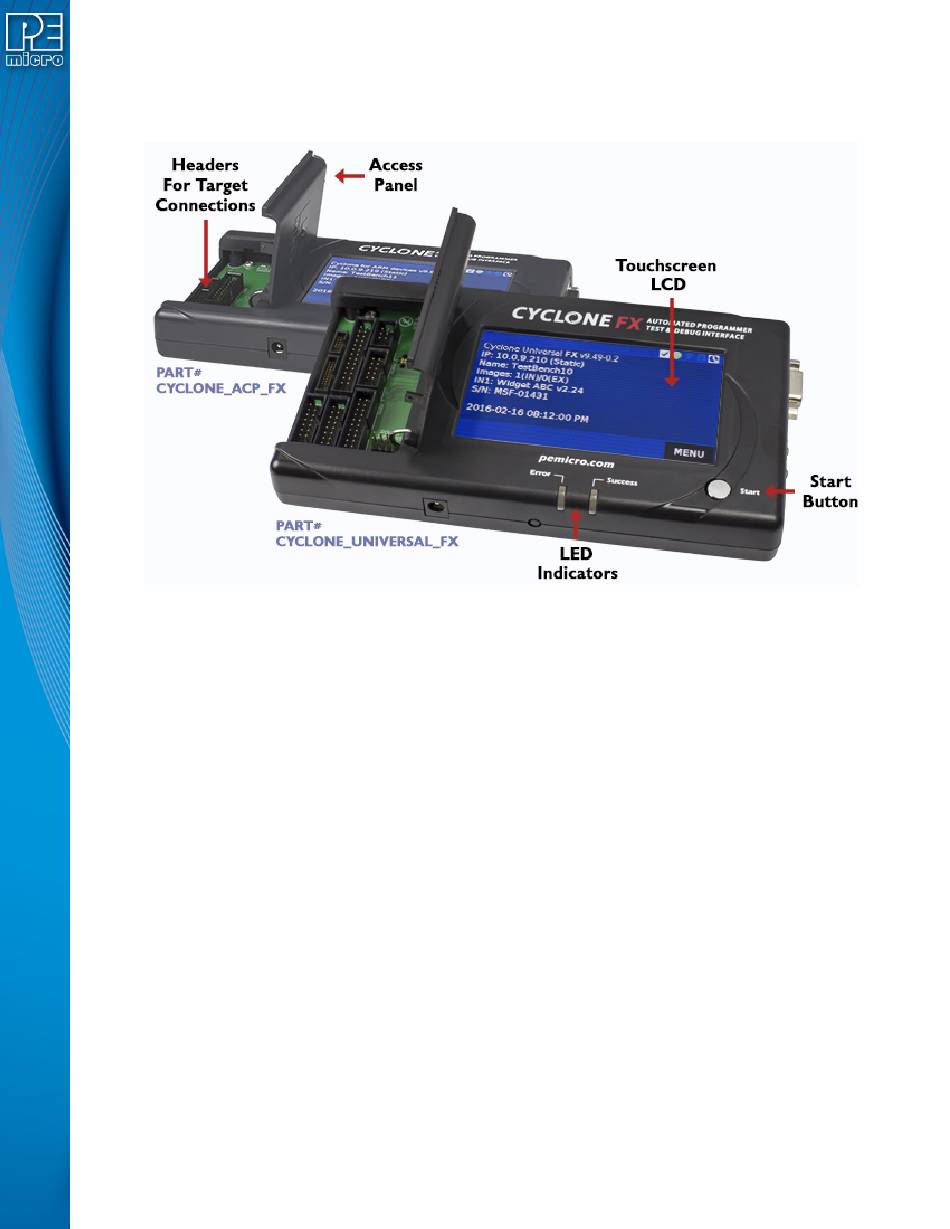

Figure 3-1: CYCLONE
FX Programmers
FX Top View
FX programmers.
