Cyclone System Power

The CYCLONE
2.5/5.5mm female plug. Cyclones derive power from the Power Jack located on the right end of the
unit. The location of Cyclone System Power is shown in Figure 3-2.
3.6

RS232 Communication (Serial Port)

The CYCLONE
through the RS232 communication (115200 Baud, 8 Data bits, No parity, 1 Stop bit). The location
of the Serial Port is shown in Figure 3-2.
3.7

Ethernet Communication

The CYCLONE
through the Ethernet Port (10/100 BaseT). The location of the Ethernet Port is shown in Figure 3-
2.
3.8

USB Communications

The CYCLONE
the Cyclone and the host computer. The CYCLONE
The location of the USB Port is shown in Figure 3-2.
3.9

Electromechanical Relays

Inside the CYCLONE
power. The specifications of the relays are as following:
Maximum switched power: 30W or 125 VA
Maximum switched current: 1A
Maximum switched voltage: 150VDC or 300VAC
PEmicro only recommends switching DC voltages up to 24 Volts.
User Manual For CYCLONE

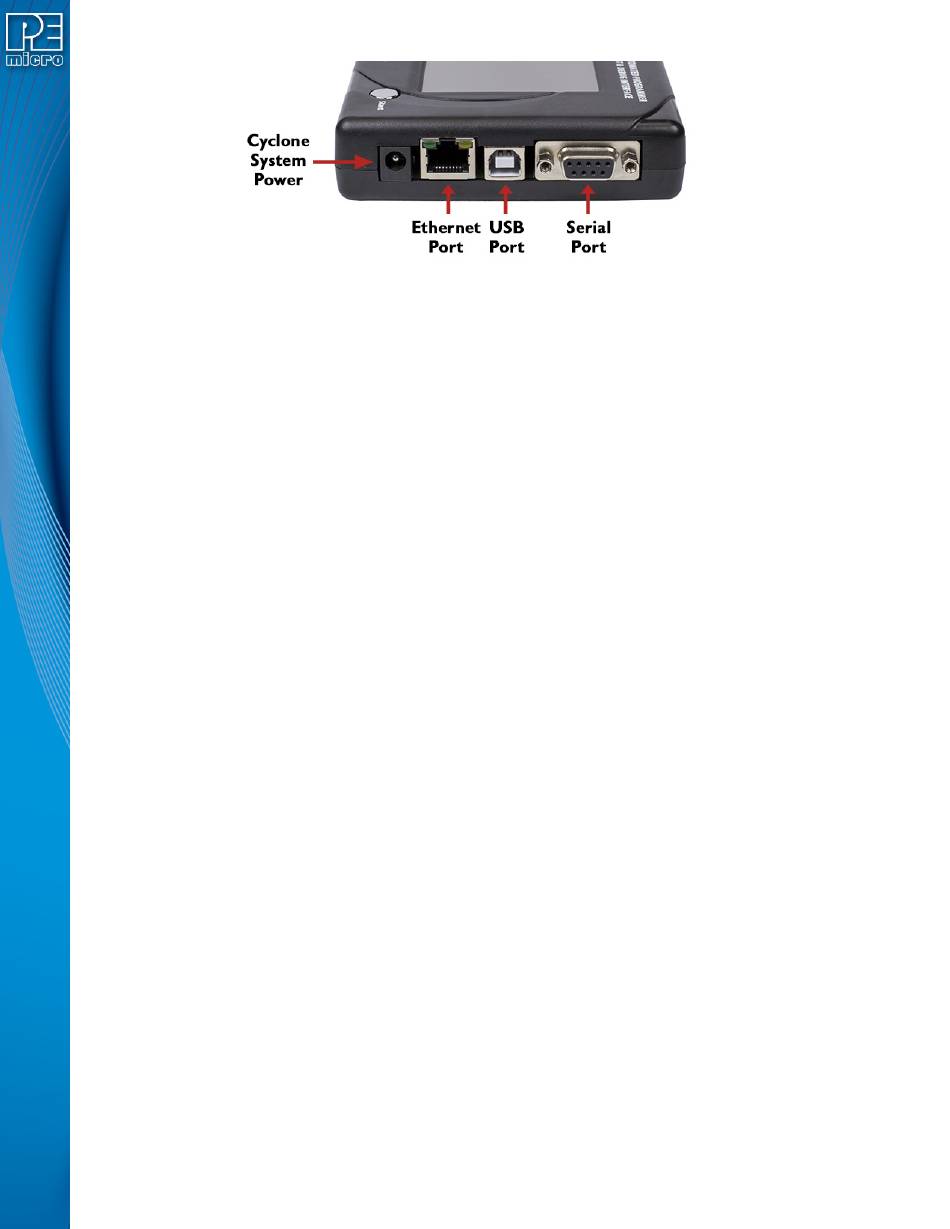

Figure 3-2: CYCLONE
FX programmer requires a regulated 6V DC Center Positive power supply with
FX provides a DB9 Female connector to communicate with a host computer
FX provides a standard RJ45 socket to communicate with a host computer
FX provides a USB connector for Universal Serial Bus communications between
FX programmer, two electromechanical relays are used to cycle target
UL Rating: 1A at 30 VDC
1A at 125 VAC
FX Programmers
FX Right Side View
FX is a USB 2.0 Full-Speed compliant device.
6
