adapter)
The Cyclone provides a standard 6-pin 0.100-inch pitch dual row 0.025-inch square header for
ColdFire V1, S12Z, 68(S)12(X), 68HCS08, RS08, and STMicroelectronics' STM8 targets. The
location of the this header is indicated as PORT F in Figure 3-5. The header uses the NXP
standard pin configuration, listed here for reference:
ColdFire V1, 68(S)12(X), 68HCS08, and RS08 Signals
*The pin is reserved for internal use within the PEmicro interface.
** All the signals are direct connect except the SWIM line which requires a 680 Ohm pull-up
PEmicro also offers a separate STM8 adapter (part# CU-CUFX-STM8-ADPT) that can be plugged
into the 6-pin header of the Cyclone (see Figure 3-21). The adapter offers 4 pins signals from an
ERNI connector.

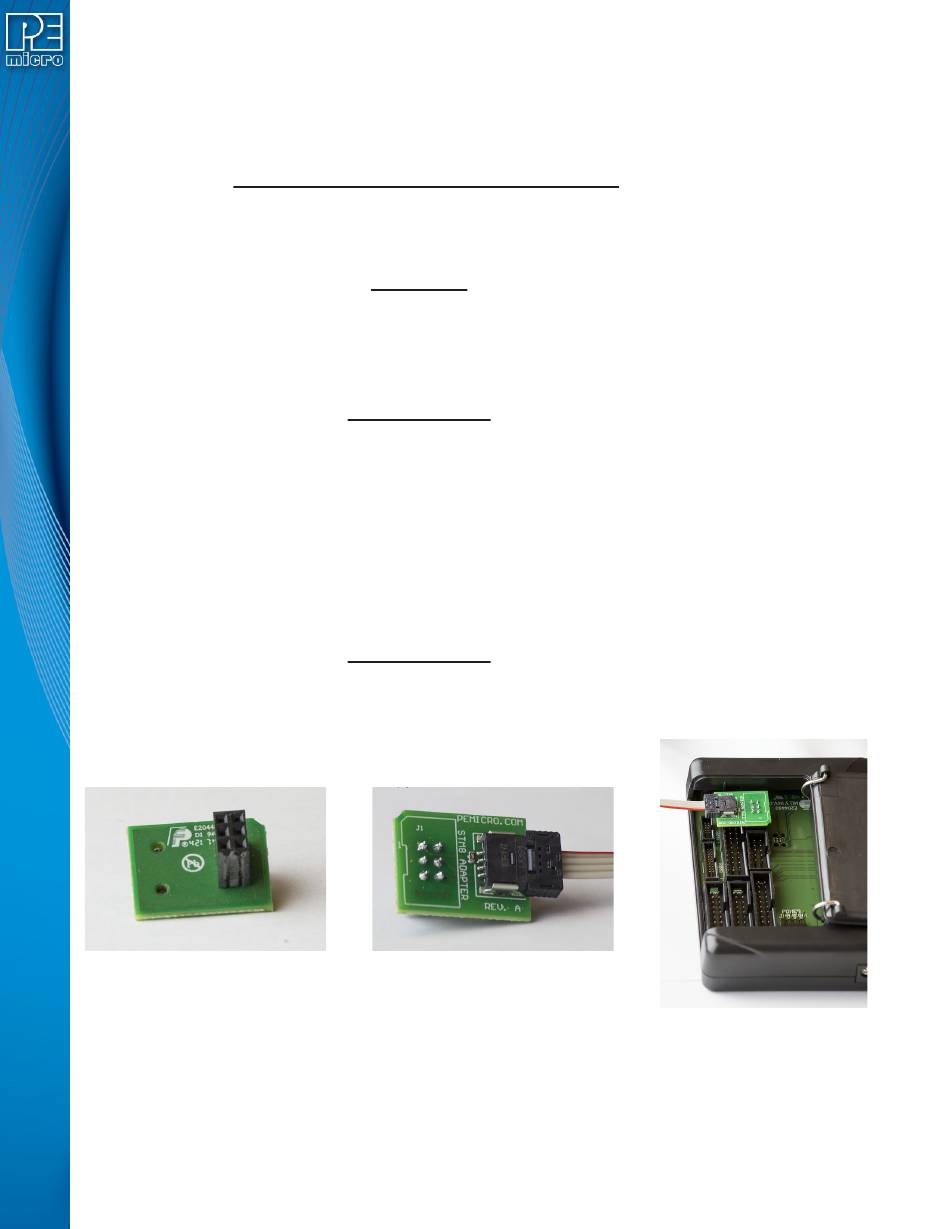

Figure 3-21: STM8 Adapter: 1) Bottom, 2) Top, 3) Connected To 6-Pin Header of
3.19.7 PORT G: 10-Pin Debug Connector (Power MPC5xx/8xx)
The Cyclone provides a standard 10-pin 0.100-inch pitch dual row 0.025-inch square header for
Power MPC5xx/8xx BDM targets. The location of the this header is indicated as PORT G in Figure
User Manual For CYCLONE
PIN 1 - BKGD
PIN 3 - NC
PIN 5 - NC
S12Z Signals
Note:* indicates optional signal
PIN 1 - BKGD
PIN 3 - PDO*
PIN 5 - PDOCLK*
6-Pin STM8 Signals
PIN 1 -SWIM**
PIN 3 - NC*
PIN 5 - NC*
4-Pin STM8 Signals
(Requires STM8 Adapter, sold separately)
PIN 1 - TVCC
PIN 3 - GND
Cyclone_Universal_FX (Adapter Sold Separately)
FX Programmers
GND - PIN 2
RESET - PIN 4
TVCC - PIN 6
GND - PIN 2
RESET - PIN 4
TVCC - PIN 6
GND - PIN 2
RESET - PIN 4
TVCC - PIN 6
SWIM - PIN 2
RESET - PIN 4
