Internal Database

5.1

Creation of Test Structures

A complete test structure with data regard-
ing customers and devices under test be
created in the test instrument. This structure
makes it possible to assign single measure-
ments or test sequences to test objects
belonging to various customers. Manual sin-
gle measurements can be grouped together
into a so-called "manual sequence".
A complete description of database creation is
included in the full operating instructions for
your test instrument.
5.2 Export – Transmission and Storage of
Test Structures and Measurement Data
Structures set up in, and measurement data
saved to the test instrument can be imported
to the IZYTRONIQ report generating software
via a plugged-in USB stick (PRO and/or Fea-
ture KB01 only) or via the USB slave port.
Data can then be saved to the PC and
reports can be generated.
Note!
Data transfer to IZYTRONIQ should not
be started during single measure-
ments or test sequences.
Furthermore, you can save the database to
a plugged-in USB stick for subsequent
restoring to the device memory.
5.3

Import (PRO and/or Feature KB01 only)

The test structures created at the PC with
the help of the report generating software
can be loaded into the test instrument via an
USB stick or via the USB slave port.
Switch between
PRINT
key and display field
Exit entry function
without saving
Scroll up
HELP
Scroll down
Transfer char. at cursor
position to display field
GMC-I Messtechnik GmbH
& SECULIFE ST
RO
Example Softkey Entries
ESC
MEM
(25)
BASE
6

Data Input

6.1

Keyboard or Softkey Entries

After selecting ID or any other object param-
eter, a keyboard is displayed which allows
for the entry of alphanumeric characters via
the fixed function keys and the softkeys.
Alternatively, entries can also be made with
the help of a USB keyboard or barcode
scanner which is connected to the instru-
ment.
Procedure
(example: entering a DUT designation)
1 Switch the keyboard to uppercase, low-
ercase or special characters with the abc
key (Abc, ABC, Symb).
2 Select the desired alphanumeric charac-
ter or a line break with the scroll keys
(left, right, up and down).
The selection cursor can be accelerated
by pressing and holding the respective
scroll key.
3 After pressing the
tive character appears in the display
field.
4 Repeat steps 1 through 3 until the com-
plete designation is shown in the display
field.
5 After pressing the green check-
mark, the selected character string
is saved.
6.2 Entry via Touch Keyboard (SECUTEST
PRO and/or Feature E01 only)
The touch-screen allows for the convenient
entry of data and comments, parameters
and direct parameter selection.

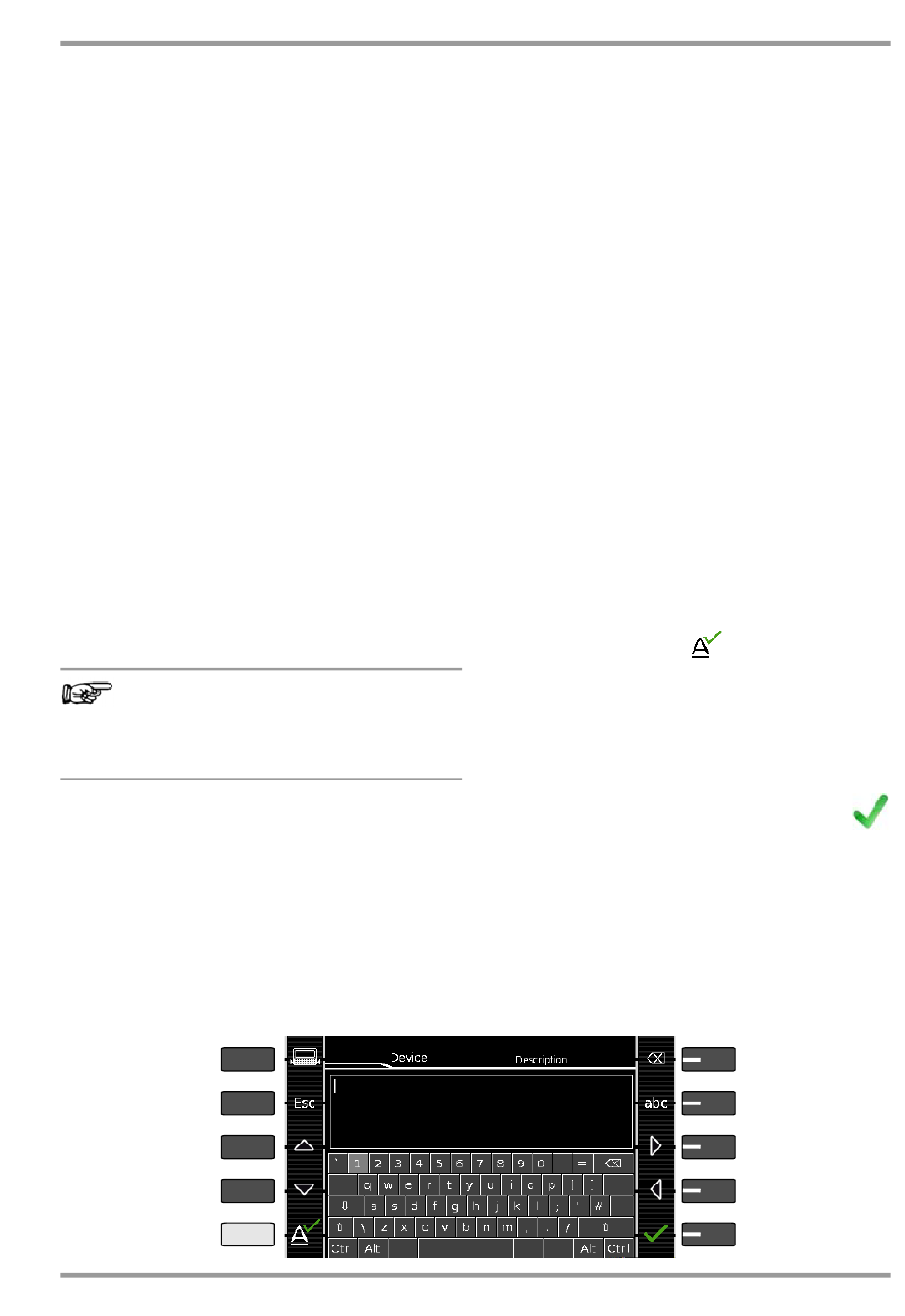

Display Field
Key Field
Database – Keyboard
key, the respec-
Delete characters
from right
Toggling: uppercase,
lowercase, special char.
Scroll right
Scroll left
Accept entry
