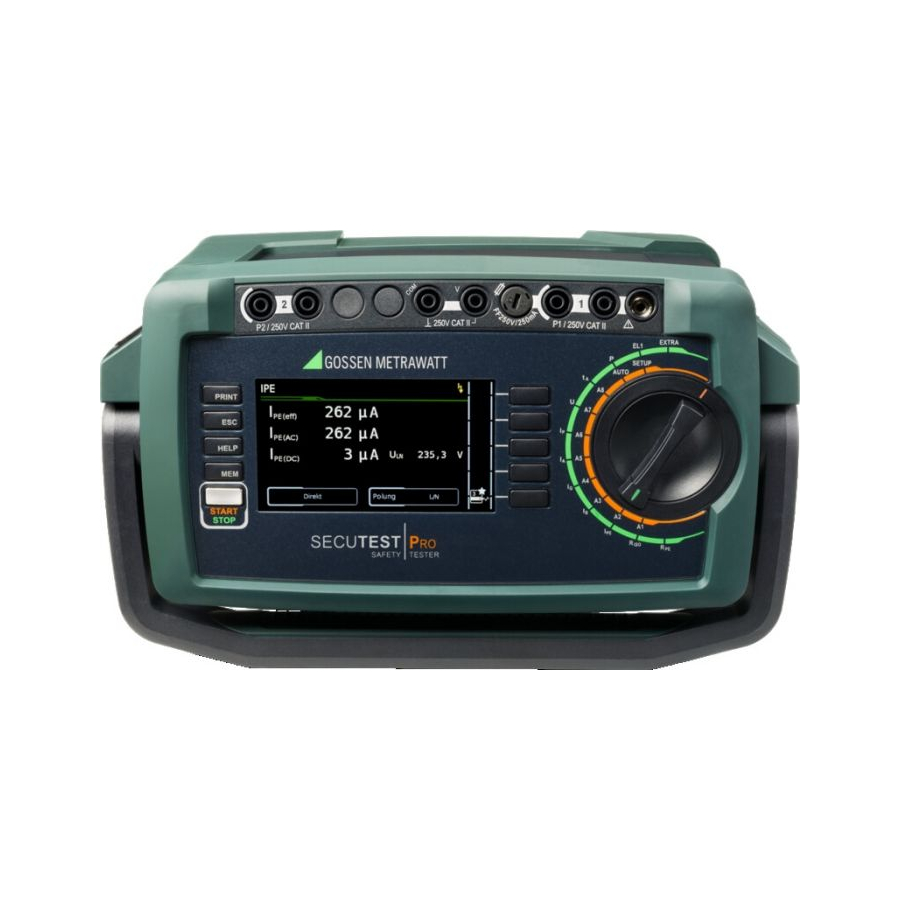

Gossen MetraWatt SECUTEST PRO Manual

Test instruments for measuring the electrical safety of devices
Hide thumbs Also See for SECUTEST PRO:
Table of Contents

Advertisement

Quick Links

Operating Instructions
B
P
10
SECUTEST
(
) and
ASE
RO
Test Instruments for Measuring the Electrical Safety of Devices
3-349-752-03
per VDE 0701-0702, IEC 62353 and IEC 60974-4
5/5.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SECUTEST PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gossen MetraWatt SECUTEST PRO

Summary of Contents for Gossen MetraWatt SECUTEST PRO

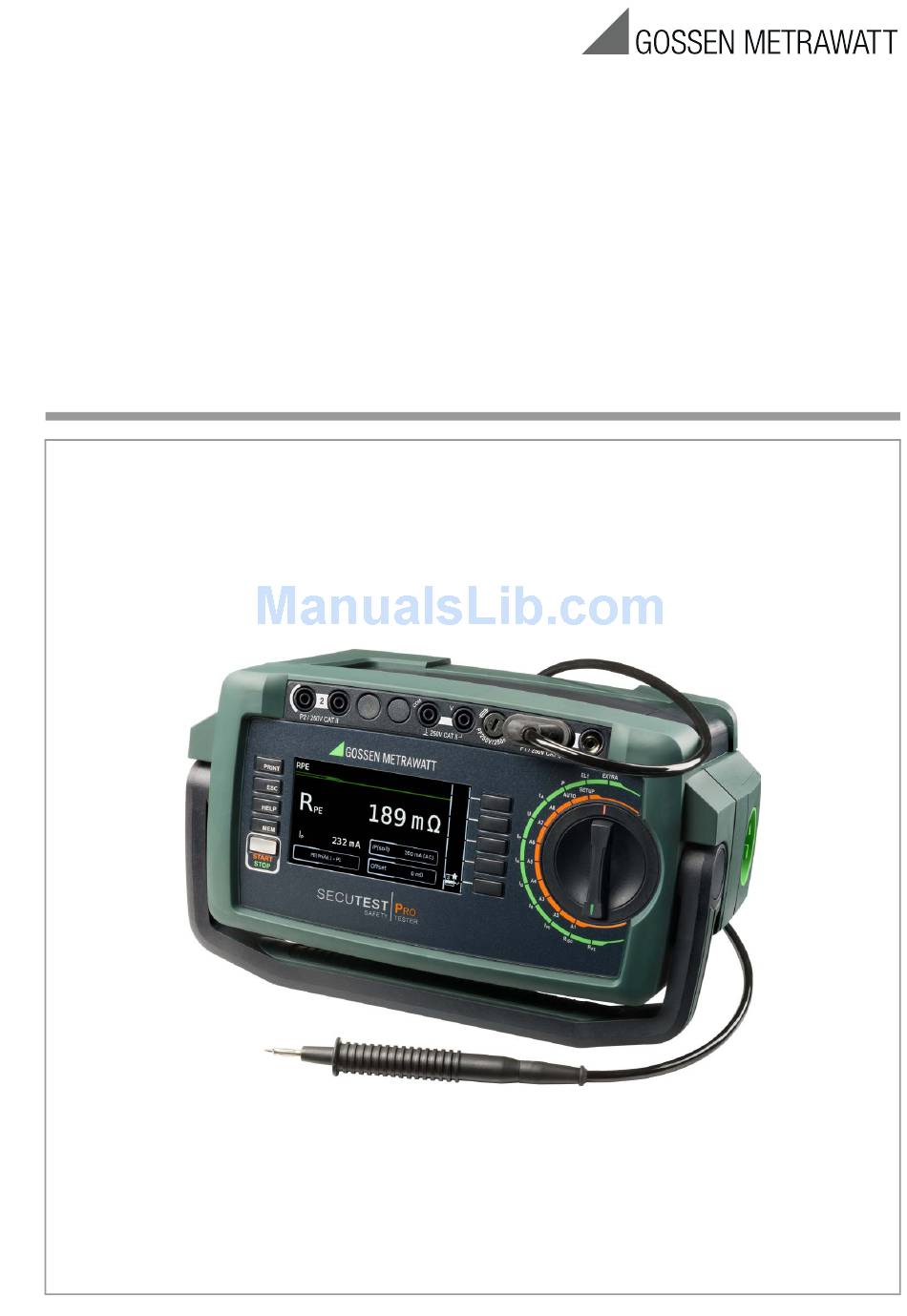

  • Page 1 Operating Instructions SECUTEST ) and Test Instruments for Measuring the Electrical Safety of Devices 3-349-752-03 per VDE 0701-0702, IEC 62353 and IEC 60974-4 5/5.15...
