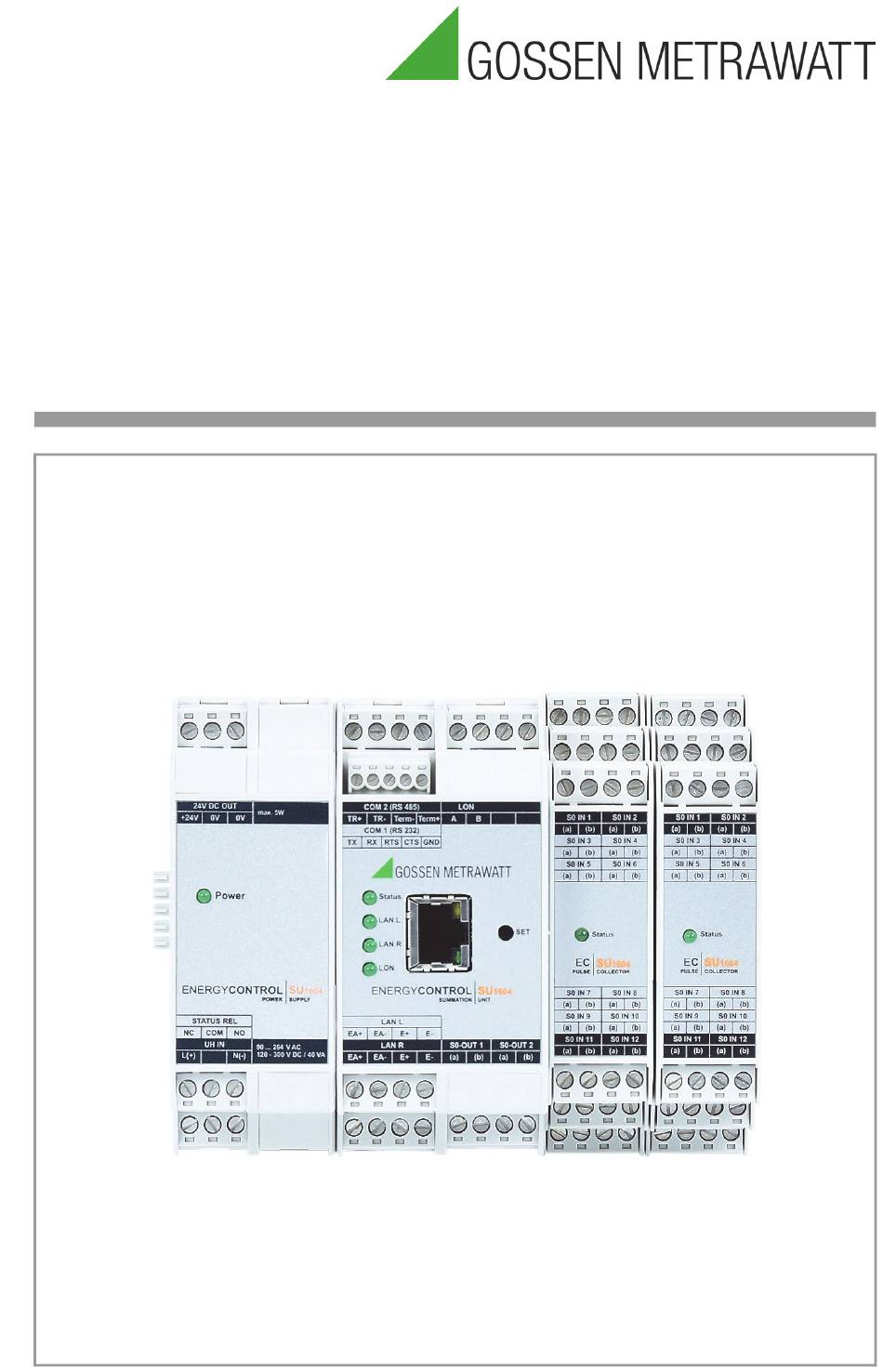

Operating Instructions
ENERGYCONTROL SU1604
3-447-004-03
Summator
4/12.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENERGYCONTROL SU1604 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gossen MetraWatt ENERGYCONTROL SU1604

Summary of Contents for Gossen MetraWatt ENERGYCONTROL SU1604

  • Page 1 Operating Instructions ENERGYCONTROL SU1604 3-447-004-03 Summator 4/12.22...
  • Page 2 Scope of delivery, SU1614 1 U1614 power pack module 2 ME 17.5 T-bus mounting rail connector 1 Condensed operating instructions Scope of delivery, SU1624 1 U1624 pulse recording module 1 ME 22.5 T-bus mounting rail connector 1 Condensed operating instructions Gossen Metrawatt GmbH...

  • Page 3: Table Of Contents

    Basic Software Configuration........53 Gossen Metrawatt GmbH...
  • Page 4 Index............82 Gossen Metrawatt GmbH...

  • Page 5: Safety Instructions

    If replacement of the fuse should become necessary, for which the housing must be opened, all terminals must first be disconnected! • The TBUS may only be used to connect ECS components – any combination with non-system devices with similar backplane connection is impermissible. Gossen Metrawatt GmbH...

  • Page 6: Applications

    Liability and Guarantee Gossen Metrawatt GmbH assumes no liability for property damage, personal injury or consequential damage resulting from improper or incorrect use of the product, in partic- ular due to failure to observe the product documentation. Furthermore, all guarantee claims are rendered null and void in such cases.

  • Page 7: Introduction

    Max. 38.4 kBd ✔ COM-2 (RS 232) /✔/✔ (✔) — Max. 115 kBd Max. 9600 bd COM-2 (RS 485) Max. 921 kBd — — ECS LAN (L+R) Max. 375 kBd Max. 375 kBd Max. 125 kBd ✔ ✔ — Gossen Metrawatt GmbH...
  • Page 8 62.1 days 41.4 days 5.2 / 36.2 days ✔ UDM – user definable menus — — U1600 without/with memory expansion UDM – user definable menus: for the implementation of extensive user-specific menus and applications (as of August 2017) Gossen Metrawatt GmbH...

  • Page 9: Device Description

    For example, Etot is ascertained continuously but Emon-12 only infrequently (roughly every 30 90 seconds). Power values other than Pmom are always calculated from energy values and thus don’t have to be totaled up. Gossen Metrawatt GmbH...
  • Page 10 H2=’dVSUM 1..8, dVSUM 9 -1, dVIRT 10=’ Numeric Range In order to achieve greatest possible accuracy, all internal calculation operations are con- ducted with 64-bit floating point numbers. As a result, 15 (!) significant decimal places are available. Gossen Metrawatt GmbH...
  • Page 11 60. Formula for calculating power from energy E and timespan dt: P = E * Pfactor / dt Only sensors which are connected via the LON network deliver already calculated power and energy values to the summators. Gossen Metrawatt GmbH...

  • Page 12: Inputs

    Switchable voltage is limited to 50 V in this respect. Furthermore, the outputs can also be used as floating pulse outputs for remote transmis- sion of meter values with the help of ECL background programs (see ECL command S0REL 1 … 2). Gossen Metrawatt GmbH...

  • Page 13: Self-Test

    1.2 km (see also section 7.6 on page 43). • The transmission cable must be terminated at both ends (but nowhere else) with termi- nating resistors. The terminating resistors are integrated and can be activated and deac- Gossen Metrawatt GmbH...
  • Page 14 (total bus length of max. 100 m), bus connection with a twisted pair cable is recom- mended. Line-to-line connection with a twisted four-wire cable should not be set up until the distance between 2 summators is greater than 400 m (max. 1200 m). Gossen Metrawatt GmbH...
  • Page 15 An ID has the following format: A, A1 .. A9, B, B1 ... B9, .. , Z, Z1 .. Z4 System-Wide Access to Measurement Data Example: You would like to retrieve total energy for channel 1 at summator D1 from sum- mator A: <A> D1:Etot 1 Gossen Metrawatt GmbH...

  • Page 16: Lan Led (Lanl/Lanr)

    LON meters can be freely assigned to channels K1 to K64 via differential coupling. 4.11 LON LED LON LED off All LON channels deactivated (Haupttext, page 36) Blinking LON LED Error in communication with LON users LON LED on LON bus OK Gossen Metrawatt GmbH...

  • Page 17: Measurement Data

    Costs for tariffs T1 and T2 Power (mean values for specified time periods) Pmom Instantaneous power between the last 2 meter pulses PInt PInt-1 … PInt-xx Power for the current and the last xx * intervals (measurement data list) Gossen Metrawatt GmbH...
  • Page 18 EmaxDay PmaxDay EMon PMon EmaxMon PmaxMon EYear PYear EmaxYear PmaxYear Relationship Between Recording Duration and Number of Channels of the Synchronizing-Interval Measurement Data (measurement data list, format 0  3): l l = 120,5 Number of Channels Gossen Metrawatt GmbH...

  • Page 19: Synchronizing Interval Measurement Data List

    ECL command EINT. The following example shows the read-out of all measurement data from channels 1 through 5 in ASCII database for- mat: <A> Eint/## 1..5 * ** 16.04.93;17:45:00;1;0.5;0.75;0.99;1.36 16.04.93;18:00:00;1.01;0.1;0.76;0.80;0.83 16.04.93;18:15:00;0.99;0.48;0.75;1.02;1.28 Gossen Metrawatt GmbH...
  • Page 20 – With encoding type 4 the smallest resolution is 1E-7, and with faster read-out using ext.'#' resolution is 1E-6 (the 6 place after the decimal is 5/4 rounded if required). Gossen Metrawatt GmbH...

  • Page 21: Operation (Display Menus)

    > 1 s inputs/outputs Press STATUS MENU (menu 4) Select/start programs Status displays (menu 5) From the channel displays The following applies in gseneral in the display submenus: ▼ Switching 1 channel further: , 10 channels further: Gossen Metrawatt GmbH...

  • Page 22: Menu 1: Display Total Energy, Power, Costs

    Channel 01 ETot ETot 80.7321 Pmom Pmom 10.7221 kW Further Measured Values 102376.84 ETotT1, cost T1 ETotT2, cost T2 ETotT1T2, cost T1+T2 Asynchronous motor no. 1 Full Name, Channel 01 EInt, PInt, E /Day/Mon/Year Emax, Pmax /Day/Mon/Year Gossen Metrawatt GmbH...

  • Page 23: Menu 2: Display Interval Energy

    Further Measured Values 10.7221 kW xxxx: with 23.10.08 13.02.15 E, P /Day/Mon/Year Selectable Interval ➠ 03.11.08 12.57.10 Emax, Pmax /Day/Mon/Year ESC Set index to 0. ETot, Pmom, ZW /T1/T2/T1T2 Asynchronous motor no. 1 Full Name, Channel 01 Eint, Pint Gossen Metrawatt GmbH...

  • Page 24: Menu 3: Display Maximum Interval Energy Values

    1279.260 kW ESC Set index to 0. Emax, Pmax /Day/Mon/Year 23.10.08 13.02.15 ➠ ETot, Pmom, ZW /T1/T2/T1T2 03.11.08 12.57.10 Cost /T1/T2/T1T2 xx: with Asynchronous motor no. 1 Eint, Pint Selectable E, P /Day/Mon/Year Maximum 0 … 10 Gossen Metrawatt GmbH...

  • Page 25: Menu 4: Display Analog Inputs/Outputs

    N: Physical measured value standardized to 1 Menu Switching Display of actual value read out (10 V, 20 mA = 1) from analog outputs A1, A2 (in summator status) A13, 14 correspond here to analog outputs A1, 2 Gossen Metrawatt GmbH...
  • Page 26 73.4  • Single-Channel Displays  LonANA 22.8 Channel Mode Motor 01 Channel 01 2356.44 AnaN 0.235 AnaN Further Values 23.10.98 AnaR AnaR 02:35 V AnaMax, AnaMaxN, AnaMaxR 23.10.08 13.02.15 AnaMin, AnaMInN, AnaMinR Asynchronous motor no. 1 Gossen Metrawatt GmbH...

  • Page 27: In-Service Function

    EDGE 1:__-- Cold water T4 The *ERIS enumeration is used specifically with the in-service function. Example: All: Channel& *eris reads out all channels with the in-service status. Is only displayed when the in-service function is switched on. Gossen Metrawatt GmbH...

  • Page 28: Menu: Display Applications

    AUX PROG 3 pressing a key, but don’t run any cyclical tasks, for example: MY PROG 44 – Execute calculations (weighting of energy values) PROG 1 of 32 – Read-out of certain energy channels via the interfaces Gossen Metrawatt GmbH...

  • Page 29: Menu 5: Display Status Menu (Time, Relay, Errors, Interfaces)

    CHANNEL ERRORS  CHANNEL xx: SUMMATOR: Communications error Selectable channel LON error ▼ Phase sequence error Overflow Channel error pending Channel error pending To Next Error Channel To Previous   F3:CHAN F3: STA F4: – Error Channel Gossen Metrawatt GmbH...
  • Page 30 Number of users: Total of 5, of which (1) is direct There are 16 users at LAN-L/R (including this summator) Total users: 16  LON STATUS  1 node ERROR One meter (node) has been found on the LON bus. Termination: 50 Ω Gossen Metrawatt GmbH...

  • Page 31: Basic Configuration

    Tests ... LON activity Neuron ID ------------ LON factor LON offset ------------------------ ANALOG CHANNEL: Ana factor Ana offset Ana preceding sign I/O range ------------ Unit Selection A unit Ana fixed point Resolution Ana interval (A1, A2, command: ANAINT) Gossen Metrawatt GmbH...

  • Page 32: Setup Selection Menu

    CHANNEL DATA RS-232/485 Stations-Parameter RS 232/485 see page 41 parameters ECS LAN Delete: > 3 sec Stations-Parameter Stations-Parameter Stations-Parameter see page 43 Press ECS LAN parameters bus termination, etc. see page 43 DELETE menu (see page 44) Gossen Metrawatt GmbH...

  • Page 33: Summator Parameters (Ids, Intervals, Tariffs, Outputs

    Menu 4 IP NETMASK Read-out to A1, A2: 0, 4, 20 mA or 0, 2, 5, 10 V IP GATEWAY 10, 25, 50, 70% TESTS TEST menu section 7.8 on page 46 _________________________ (preceded by password prompt) Gossen Metrawatt GmbH...
  • Page 34 The cost factor is used to convert energy to costs. This conversion can be used for the tariffs’ total energy registers: ETotT1, ETotT2 and ETotT1T2. Entry ranges for cost factors: 0.000 to 99.999 ECL command: COSTFAC1 COSTFAC2 Gossen Metrawatt GmbH...
  • Page 35 Invocation of the bootstrap loader: in the bootstrap loader menu (see page 46). LED test: Display of several important LON parameters LED test: Checks the 4 LEDs for correct functioning. All 4 LEDs light up during this test. Gossen Metrawatt GmbH...
  • Page 36 Same mode as at the top CHANNEL Menu 4 CHANNEL 1 PULSE DURATION 1 to 9999 ms is required for a valid S0 signal 50ms Channel change: EDGE  ¯ 1/0, i.e. S0 signal trigger at positive/negative edge 1:__ Gossen Metrawatt GmbH...
  • Page 37 Due to the fact that a channel’s binary input status is not influenced, this function can be used, for example, to avoid undesired counting of bi- nary information. Entries become effective immediately and don’t have to be acknowl- edged. ECL command: STARTSTOP (STSP) Gossen Metrawatt GmbH...
  • Page 38 The duration for which a pulse must be applied to a channel’s S0 input in order to be rec- ognized as an S0 pulse (debounce time). ECL command: PULSE Edge Specifies whether the meter pulse will be triggered at its positive (1) or negative (0) edge. ECL command: EDGE Gossen Metrawatt GmbH...
  • Page 39 ANALOG input quantity (A unit) needs to be represented E-01 ANA FIXED POINT 0, 1, 2, 3, 9 places after the decimal point 0.0 … Channel for the display change: Resolution  ¯ 100 to 10,000 2000 Gossen Metrawatt GmbH...
  • Page 40 (3) three places after the decimal point 0.000 (9) floating-point representation Entries become effective immediately and don’t have to be acknowledged. ECL command: ANAFIX Resolution of the 12 analog input channels E1 to E12. ECL command: ANARESO Gossen Metrawatt GmbH...

  • Page 41: Rs 232/485 Menu

    Please note that the currently unused ECS LAN may/should no longer be utilized. It must also be assured that the terminating resistor is activated for 2-wire parameters configura- tion, so that no ESC LAN errors can occur. Gossen Metrawatt GmbH...
  • Page 42 COM port, as well as via the ECS LAN port. Incoming frames from both ports are processed. Nevertheless, this is not a star hub con- figuration, because the two ports (COM and ECS LAN) don’t “see” each other. Gossen Metrawatt GmbH...

  • Page 43: Lon Menu

    (only line-to-line connection is possible in this case). The required terminating resistors are activated automatically. The standard baud rate is 62.5 kBaud. Note Additional instructions on configuring the port (parameters of the SET… type) can also be found in the commands list (3-348-870-03). Gossen Metrawatt GmbH...

  • Page 44: Setup Submenus (Edit, Delete, Outputs, Bootstrap Loader, Password)

    Deletes the entire measurement data list DATA LIST F1 … F4 Here, for example, F4 ▼ CHANNEL Selection Abort D E L E T E Data of all channels : YES E S C : A B O R T Gossen Metrawatt GmbH...
  • Page 45 The system deletes all passwords and parameter settings are enabled for all users. Note See also the commands list (3-348-870-01) concerning the password parame- ter. S0/Relay Outputs Menu RELAY From MODE Setup Menu RELAY 1/S1 2: PROG RELAY 2/S2 2: PROG Abort Value Save Further:   Gossen Metrawatt GmbH...

  • Page 46: Firmware Update

     230 kBaud use 115,200 baud. • If the USB – RS 232 converter cable (with FTDI chip directly in the USB plug) is used, the fastest available baud rate of 921,600 baud can (usually) be used without any trou- ble. Gossen Metrawatt GmbH...
  • Page 47 Please refer to the following web pages for more information on the drivers: http://www.ftdichip.com/Drivers/VCP.htm The easiest way to install the driver (32 and 64 bit) – if it’s not installed automatically – is to use the setup executable available at the following address: http://www.ftdichip.com/Drivers/CDM/CDM21228_Setup.zip Gossen Metrawatt GmbH...

  • Page 48: Com Settings

     Connections (COM & LPT) — USB Serial Port (COM1)  —— Properties of the USB Serial Port (COM1) ——— Connection Settings  Advanced … ———— Advanced Settings for COM1  ————— Select COM1, COM2, COM3 ... Gossen Metrawatt GmbH...

  • Page 49: Ethernet Port

    Note: These settings correspond to the default settings after a master reset. Query MAC: SYSMAC48 Query IP: SYSIP% %rpw Query netmask: SYSIPNM% %rpw Query gateway: SYSIPGW% %rpw Tip: “%rp” prints a long number as IP address: Sysip-, ! %rp! Gossen Metrawatt GmbH...
  • Page 50 TCP/IP Settings in the Control Panel All adjustable IP parameters can also be set with the control panel – all IP parameters and the status of COM-4 ... can be checked in the status view (see graphic above). Gossen Metrawatt GmbH...

  • Page 51: Relays And S0 Relays (S0-Out)

    Associated commands: S0PCH <rel> = <source_channel> (specifies the target relay and the source channel) S0PDELTA <rel> = <energy_per_pulse> (indicates the energy quantum for which 1 pulse is generated) S0PMS <rel> = <pulse_duration_ms> (duration of one pulse in ms) Gossen Metrawatt GmbH...
  • Page 52 – RELM of a mapped relay cannot be changed in the SUMMATOR setup menu – menu 4 – RELAY MODE – “[0] STATUS” or “[1] STATUS” is displayed. Attention! If 24 V DC auxiliary power is supplied externally, the U1614 power pack module may not be used! Gossen Metrawatt GmbH...

  • Page 53: Basic Software Configuration

    50 100  / OFF LON terminating resistor * SetLON LON SUBNET/NODE LonSUBNODE S001N126 (subnet = 1, node = 126) LON TIMING CODE LonSTATTIMing 9 (384 ms) LON POLL DELAY LonPOLLDELay LON sub-channel LONCHAN LON factor LONFACTOR LON offset LONOFFSET Gossen Metrawatt GmbH...
  • Page 54 Background program: Daylight savings / H 31 'SUWI,IF,TIME–,+,time=.' standard time Formatting FORMAT Channels 1 … 64 in format 0 Group name GROUP Status relay coupling STATCHECK 1 (coupled) * These parameters are not changed when a master reset is executed. Gossen Metrawatt GmbH...

  • Page 55: U1604 Basic Module

    STATUS ERROR, COM is connected to NC. UA IN – 3-pole terminal for connecting auxiliary power UA – Reliable UA range: 90 … 264 V AC, 120 … 300 V DC / 40 VA Gossen Metrawatt GmbH...
  • Page 56 – The LON matching resistor is relay controlled (50 / 100 / off). S0 Out 1+2 (semiconductor relays) – Current-carrying capacity: max. 50 V DC, 200 mA, bipolar – Relay ON  (a) connected to (b) (typically 1 , max. 10 ). Gossen Metrawatt GmbH...

  • Page 57: U1624-S0In12

    – Six 4-pole connector terminals for two S0 inputs each. – S0 input characteristics: Input voltage = max. 30 V, input resistance = 5.1 k, bipolar, electrically isolated – Due to the fact that the utilized optocouplers are bipolar, connection polarity is irrele- vant. Gossen Metrawatt GmbH...

  • Page 58: Tbus Connection

    – The following applies for the status relay in the U1614 power pack module:  2.7 V STATUS OK (relay picked up), if U TBUS-STATUS STATUS ERROR (relay dropped out), if U < 0.8 V or open TBUS-STATUS Gossen Metrawatt GmbH...
  • Page 59 ) is 24 V – the connections are protected against polarity reversal. TBUS The permissible voltage range is: 9 V UA  30 V. TBUS Attention! If 24 V DC auxiliary power is supplied externally, the U1614 power pack mod- ule may not be used! Gossen Metrawatt GmbH...

  • Page 60: Programming

    64 programs, namely P0 … P31 and Q0 … Q31, receive continuously recurring com- mand inputs which can then be processed by simply invoking the corresponding pro- gram. Nesting of programs is possible, and a normal P program can be executed as a subprogram from a background program. Gossen Metrawatt GmbH...

  • Page 61: Parameters Configuration And Data Visualization At A Pc

    • Querying and graphic display of currently measured values in data logger format • Data transmission via modem (maintenance of a dial-up list) • Terminal emulation Gossen Metrawatt GmbH...

  • Page 62: Ecl Extensions And Notes On Compatibility

    The terms local device and remote device have been explained here in detail because they have to be used again and again in the following sections in order to illustrate com- plicated internal relationships. Gossen Metrawatt GmbH...

  • Page 63: Index Command Bug For U1601/2/3 With Use Of Utc

    This also applies when UTC time processing is not active, but all summators within the ECS LAN are nevertheless running on UTC time instead of local time (meaning: continuously monotonic increasing time). The search time specification must then be specified in displaced local time – the “°” extension doesn’t play any role at all. Gossen Metrawatt GmbH...

  • Page 64: Technical Data

    RTC real-time clock Follow-up time > 10 years 5 5 ppm (0 … +10 ppm) Accuracy Backup battery for RTC Lithium battery, 3 V ½ AA installed to PCB Service life > 10 years, battery replacement typically unnecessary Gossen Metrawatt GmbH...
  • Page 65 EN 61000-4-4 Feature B EN 61000-4-5 Power cable: 1 kV sym., 2 kV asym. signal cable: 1 kV asymmetrical Feature A EN 61000-4-6 3 V/m Feature A EN 61000-4-11 Voltage dip: feature A Brief interruption: feature B Gossen Metrawatt GmbH...
  • Page 66 0.5 to 0.5 mm² 0.5 to 1.5 mm² identical cross-section with twin ferrule and plastic sleeve Stripping length 7 mm 7 mm 7 mm Tightening torque 0.22 to 0.25 Nm 0.22 to 0.25 Nm 0.5 to 0.6 Nm Gossen Metrawatt GmbH...

  • Page 67: Lon Bus System Structure

    The following recommendation is based upon experience gained by Gossen Metrawatt GmbH during installation and start-up of LON systems. The environment within which the cable is laid has a decisive influence on correct cable selection, and must therefore be taken into consideration during the planning stage.

  • Page 68: Maximum Cable Lengths

    Additional bus terminators are required for bus topologies, and where repeaters are uti- lized. These can be purchased as auxiliary LON component U1664 in top-hat rail mount housing. Each unit includes a one-ended and a two-ended bus terminator. Gossen Metrawatt GmbH...

  • Page 69: Connecting Lon Bus Compatible Devices

    Binary Inputs and Outputs (mode: LON-INP, CMODE = 7 LonI or LON-REL, CMODE = 8 LonR) Binary inputs can be queried with the U1660 meter polling module, and the OCL210 re- lay output module is capable of switching relays. Gossen Metrawatt GmbH...

  • Page 70: Device Descriptions

    Active energy import nvo_TrueSY_Power Active power in the network Nvo_EnergyC Inductive reactive energy nvo_ReactSY_Pwr Reactive power in the network Nvo_EnergyD Capacitive reactive energy 35 nvo_ReactSY_Pwr Reactive power in the network Only this setting is supported (must be configured). Gossen Metrawatt GmbH...
  • Page 71 Input 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 Example: LonINP 3 = 3 means U1660 at channel 3, inputs 1 and 2 on, all oth- ers off. Gossen Metrawatt GmbH...
  • Page 72 Energy and Power Function Settings: CMODE k = 4 LON. Desired energy is selected via LonCHANNEL. LonCHAN- Description Active energy, active power and errors Active secondary energy, active secondary power and errors U128x/U138x only Reactive energy, reactive power and errors Gossen Metrawatt GmbH...
  • Page 73 (e.g. 15 minutes) and saved to interval memory (Pint). The desired value is selected via LonCHANNEL. LonTYPE Device type and Q feature are displayed as LonTYPE after installation, for example U1389 Q1. Gossen Metrawatt GmbH...
  • Page 74 4.8.8 nvokWhPosPri UNVT_energy_U160x Primary active energy import, all tariffs 1.8.0 nvokWhNegPri UNVT_energy_U160x Primary active energy supply, all tariffs 2.8.0 nvokVArhPosPri UNVT_energy_U160x Primary reactive energy import, all tariffs 3.8.0 nvokVArhNegPri UNVT_energy_U160x Primary reactive energy supply, all tariffs 4.8.0 Gossen Metrawatt GmbH...
  • Page 75 Phase current mean value nvoIN SNVT_amp_f Calculated neutral conductor current nvoThdI1 SNVT_lev_percent THD current I1 nvoThdI2 SNVT_lev_percent THD current I2 nvoThdI3 SNVT_lev_percent THD current I3 Further information can be found in the interface description for the LON interface (3-349-908-03). Gossen Metrawatt GmbH...

  • Page 76: Reinstalling A Lon Device

    If the type is displayed correctly: Check for channel errors. Installation is now complete. If the connected device is not displayed at LON type: Check the LON ID. If LON type is ??????.?: Check the LON ID, and check LON wiring. Start reinstallation: Gossen Metrawatt GmbH...

  • Page 77: Configuration At A Pc With Ecswin Software

    Parameters are transmitted to the device in the case of the U1660 and the U1661. Check for parameters configuring errors. Control panel: CHANNEL ERROR menu, termi- nal: ErrChan c If a parameters configuring error is detected: For U1660: Check METER CONSTANT For U1661: Check LONFACTOR, LONOFFSET and P-FACTOR. Gossen Metrawatt GmbH...

  • Page 78: Additional Lon Parameters

    ✔ ✔ ✔ ✔ Phase failure ✔ ✔ ✔ ✔ ✔ Phase sequence error ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Overflow ✔ ✔ Parameter configura- tion error only for U1661 B2 4 - 20 mA Gossen Metrawatt GmbH...

  • Page 79: Maintenance

    Attention: When changing the battery, use only the sliding cover intended for this pur- pose and do not insert it into the housing next to the battery! Refer to “Returns and Environmentally Sound Disposal” on page 81 concerning battery disposal. Gossen Metrawatt GmbH...

  • Page 80: Contact, Support And Service

    This address is only valid in Germany. Please contact our representatives or subsidiaries for service in other countries. Industrial Product Support If required please contact: Gossen Metrawatt GmbH Industrial Product Support Hotline Phone: +49-911-8602-0 Fax: +49-911-8602-340 e-mail: support.industrie@gossenmetrawatt.com...

  • Page 81: Returns And Environmentally Sound Disposal

    Segregated disposal and recycling conserves resources and protects our health and the environment. Current and further information is available on our website at http://www.gossenme- trawatt.com under the search terms “WEEE” and “environmental protection”. Gossen Metrawatt GmbH...

  • Page 82: Index

    Meter Constant ............38 Date/Time ...............34 Meter Input ............. 19 Debounce ..............12 Multi-Master Architecture ........13 DELETE Menu ............44 DIR .................15 DTE (data terminal equipment) ........13 Network Topologies ..........67 Neuron ID ............... 40 Numeric Range ............10 Gossen Metrawatt GmbH...
  • Page 83 TCP Interface ............13 Terminating Resistor (ECS LAN) ....... 13 TIMING CODE ............43 Transmission ............13 Trigger Edge ............12 U Ratio, I Ratio ............38 U128x-W1 .............. 72 U138x-W1 .............. 72 U1660 ..............71 U1661 ..............72 Gossen Metrawatt GmbH...
