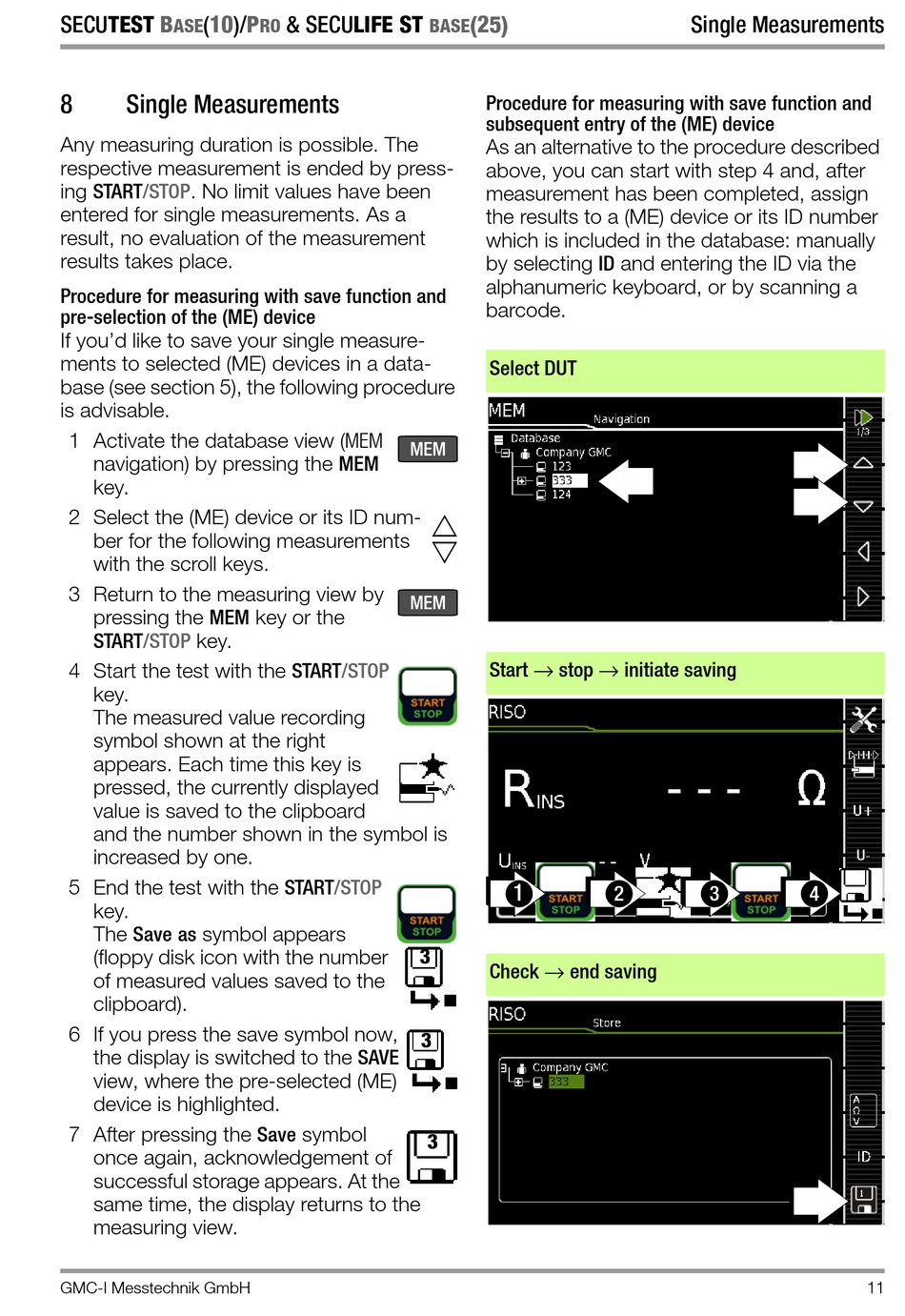

Single Measurements

Any measuring duration is possible. The
respective measurement is ended by press-
ing START/STOP. No limit values have been
entered for single measurements. As a
result, no evaluation of the measurement
results takes place.
Procedure for measuring with save function and
pre-selection of the (ME) device
If you'd like to save your single measure-
ments to selected (ME) devices in a data-
base (see section 5), the following procedure
is advisable.
1 Activate the database view (MEM
navigation) by pressing the MEM
key.
2 Select the (ME) device or its ID num-
ber for the following measurements
with the scroll keys.
3 Return to the measuring view by
pressing the MEM key or the
START/STOP key.
4 Start the test with the
key.
The measured value recording
symbol shown at the right
appears. Each time this key is
pressed, the currently displayed
value is saved to the clipboard
and the number shown in the symbol is
increased by one.
5 End the test with the
key.
The Save as symbol appears
(floppy disk icon with the number
of measured values saved to the
clipboard).
6 If you press the save symbol now,
the display is switched to the SAVE
view, where the pre-selected (ME)
device is highlighted.
7 After pressing the Save symbol
once again, acknowledgement of
successful storage appears. At the
same time, the display returns to the
measuring view.
GMC-I Messtechnik GmbH
& SECULIFE ST
RO
MEM
MEM
START/STOP
START/STOP
3
3
3
(25)
BASE
Procedure for measuring with save function and
subsequent entry of the (ME) device
As an alternative to the procedure described
above, you can start with step 4 and, after
measurement has been completed, assign
the results to a (ME) device or its ID number
which is included in the database: manually
by selecting ID and entering the ID via the
alphanumeric keyboard, or by scanning a
barcode.
Select DUT


Start → stop → initiate saving
1
Check → end saving
Single Measurements
2 3 4
