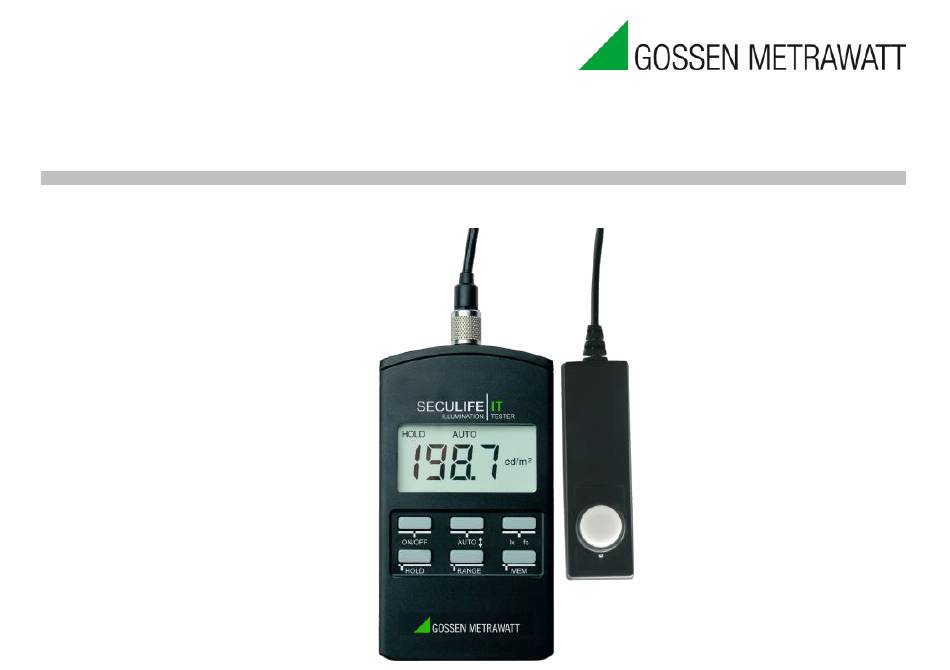

- Page 1 Operating Instructions SECULIFE | 15507 2/2.14 Illuminance Tester...

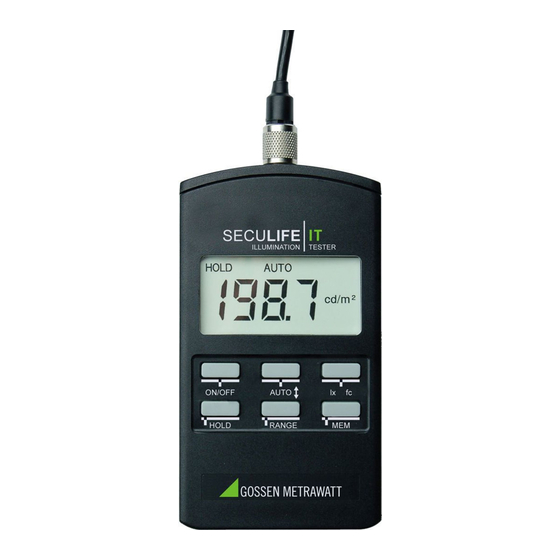

- Page 2 Photometer head USB Port Display Circular orifice Key pad Light collector Back of display unit: - battery door Back of photometer head: - serial number - serial number of display unit - calibration seal for DAkkS- or - tripod socket ¼ “ calibration certificate (if available) Perspective view of SECULIFE GMC-I Messtechnik GmbH...
-
Page 3: Table Of Contents
Contents Page Page USB Port – Standard Software……..12 Applications..........4 Display............. 5 Accessories........13 Description of Display Elements....5 Standard Equipment......13 Key Pad........... 5 Optional Accessories......13 Calibration Certificate......14 Functioning of the SECULIFE....6 DAkkS Certificate………………… Preparation..........6 Duration of Display – Service and Maintenance….……. -
Page 4: Applications
Applications The SECULIFE illuminance meters are handy, easy to use and high precision measuring instruments. They allow the accurate measurement of the illuminance in the unit lx or fc. Combined with the Luminance Attachment, available as optional accessory, the SECULIFE can also be used for measuring luminance in the unit cd/m²... -
Page 5: Display
Display Description of Display Elements Key Pad Display of measuring value and Memory Switch On/Off Measuring Unit Range key – Memory/Measuring range Display „HOLD„ indication / Buffer Storage lx/fc – Select measuring unit Multiplying factor for measuring value HOLD – Function / Buffer Storage Auto ranging –... -
Page 6: Functioning Of The Seculife
Functioning of the SECULIFE Preparation First remove the snap-on cover of the battery compartment at the back of the meter. Insert the battery included in the delivery contents (1.5 V size AA, IEC LR6) in the battery compartment. Care should be taken to place the battery correctly according to the polarity indications “+“... -
Page 7: Seculife It
SECULIFE Operation Switch On – Make Measurement Press down the on/off key and the SECULIFE will start up in measuring mode and will immediately be measuring at 2 times per second. The instrument is in the function „AUTO“, i.e. the SECULIFE will select the best suited measuring range for the existing light level. -
Page 8: Memory Functions
Memory Functions In addition to the display buffer storage, the SECULIFE has also been provided with a memory space for up to 100 measured values. This function allows the user to make several measurements in the field and then to view them later. The data stored in the memory will be maintained, even if the meter is turned off or if the battery is changed. -
Page 9: Mem" - Save Measured Values
„Mem“ – Save Measured Values in Memory 4.4.2 The measurement measured value which is to be saved will be maintained by the Hold key in the display and may be filed onto Hold the next free memory space by pressing down key Mem. Then, for a few seconds, the display shows the saved measured value alternating with the number of the memory space. -
Page 10: Measured Value
„Mem-Edit“ – Overwrite a Saved Measured Value 4.4.3 The SECULIFE offers the function „Mem Edit“ for correcting a Hold stored value in the memory. Measure again, press the Hold key and the new value is logged in. Then, by pressing one of the range keys, you can scroll through the memory. -
Page 11: Mem Recall" - Data Memory Recall
„Mem Recall“ – Data Memory Recall 4.4.4 Start in the function „Measuring“ and press down the key Mem. The last memory space filled will be displayed first. Strike one of the Range keys to scroll through the data memory. The current memory space is displayed as 01-02..., alternating with the measured value saved in the memory. -
Page 12: „Mem-Clear" - Clear Memory
„Mem-Clear“ – Clear Memory 4.4.5 The SECULIFE must be in function „HOLD“. Pressing down the Range keys simultaneously, will clear the complete measuring data memory. The cancelling is confirmed in the display by three dashes. USB Port – Standard Software The SECULIFE is equipped with a USB Port which allows the meter to be connected to a PC by the USB cable (in the delivery contents). -
Page 13: Accessories
Accessories Standard Equipment Aluminium Case Battery Protective cover cap Standard Software on CD-ROM USB cable Instruction Manual Optional Accessories Luminance Attachment cd/m² and fL (Order Code Z688A) Measures the reflected light, i.e. the luminance of a surface with a measuring angle ... -
Page 14: Calibration Certificate
Calibration Certificate (Optional) The traceability of the measuring results is guaranteed by our calibration reference: Scientific Standard Lamps, type Wi 41G of the PTB (Physikalisch Technische Bundesanstalt Braunschweig – National Standard Institute of Germany). Depending on how the instrument is being used we recommend a recalibration interval between 12 and 24 month. -
Page 15: Specifications
Specifications Silicon photo diode with V ( ) filter Light Sensor M688E (MAVOLUX 5032C USB) – Class C according to DIN 5032, Part 7 (CIE 69) Classification SECULIFE M688A (MAVOLUX 5032B USB) – Class B according to DIN 5032, Part 7 (CIE 69) SECULIFE 2 measurements per second Measuring Rate... - Page 16 Weights and Dimensions Housing Plastics Dimensions Display Unit: 65 x 120 x 19 mm 2.56 x 4.73 x 0.75“ (without carrying case) Photometer Head: 31 x 105 x 30 mm 1.22 x 4.13 x 1.18” tripod socket ¼ “ on bottom side Weight Display unit and photometer head approx.
- Page 17 Characteristics SECULIFE Measuring Quantity Measuring Range Measuring Range Resolution Resolution in Lux (lx) in footcandle (fc) in lx in fc Illumination 0.01... 19.99 0.001... 1 999 0.01 0.001 0.1... 199.9 0.01... 19.99 0.01 1... 1 999 0.1... 199.9 10... 19 900 1...
- Page 18 ´ ) SECULIFE )-Adaptation (f Typ SECULIFE ´ < 3 % GMC-I Messtechnik GmbH...
-
Page 19: Declaration Of Conformity
EG – KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY Dokument-Nr./ Document.No.: 102/2004 GOSSEN Foto- und Lichtmesstechnik GmbH Hersteller/ Manufacturer: Anschrift / Address: Thomas-Mann-Str.16-20 90471 Nürnberg Produktbezeichnung/ Product name: Beleuchtungsstärkemessgerät / Luxmeter / Footcandle meter Typ / Type: MAVOLUX 5032 B USB Bestell-Nr / Order No: M503G Das bezeichnete Produkt stimmt mit den Vorschriften folgender Europäischer Richtlinien überein, nachgewiesen durch die vollständige Einhaltung folgender Normen: The above mentioned product has been manufactured according to the regulations of the following European directives proven through complete compliance with the... - Page 20 Characteristics SECULIFE Measuring Quantity Measuring Range Measuring Range Resolution Resolution in Lux (lx) in footcandle (fc) in lx in fc Illumination 0.1... 199.9 0.01... 19.99 0.01 1... 1 999 0.1... 199.9 10... 19 900 1... 1 999 100... 199 000 10...
- Page 21 ´ ) SECULIFE )-Adaptation (f Typ SECULIFE ´ < 7,5 % GMC-I Messtechnik GmbH...
- Page 22 EG - KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY Dokument-Nr./ Document.No.: 101/2004 GOSSEN Foto- und Lichtmesstechnik GmbH Hersteller/ Manufacturer: Anschrift / Address: Thomas-Mann-Str.16-20 90471 Nürnberg Produktbezeichnung/ Product name: Beleuchtungsstärkemessgerät / Luxmeter / Footcandle meter Typ / Type: MAVOLUX 5032 C USB Bestell-Nr / Order No: M502G Das bezeichnete Produkt stimmt mit den Vorschriften folgender Europäischer Richtlinien überein, nachgewiesen durch die vollständige Einhaltung folgender Normen: The above mentioned product has been manufactured according to the regulations of the following European directives proven through complete compliance with the...
- Page 23 GMC-I Messtechnik GmbH is also a leading provider of further interesting light measuring instruments: SECULIFE IM: High quality and precision instrument for measuring luminance, classified according to the Standard Specifications DIN 5032, Part 7, Class B and CIE 69. The measuring sensor to be placed directly on the luminous or back lighted surface may be used for contact measurement such as i.e.
- Page 24 Product Support If required, please contact: GMC-I Messtechnik GmbH Product Support Hotline Phone +49 911 8602-0 +49 911 8602-709 E-Mail support@ gossenmetrawatt.com Edited in Germany • Subject to change without notice •A PDF version is available on the Internet Phone +49 911 8602-111 GMC-I Messtechnik GmbH +49 911 8602-777 Südwestpark 15...
