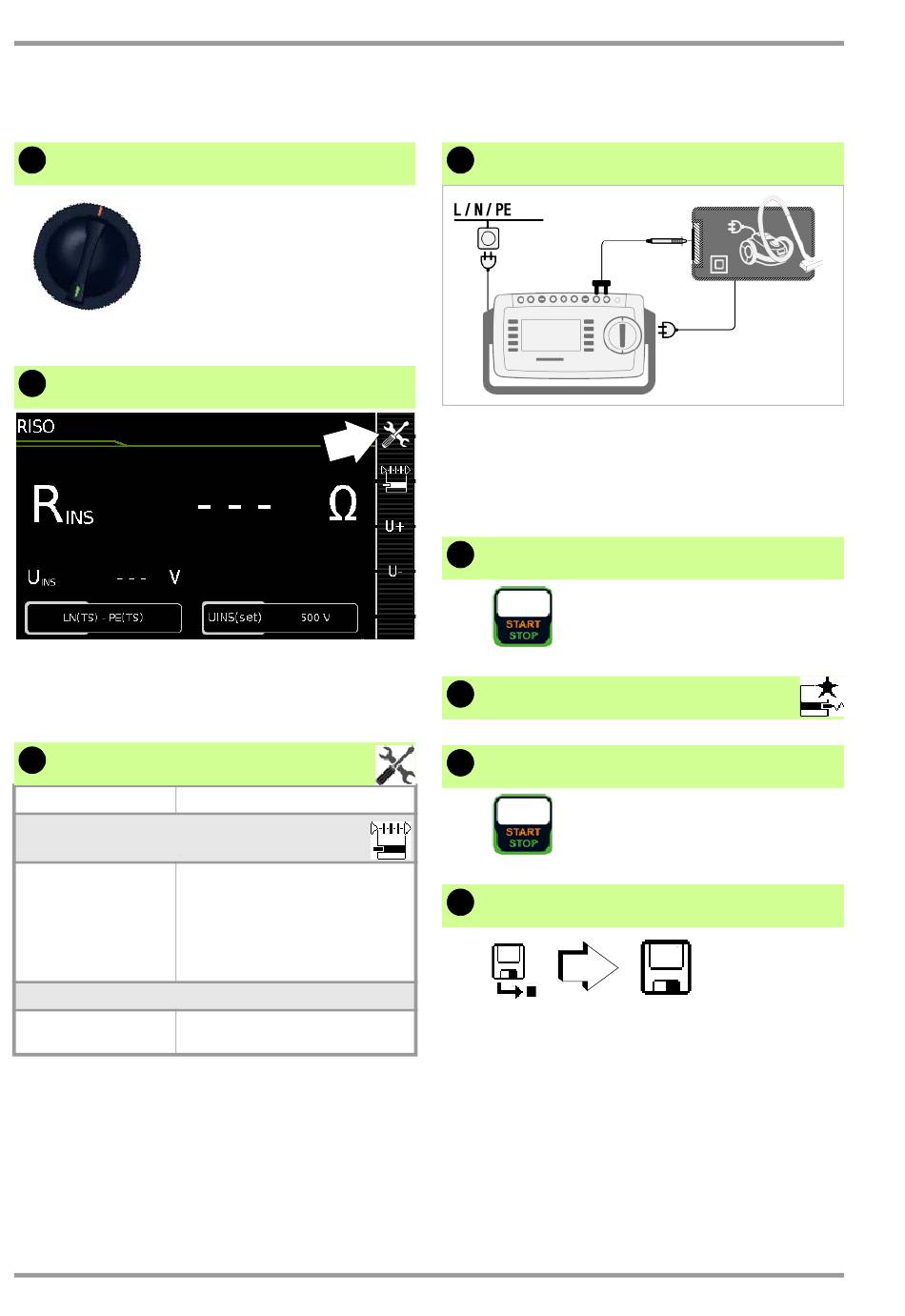

8.3 RISO – Insulation Resistance Measurement for Protection Class II Devices
1 Select measuring function
RISO
2
Select parameters
U+ = increase UINS(set)
U– = decrease UINS(set)
3 Set parameters
Meas. Parameter Meaning
Mode (Measurement type)
–
LN(TS) P1 Testing between short-circuited LN
mains terminals at test socket and
test probe P1
(Connection via test socket, via
adapter VL2E, AT3-IIIE, AT3-IIS,
AT3-II S32 or AT16DI/AT32DI)
UINS(set)
> 50 to < 500 V Variable test voltage can be en-
tered with the numeric keypad
14
& SECULIFE ST
RO BASE
U+/U–
(25)
4 Connect DUT
➭ Connect the DUT to the test socket.
➭ Contact all conductive, exposed parts
with test probe P1.
5 Start test
6
Save measured values to clipboard
7
Stop test
8 Save measurements under ID no.
Single Measurements
P1
LN(TS)
