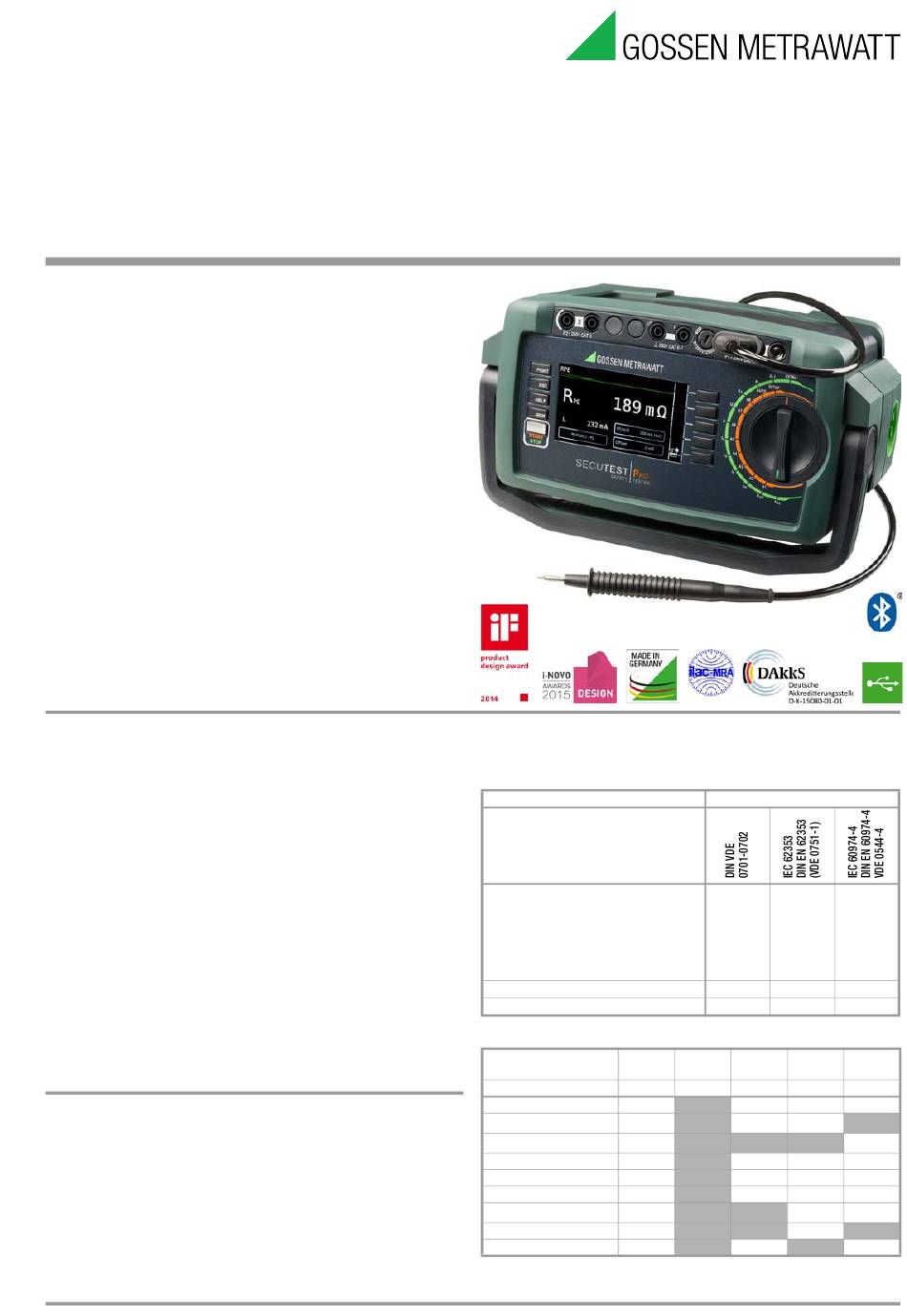

Test Instruments for Measuring Electrical Safety of Devices
per VDE 0701-0702, IEC 62353 and IEC 60974-43
• 8 preconfigured test sequences for quickly testing simple
operating equipment
• One universal, adjustable test sequence
• One test sequence executed with individual measurements
• Suitable for use by instructed persons
• Enormous data maintenance and storage concept for automated
test sequences and measurements for up to 50,000 data records
• Fast access to mesurement and test functions with double
rotary switch, direct selection keys and softkeys
• High-resolution, brilliant 4.3" TFT color display
• Unique multiple measurement allows convenient recording of
several measuring points.
• Automatic DUT connection and protection class detection
• Compact, impact resistant housing with integrated rubber protector
• Comprehensive, legally secure preparation of test reports
• Modern interfaces:
for data entry (two USB A) and data exchange (one USB B)
• Extensive setting options for international use
(language, keyboard, character set, date, time)
• Testing of PRCDs of PRCD standard type, SPE-PRCD,
PRCD-S and PRCD-K within test sequences in accordance
with DIN VDE 0701-0702-PRCD.
Additional Functions SECUTEST PRO
• Remote control via PC software possible
• Additional database elements for property, building, floor, room
for a better structuring of data and additional fields for depart-
ment and cost center
• Multi-print – read-out of all test reports which are available for a device
under test with 1 finger tip (at a connected Z721S thermal printer)
• Design user-created report templates with „ReportDesigner"
software (free available from myGMC)
• RFID transponder, read/write (Z751R,S,T), with SCANBASE RFID Z751E
(UID or memory depending on how the reader is programmed)
• XML data export to a USB stick
• IZYTRONIQ or USB stick data import of all important data into the tester
• Design user-created sequences with "IZYTRONIQ" software
Added Feature SECULIFE ST BASE(25)

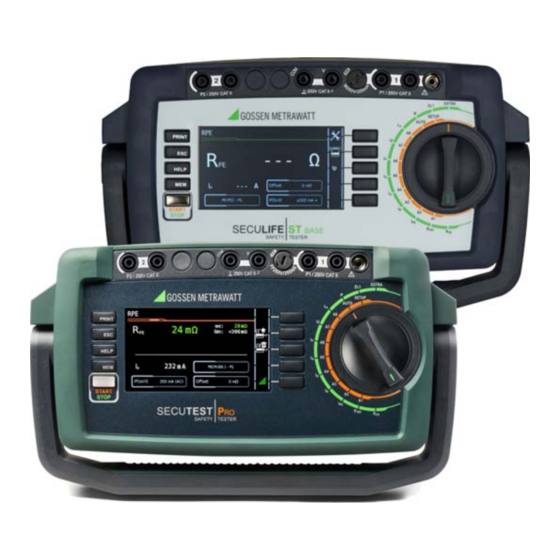

SECULIFE ST BASE corresponds to the range of functions offered by
SECUTEST PRO, but is additionally endowed with antimicrobial
properties. This is to curb the growth of germs, counteract micro-
bial colonization or kill microorganisms.
SECULIFE ST BASE25 conforms to SECULIFE ST BASE, apart from
being capable of testing with a 25 A instead of 10 A test current.
GMC-I Messtechnik GmbH
/ P and SECULIFE ST
RO BASE(25)
Standards for the Use of SECUTEST BASE/PRO and
SECULIFE ST BASE(25) Test Instruments
DUTs to be tested
in accordance
with the following
standards
Electric devices: e. g.
Work devices
Mains operated electronic devices Hand-held
electric tools
Extension cords
Household appliances
Data processing devices
Electrical medical devices
Arc welding units
Overview of Differences in Features
SECUTEST... Feature
SECULIFE...
Touch screen / keyboard E01
10 A RPE test current
G01
25 A RPE test current
G02
nd
2 test probe H01
Voltage meas. inputs* I01
SECUTEST DB+ KB01
SECUTEST DB comfort
KD01
®
Bluetooth M01
Antimicrobial housing —
* for voltage measurements or connecting current clamp sensors or AT3 adapter as
well as for temperature measurement via RTD
3-349-753-03
Testing after Repairs / Periodic Testing
•
•
•
BASE PRO PRO BT —
comfort
— ST BASE — ST BASE25
• •
• •
• •
• •
• •
•
•
ST BASE
18/8.18
optional
•
•
•
•
•
•
•
•
