VERTICAL TURBINE PUMPS (VTPS) CENTRIFUGAL PUMPS ENGLISH 71569224 – 02-15

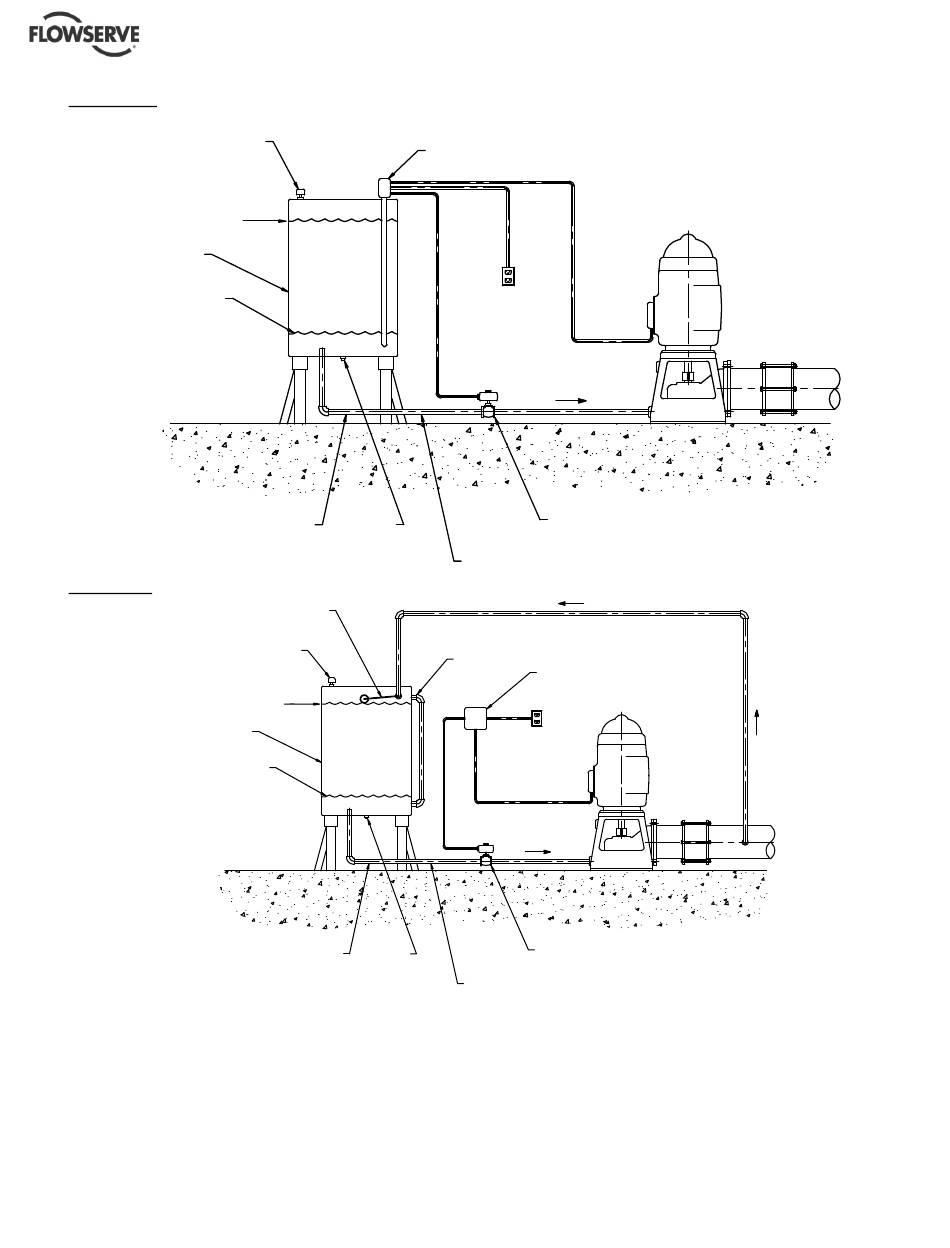

Example (c)
VENT
MAX
LEVEL
LUBRICATION
TANK
STARTUP
LEVEL
25mm (1in.) PIPE
Example (d)
LEVEL
LUBRICATION
TANK
STARTUP
LEVEL
Page 37 of 76
LEVEL
SWITCH
DRAIN
LINE PLUG
FLOAT
LEVEL
VENT
MAX
25mm (1 in.) MIN DRAIN
PIPE LINE PLUG
SOLENOID GATE VALVE SHOULD
WITHSTAND MAX. DISCHARGE PRESSURE
PIPING MUST BE KEPT TO
MINIMUM LENGTH AS POSSIBLE
LEVEL
GAUGE
TIME DELAY RELAY
SOLENOID GATE VALVE SHOULD
WITHSTAND MAX. DISCHARGE PRESSURE
PIPING MUST BE KEPT TO
MINIMUM LENGTH AS POSSIBLE
