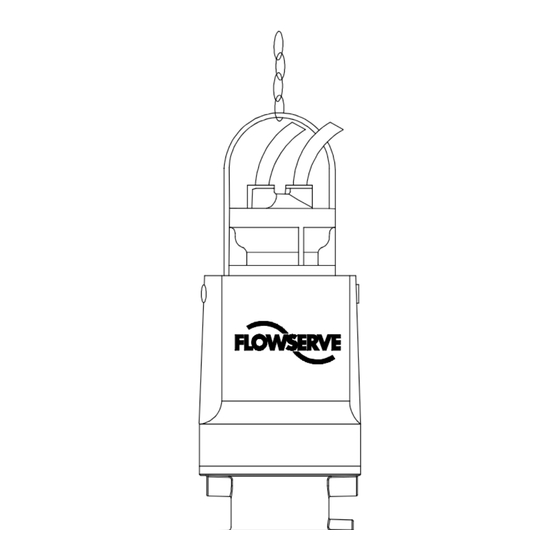

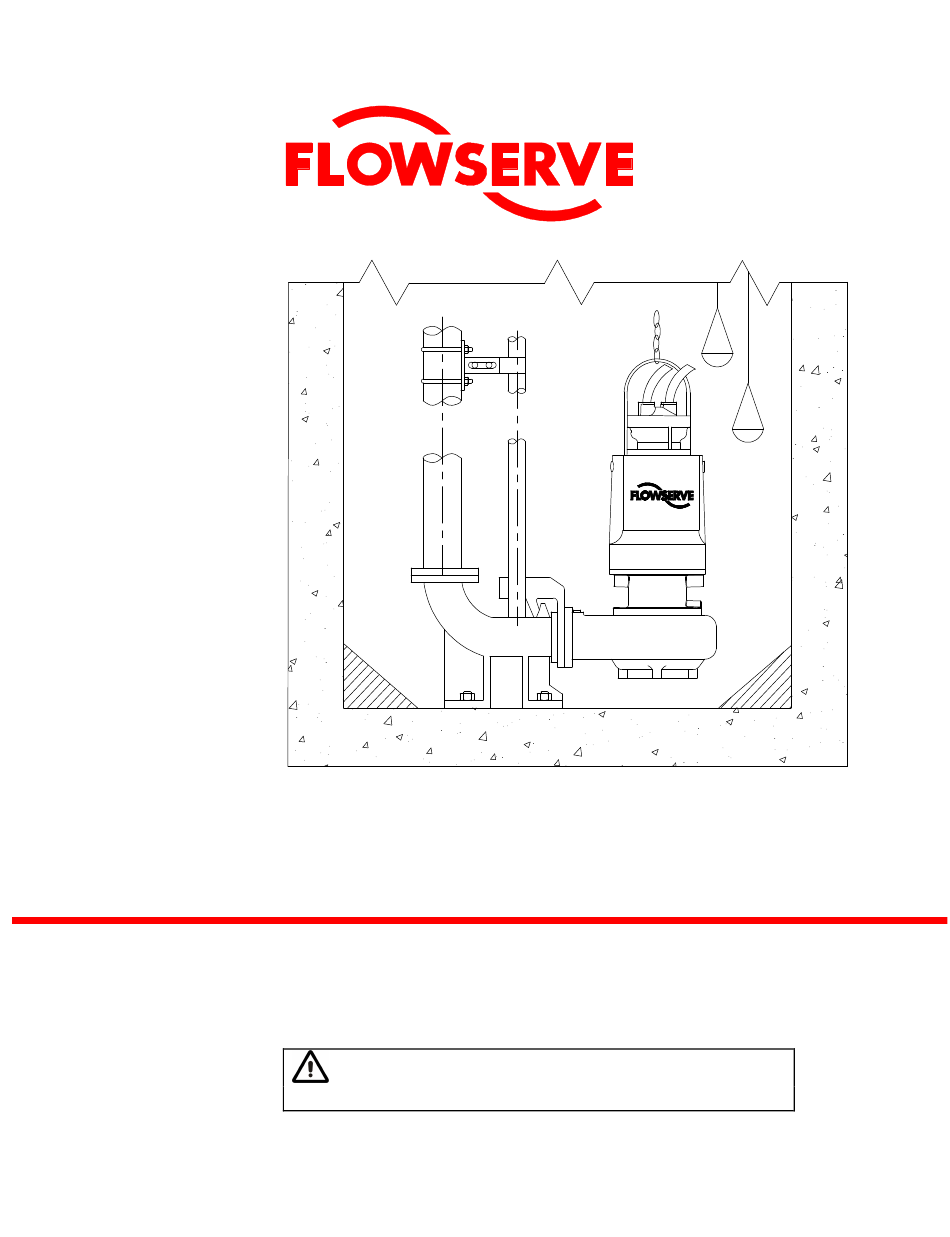

- Page 1 ® Pump Division Type: MSX Series 2, Non-Clog Submersible Pump CENTRIFUGAL PUMPS USER INSTRUCTIONS: INSTALLATION, OPERATION, MAINTENANCE P/N 89136436 These instructions should be read prior to installing, operating, using and maintaining this equipment.
-
Page 2: Table Of Contents
MOTOR THERMAL PROTECTION......................18 MOISTURE DETECTION SENSOR ......................18 COOLING SYSTEM FILLING ........................18 SECTION IV: OPERATION MOTOR COOLING ............................. 19 MINIMUM SUBMERGENCE........................19 REDUCED CAPACITY OPERATION ......................19 PRELIMINARY TO STARTING........................19 STARTING ..............................19 STOPPING..............................20 Flowserve Pump Division - 2... - Page 3 MOTOR OVERHEATS..........................27 SECTION VII: SERVICE PARTS AND PARTS REPLACEMENT SERVICE PARTS ............................28 SERVICE PARTS STORAGE........................28 HOW TO ORDER SPARE PARTS ......................28 RETURNING PARTS..........................28 SECTION VIII: DRAWINGS Cross Sectional Drawing..........................29 Flowserve Pump Division - 3...
-
Page 4: Warranty Registration
Signed: Date: Is there a junction box in pit? Y / N Where? This report must be submitted to Flowserve Pump Division to activate warranty. Electrically connect the pump leads, float switches and power supply leads per instructions located in the control Mail or Fax to: panel door. -
Page 5: Foreword
FOREWORD Flowserve Pump Division products are the result of more than a century of progressive study and development. Advanced design, proper selection of materials and precision construction reflect this wide experience. Flowserve Pump Division products are designed to give trouble-free, efficient operation with minimum maintenance and repair. -
Page 6: Section I: Introduction And General Description
Local codes and practices COOLING SYSTEM The MSX Series 2 motor has a self-contained, closed-loop cooling system, which makes it suitable for dry pit as well as wet pit applications. A secondary impeller is used to pump the cooling fluid through a heat exchanger plate, transferring heat to the pumped fluid. -
Page 7: Motor Thermal Protection
DAMAGE TO THE MOTOR AND POSSIBLE ELECTRIC SHOCK. BEARINGS MSX Series 2 pumps are equipped with back-to-back, tapered roller thrust and single-row, ball line bearings. The line and thrust bearings are lubricated for life with grease. IMPELLER AND WEARING RINGS The pump impeller is of the enclosed non-clog type capable of passing solids of limited size. -
Page 8: Section Ii: Pre-Installation Instructions
Excessive leaking (more than a few drops) should be reported to your local Flowserve Pump Division Service Center, as it may indicate a problem with the mechanical seals. If there is excessive leaking, the situation should be resolved prior to installing your pump. -
Page 9: Prior To Installation
Flowserve Pump Division Representative. MANUFACTURER'S SERVICE We recommend that the services of a Flowserve Pump Division Service Engineer or Flowserve Pump Division Authorized Representative be employed for start-up of pump equipment. The purchaser is then afforded the opportunity to receive adequate and authoritative instructions, validating the Flowserve Pump Division warranty. -
Page 10: Section Iii: Installation
SITE PREPARATION Flowserve Pump Division MSX Series 2 wet well pumps can be installed in a permanent well via a guide rail system or on a pedestal base so that they are transportable. Series 2 pumps can also be installed in dry pit applications with the use of a suction base and permanent discharge piping. -
Page 11: Grouting
The purpose of grouting is to prevent lateral shifting of the equipment supports and not to take up irregularities in the foundation. Only non-shrinking grout with a 6000 psi (41.4 MPa) compressive strength in 72 hours should be used. Flowserve Pump Division recommends the following procedure for grouting: Build a wooden form around the outside of the base to contain the grout. - Page 12 Figure 1: Guide Rail System Flowserve Pump Division - 12...
-
Page 13: Dry Pit Installation
A compound pressure gauge should be connected to the suction and a pressure gauge connected to the discharge side of each pump. Mount the gauges at a convenient location as they are necessary for any adequate check on pump performance. Flowserve Pump Division - 13... -
Page 14: Pedestal Mounting
Pumps intended for portable use are supplied with a transportable stand. Either flexible hose with quick disconnect couplings or rigid piping can be attached to the discharge; See Figure 3: Transportable Stand. PUMP SIDE VIEW TRANSPORTABLE STAND Figure 3: Transportable Stand Flowserve Pump Division - 14... -
Page 15: Float Switches
Contact Flowserve Pump Division directly for variations in installation and performance at other voltages. Most Series 2 MSX Pumps are furnished multiple power cables to meet the ampacity ratings as required by ANSI/NFPA 70 (NEC). -
Page 16: Dual Voltage Motor
Flowserve Pump Division Service Personnel. CAUTION: A CHANGE IN VOLTAGE REQUIRES REWIRING OF THE MOTOR. REWIRING BY NON-FLOWSERVE PUMP DIVISION SERVICE PERSONNEL WILL VOID THE FACTORY WARRANTY AND NEGATE THE EXPLOSION PROOF CERTIFICATION. Figure 5: Motor Connection Diagram Checking Rotation After connection of the electric service and prior to installing the unit, the rotation must be checked. -
Page 17: Insulation Testing
Insulation Testing Flowserve Pump Division recommends that the motor winding insulation be checked once the unit is in place and prior to applying power to the unit. If the insulation resistance of the motor winding and power supply cable is to be tested, use an instrument designed for this purpose (500 VDC). To measure the insulation resistance, use to following procedure: Disconnect all leads of the power supply cable and clean them carefully. -
Page 18: Motor Thermal Protection
DURING OPERATION, THE COOLING FLUID WILL INCREASE IN TEMPERATURE AND PRESSURIZE THE COOLING SYSTEM. PRIOR TO DRAINING THE COOLING FLUID, THE PUMP SHOULD BE ALLOWED TO COOL. THE COOLING SYSTEM SHOULD BE OPENED CAREFULLY AS THE COOLING FLUID COULD STILL BE PRESSURIZED. Flowserve Pump Division - 18... -
Page 19: Section Iv: Operation
Flowserve Pump Division MSX Series 2 non-clog submersible pump is driven directly by a motor. Flowserve Pump Division MSX Series 2 pumps have an internal cooling system, which makes them suitable for use in either wet or dry pit applications. -
Page 20: Stopping
STOPPING Although the procedure for stopping may vary slightly with each installation, typically the driver is simply shut down. Flowserve Pump Division - 20... -
Page 21: Section V: Maintenance
WARNING: MOTORS NAMEPLATED CLASS 1, DIVISION1, GROUP C & D MUST BE SERVICED BY CERTIFIED FLOWSERVE PUMP DIVISION SERVICE PERSONNEL. THIS INCLUDES, BUT IS NOT LIMITED TO SERVICE ON THE ROTOR, STATOR, BEARINGS, CABLE, CABLE GLANDS AND GROMMETS. SERVICE BY PERSONS... -
Page 22: Complete Overhauls
Impeller and Casing Disconnect power from the motor. Use lifting bail and chain to remove the pump from wet pit. Transport pump to a Flowserve Pump Division approved service shop. CAUTION: TAKE PRECAUTIONS TO PROTECT THE PUMP DURING TRANSPORTATION. Remove bolts holding the adapter plate to the pump casing. Draw out the pump rotating assembly complete with the motor. -
Page 23: Pump Assembly
BEARING REMOVAL OR INSTALLATION MUST ONLY BE DONE BY PERSONS QUALIFIED AND AUTHORIZED BY FLOWSERVE PUMP DIVISION. AUTHORIZATION CAN BE OBTAINED BY ATTENDING A FLOWSERVE PUMP DIVISION SERVICE SCHOOL FOR MSX SERIES 2 PUMPS. Carefully examine all individual parts, important joints and all wearing surfaces as the pump and rotor are dismantled. -
Page 24: Mounting Of Wearing Rings
The fluid should be checked again 2-3 weeks later. If the fluid has become discolored or milky the seal should be replaced. Flowserve Pump Division recommends Royal Purple Barrier Fluid GT22 as the replacement fluid. Contact an authorized service person for replacement cooling fluid. -
Page 25: Bearings
BEARINGS MSX Series 2 pumps are furnished with grease-lubricated bearings, which are sealed for life. Proper grease lubrication is very important. Anti-friction bearings can be over-greased as well as under-greased. Any time maintenance is performed on the bearings, they should be repacked with grease, and the bearing chamber should be filled approximately 75% full. -
Page 26: Section Vi: Locating Trouble
The pump is being operated too far away from capacities for which it was designed Insufficient net positive suction head Inadequate piping support Pump is not properly seated on the discharge elbow (wet pit applications) Flowserve Pump Division - 26... -
Page 27: Bearing Life Is Short
Abrasive material in seal cavity Mechanical seal was run dry Seals are over- or under-compressed MOTOR OVERHEATS Fluid level in cooling system is low Cooling fluid is contaminated A non-approved cooling fluid is being used Flowserve Pump Division - 27... -
Page 28: Section Vii: Service Parts And Parts Replacement
Give the name and number of the parts as listed on the spare parts list on the Sectional Drawing, the quantity required and, when possible, the complete symbol stamped on the old part. Orders for service parts should be sent to the nearest Flowserve Pump Division Sales Representative or Sales Office. -
Page 29: Section Viii: Drawings
SECTION VIII: Drawings Flowserve Pump Division - 29... - Page 30 Telephone: +1 (410) 756 2602 Customer Service FAX: +1 (410) 756 2615 Parts inquiry/Order PH: +1 (800) 526 3569 To find your local Flowserve representative, please use the Sales Support Locator System found at www.flowserve.com Flowserve Pump Division P/N 89136436 Rev.
