Lippert Components Level Up Installation And Owner's Manual page 4

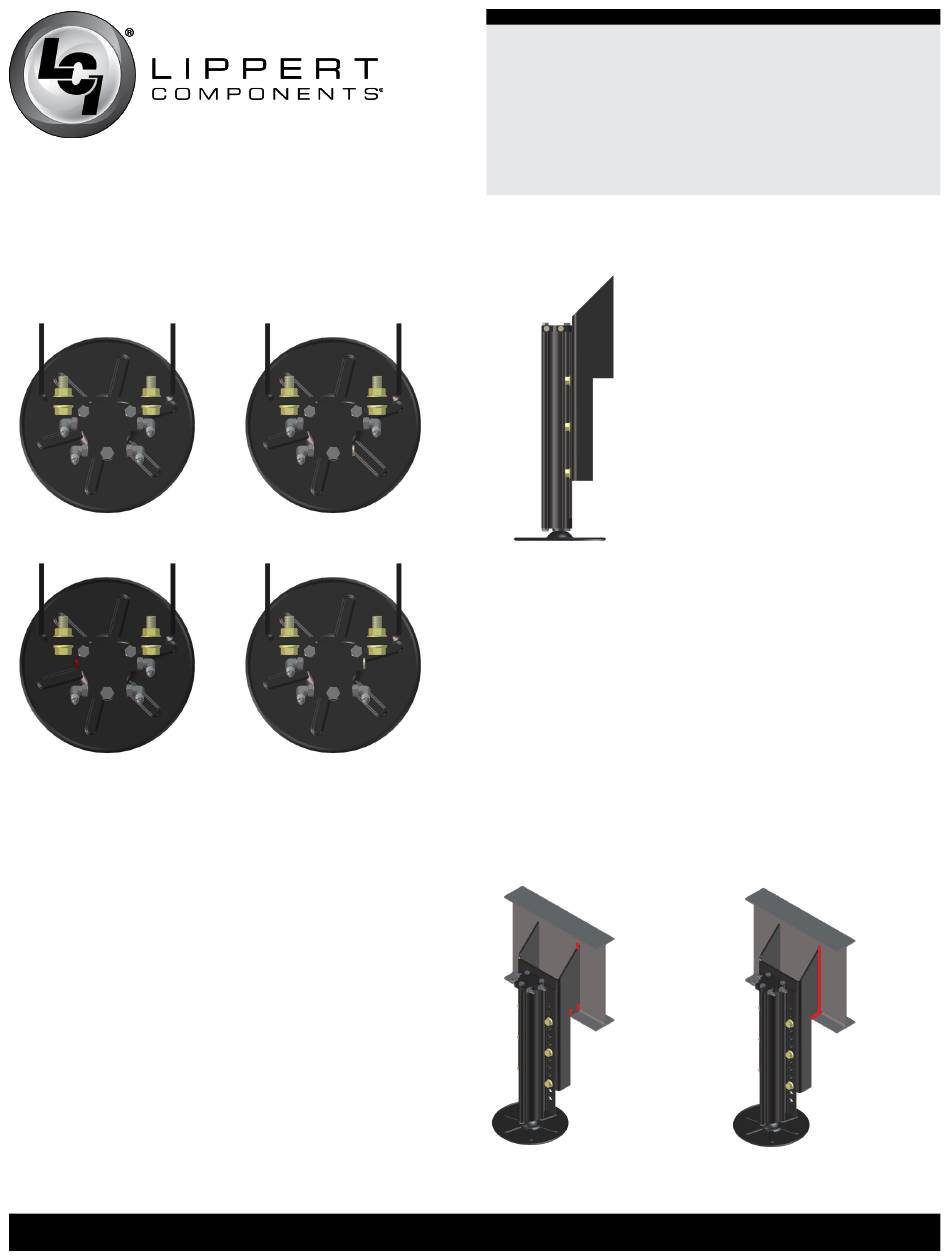

4. Install hydraulic fittings to leveling jacks. See (Figs.4-7)
for details of fitting placement. This example assumes the
power unit is closest to the driver's side (roadside) of the
trailer.
Fig.4
Fig.6
5. If no modifications to the jack brackets are necessary,
skip to Step 9.
6. Dry fit the jack brackets to the chassis of the trailer
frame. The rear jacks must be mounted within the
departure angle, should be aligned with each other from
side to side, mounted 12"-18" behind the rear tires on a
tandem axle trailer or as close to the rear tire, as allowed,
on a tri-axle trailer. The mid jacks should be mounted
approximately 1 foot in front of the front tires. The mid jacks
can be offset from each other side to side by up to 24" in
order to fit the jacks around steps or other obstructions.
The universal mounting brackets are designed to fit a
12" I-Beam with no modifications. However, the frame on
the trailer may not be 12" or there may be obstructions
where the jacks are to be mounted. If that is the case,
measure for the modifications you need to make to the jack
brackets.
lci1.com 574-537-8900
Fig.5
Fig.7
Level Up
Installation and Owner's Manual
(For Aftermarket Application)
7. Mark the needed modifications on the jack brackets
(Fig.8).
Fig.8
8. Using a cutting torch or plasma cutter, cut the material
from the bracket, being careful not to damage the leveling
jack or fittings attached to it.
9. Fit the mounting bracket against the I-Beam, making
sure that the bottom edge of the mounting flange is flush
with the bottom lip of the I-Beam.
10. Tack weld the top and bottom corners of each side of
the mounting flange (Fig.9).
11. By implementing a
to the I-Beam from top to bottom on both sides of the
bracket (Fig.10). Make sure to avoid any hoses or wiring
that may be in the welding area.
Fig.9
4
CCD-0001533
™
1/4
" weld bead, fully weld the bracket
Fig.10
Rev: 06.29.18
