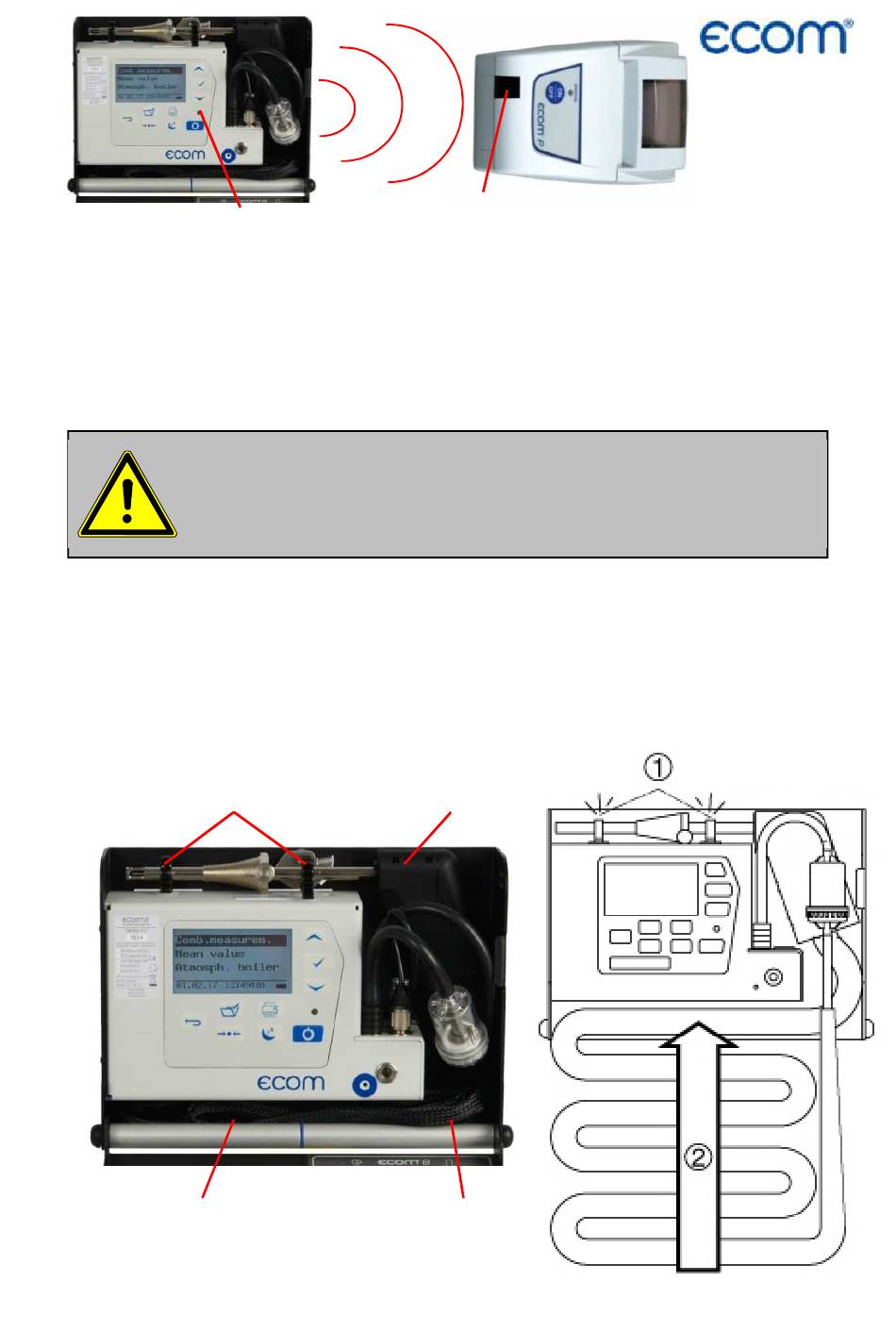

After Measurement - Ecom B Operating Instructions Manual

receiving diode
sending diode
Please care for a frictionless (direct sight) connection between the
sending diode and the receiving diode on the printer. The maximal
distance between both units should not exceed ca. 40 cm otherwise
a trouble free transfer is no more ascertained in any case.

4.6. After Measurement

Let the probe cool down before
stowing them!
Stow probe and probe tube in the device (only devices with alumini-
um cover) as follows:
1. Attach the probe to the designated fixation.
2. Slide the probe tube starting at the probe into the space between
device and case. Pass the hose here alternately from right to left and
from left to right.
Probe
Probe fixation
Storage space for probe tube
probe tube
ecom-B Page 13
