Troubleshooting
Type Code Message / Cause
20 Continuous contact of an external control
25 Incorrect calibration data
27 Control unit On key
29 Control unit Enter key
Tab. 6.2: List / Meaning of Message Codes
Key to Table:
: Maintenance message
: Warning message
: Fault message
First then : First warning message, then fault message
* After servicing work, the respective countdown counter must be manually reset to the start value.
BOGE base control for scroll compressors
6.4
does not open
does not open

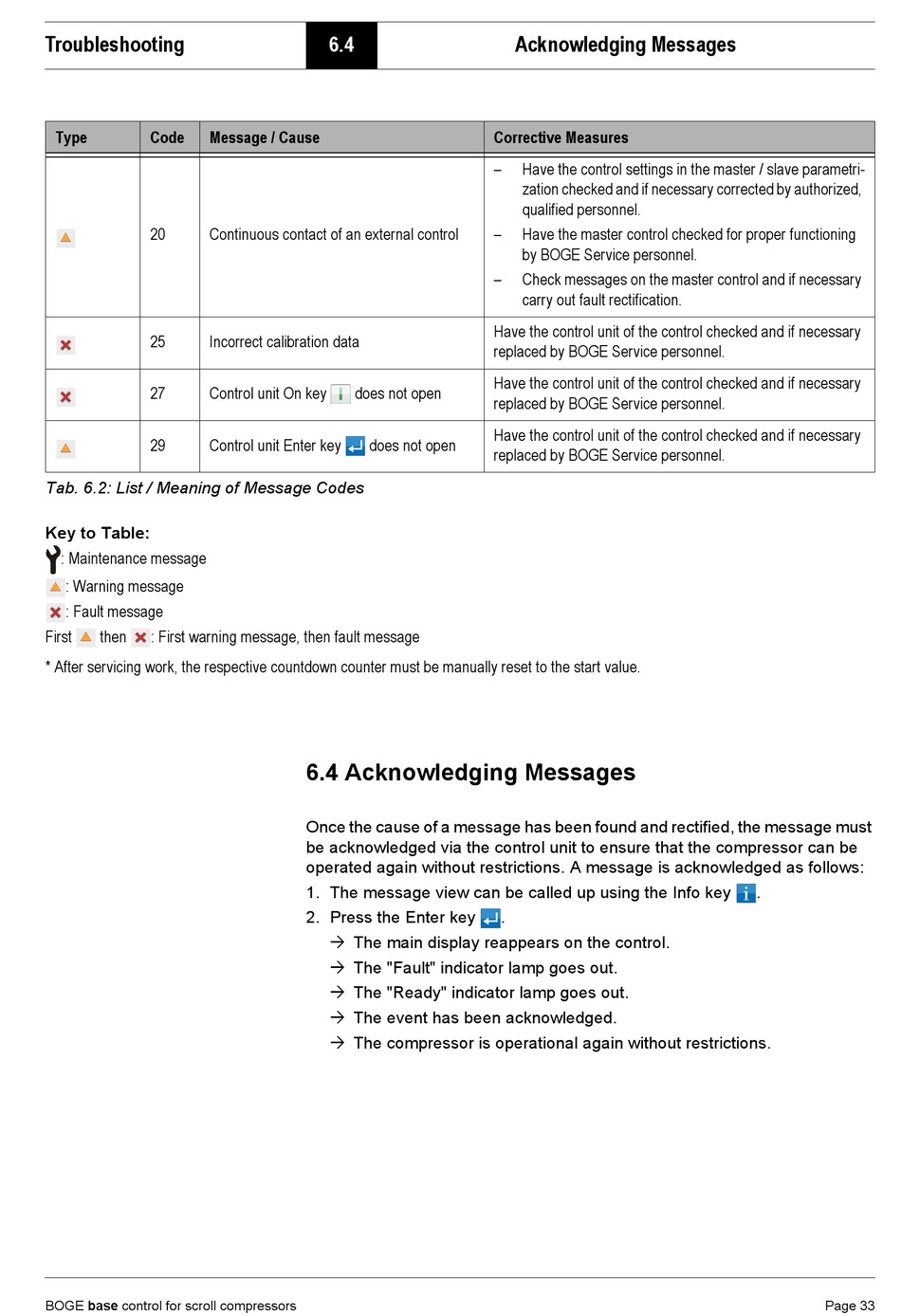

6.4 Acknowledging Messages

Once the cause of a message has been found and rectified, the message must
be acknowledged via the control unit to ensure that the compressor can be
operated again without restrictions. A message is acknowledged as follows:
1. The message view can be called up using the Info key
2. Press the Enter key
 The main display reappears on the control.
 The "Fault" indicator lamp goes out.
 The "Ready" indicator lamp goes out.
 The event has been acknowledged.
 The compressor is operational again without restrictions
Acknowledging Messages
Corrective Measures
– Have the control settings in the master / slave parametri-
zation checked and if necessary corrected by authorized,
qualified personnel.
– Have the master control checked for proper functioning
by BOGE Service personnel.
– Check messages on the master control and if necessary
carry out fault rectification.
Have the control unit of the control checked and if necessary
replaced by BOGE Service personnel.
Have the control unit of the control checked and if necessary
replaced by BOGE Service personnel.
Have the control unit of the control checked and if necessary
replaced by BOGE Service personnel.
.
.
.
Page 33
