Display and Operation
Part 4: Display and Operation
Display Symbol
Three-digit, Seven-segment Display
Pressure
bar/psi
Three-digit, Seven-segment Display
Temperature
°F

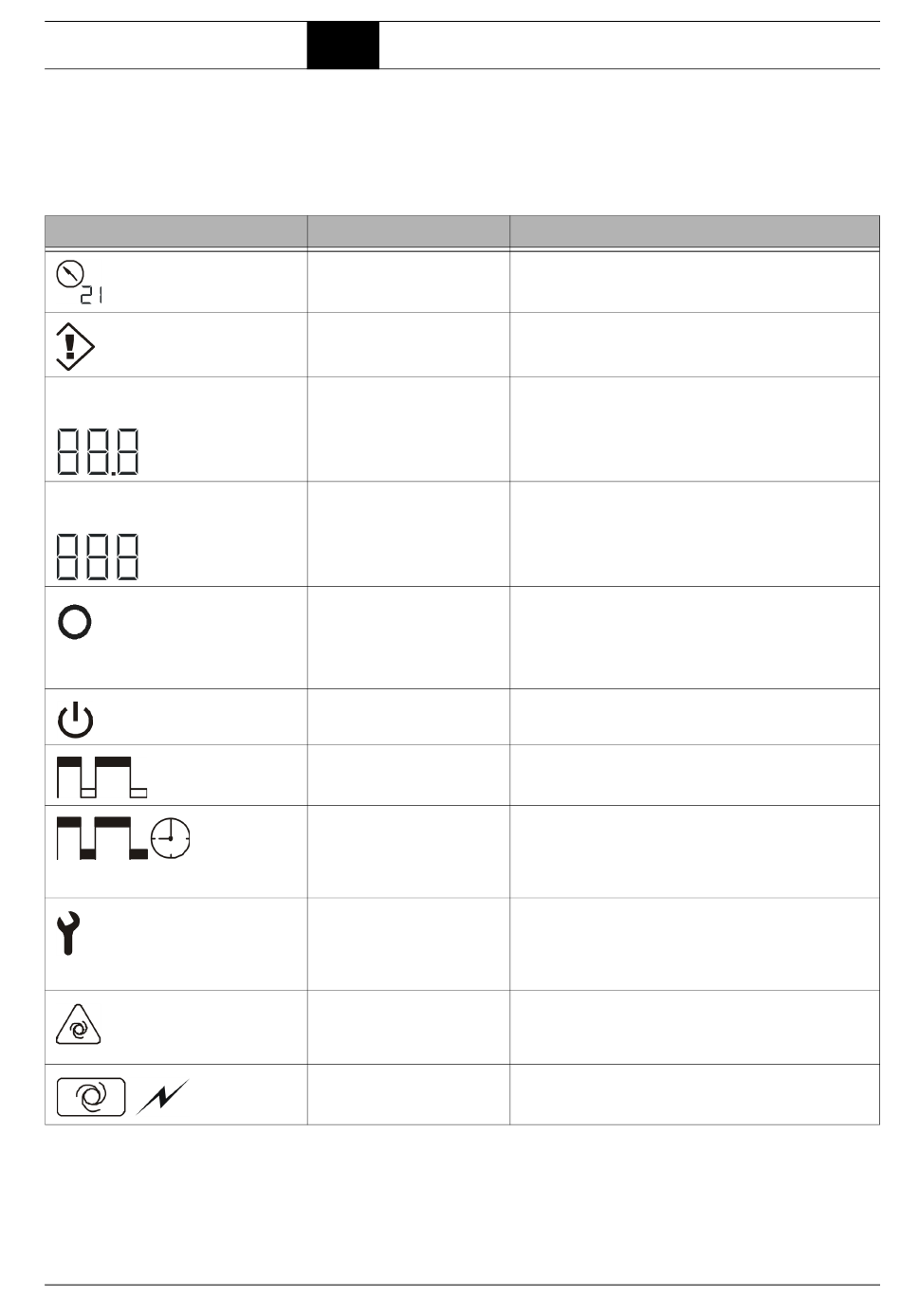

Tab. 4.1: Description of Display Symbols
BOGE base control for scroll compressors
4.1

4.1 Description of Display Symbols

Symbols that may appear on the display are described in the table below:
Name (display it appears in)
Network pressure display
(main display)
Parametrization
(parameter setting displays)
Network pressure display p
(main display)
Final compression
temperature
(main display)
OFF (main display) or motor
(motor servicing interval)
Standby / ready
(main display)
Load run (main display)
Total running time
(operating hours / compressor
servicing interval / motor
servicing interval)
Servicing
(Main display flashing / com-
pressor servicing interval /
motor servicing interval)
Auto-Restart
(Main display / function check
of display elements)
External output release
Description of Display Symbols
Meaning
This symbol indicates that the value displayed on the right
(see 3rd row of this table) is the current network pressure.
This symbol indicates that the user is currently in parame-
trization mode and is able to change a parameter value.
Current network pressure in bar/psi with a decimal point
n
between the 2nd and 3rd digit.
Current final compression temperature in degrees
Fahrenheit.
The circle symbol has two functions depending on which
display it appears:
1. The compressor is switched off.
2. For motor servicing interval.
The compressor is ready for operation.
Output phase
The symbol indicates that the value shown above
is the total operating time of the compressor in hours.
Measurement starts after initial commissioning.
Information on current servicing or servicing that is due.
Auto-Restart function activated:
Automatic restart enabled after power failure (by parame-
trization).
Remote output release activated (e.g. by master control).
