Display and Operation
Operating / Control Element
1 Indicator lamp – Fault (red)

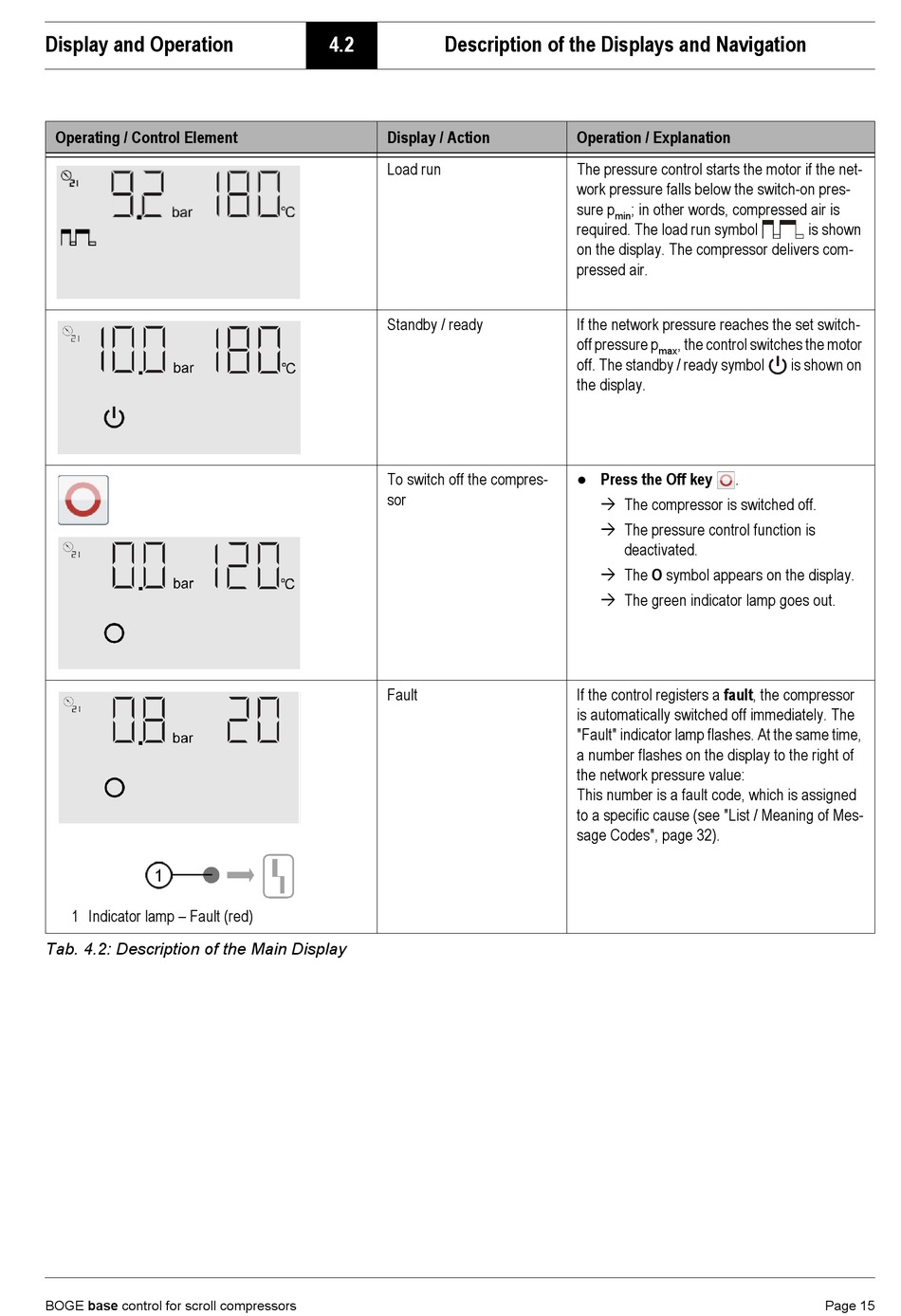

Tab. 4.2: Description of the Main Display
BOGE base control for scroll compressors
4.2 Description of the Displays and Navigation
Display / Action
Load run
Standby / ready
To switch off the compres-
sor
Fault
Operation / Explanation
The pressure control starts the motor if the net-
work pressure falls below the switch-on pres-
sure p ; in other words, compressed air is
min
required. The load run symbol
on the display. The compressor delivers com-
pressed air.
If the network pressure reaches the set switch-
off pressure p , the control switches the motor
max
off. The standby / ready symbol
the display.
● Press the Off key .
 The compressor is switched off.
 The pressure control function is
deactivated.
 The O symbol appears on the display.
 The green indicator lamp goes out.
If the control registers a fault, the compressor
is automatically switched off immediately. The
"Fault" indicator lamp flashes. At the same time,
a number flashes on the display to the right of
the network pressure value:
This number is a fault code, which is assigned
to a specific cause (see "List / Meaning of Mes-
sage Codes", page 32).
is shown
is shown on
