Display and Operation

Additional Displays

Display View / Meaning
means: 124 h total running time
means: 500 h until next compressor servicing
means: 1000 h until next motor servicing
Page 16

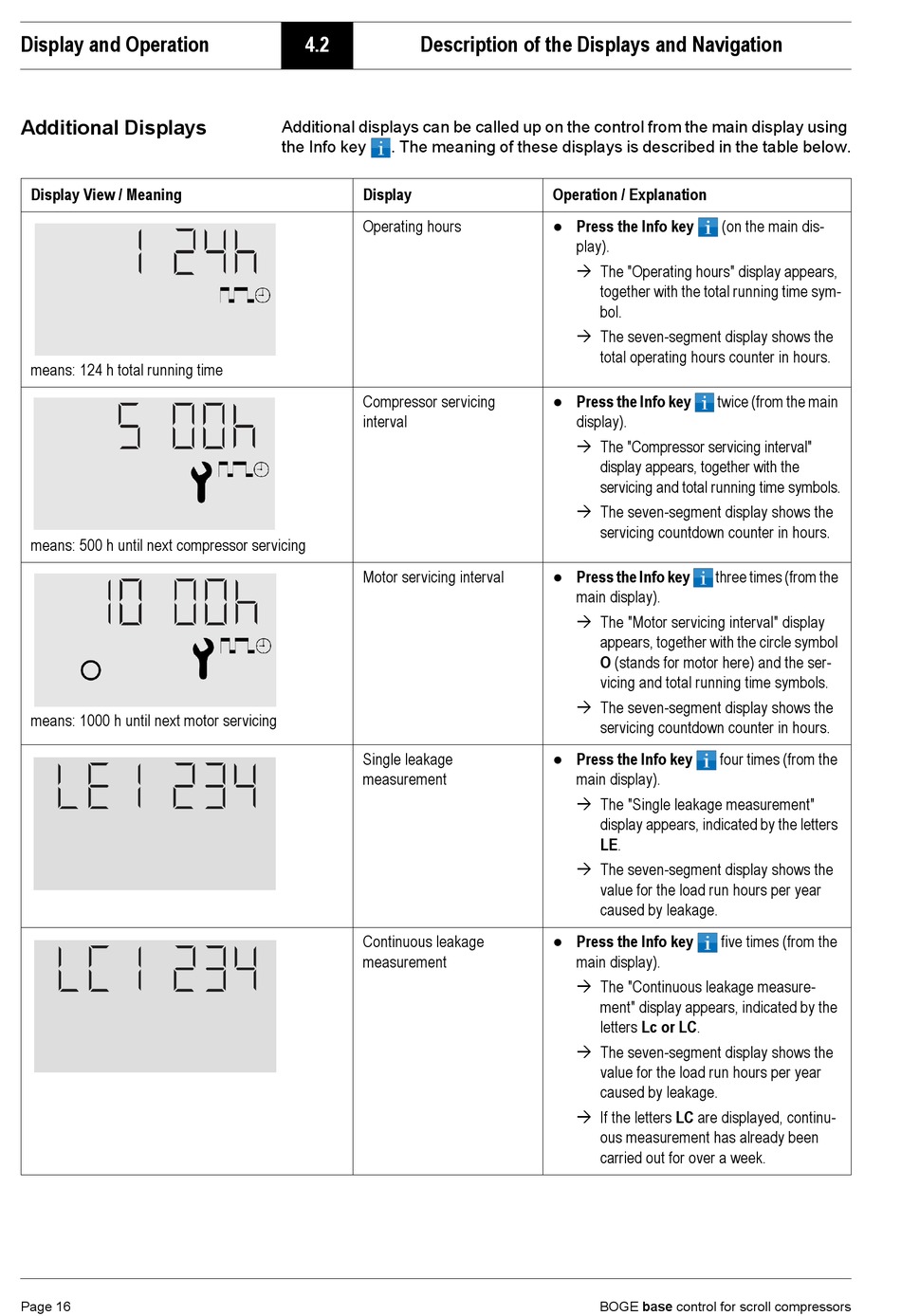

4.2 Description of the Displays and Navigation
Additional displays can be called up on the control from the main display using
the Info key . The meaning of these displays is described in the table below.
Display
Operating hours
Compressor servicing
interval
Motor servicing interval
Single leakage
measurement
Continuous leakage
measurement
Operation / Explanation
● Press the Info key (on the main dis-
play).
 The "Operating hours" display appears,
together with the total running time sym-
bol.
 The seven-segment display shows the
total operating hours counter in hours.
● Press the Info key twice (from the main
display).
 The "Compressor servicing interval"
display appears, together with the
servicing and total running time symbols.
 The seven-segment display shows the
servicing countdown counter in hours.
● Press the Info key three times (from the
main display).
 The "Motor servicing interval" display
appears, together with the circle symbol
O (stands for motor here) and the ser-
vicing and total running time symbols.
 The seven-segment display shows the
servicing countdown counter in hours.
● Press the Info key four times (from the
main display).
 The "Single leakage measurement"
display appears, indicated by the letters
LE.
 The seven-segment display shows the
value for the load run hours per year
caused by leakage.
● Press the Info key five times (from the
main display).
 The "Continuous leakage measure-
ment" display appears, indicated by the
letters Lc or LC.
 The seven-segment display shows the
value for the load run hours per year
caused by leakage.
 If the letters LC are displayed, continu-
ous measurement has already been
carried out for over a week.
