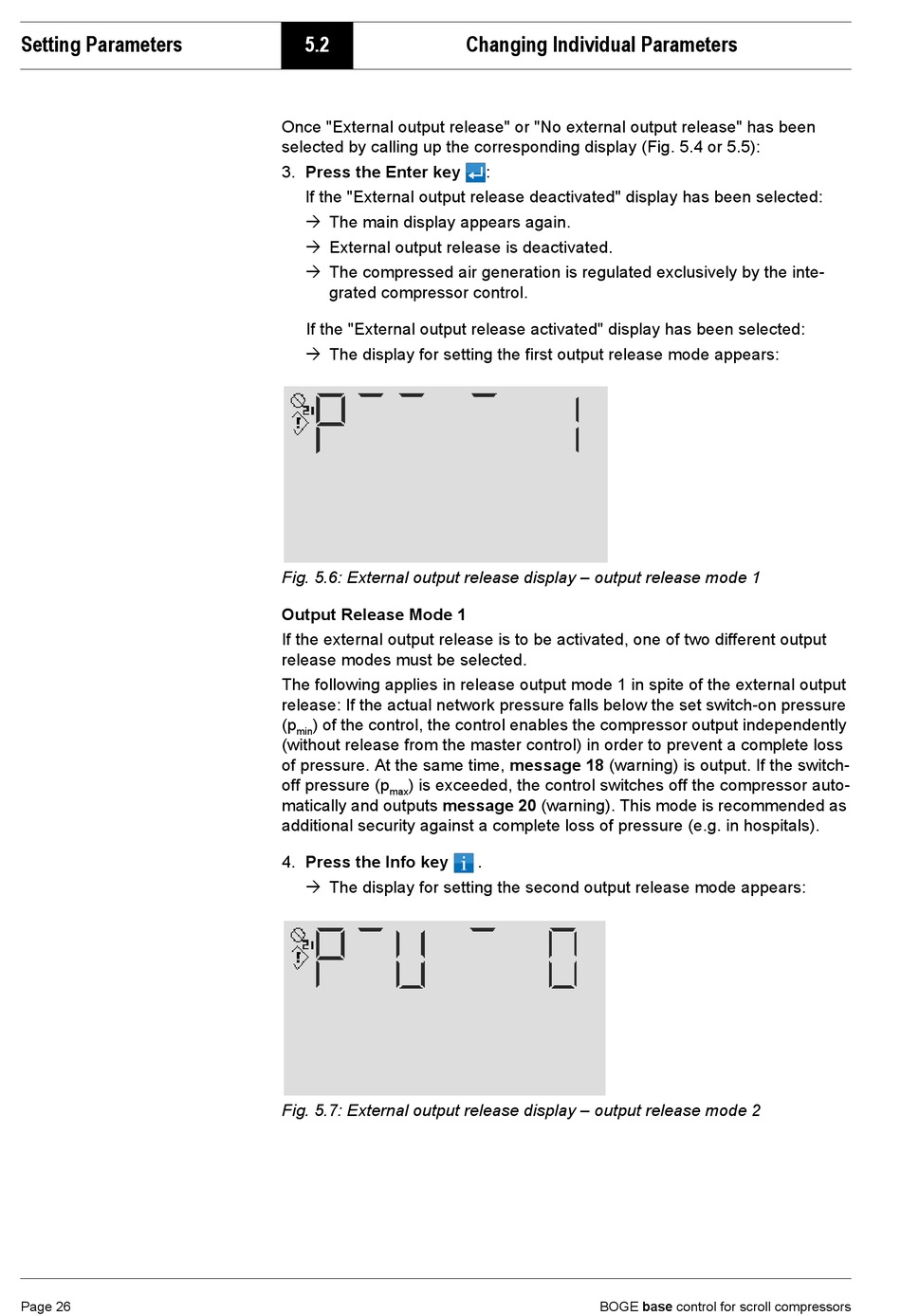

Setting Parameters
Page 26
5.2
Once "External output release" or "No external output release" has been
selected by calling up the corresponding display (Fig. 5.4 or 5.5):
3. Press the Enter key
If the "External output release deactivated" display has been selected:
 The main display appears again.
 External output release is deactivated.
 The compressed air generation is regulated exclusively by the inte-
grated compressor control.
If the "External output release activated" display has been selected:
 The display for setting the first output release mode appears:
Fig. 5.6: External output release display – output release mode 1
Output Release Mode 1
If the external output release is to be activated, one of two different output
release modes must be selected.
The following applies in release output mode 1 in spite of the external output
release: If the actual network pressure falls below the set switch-on pressure
(p ) of the control, the control enables the compressor output independently
min
(without release from the master control) in order to prevent a complete loss
of pressure. At the same time, message 18 (warning) is output. If the switch-
off pressure (p ) is exceeded, the control switches off the compressor auto-
max
matically and outputs message 20 (warning). This mode is recommended as
additional security against a complete loss of pressure (e.g. in hospitals).
4. Press the Info key
 The display for setting the second output release mode appears:
Fig. 5.7: External output release display – output release mode 2
Changing Individual Parameters
:
.
BOGE base control for scroll compressors
