- Page 1 Operating instructions Control for several compressors trinity www.boge.com...
- Page 3 BOGE KOMPRESSOREN Postfach 10 07 13 33507 Bielefeld Otto-Boge-Straße 1-7 33739 Bielefeld Phone: +49 5206 601-0 Fax: +49 5206 601-200 Mail: info@boge.com Net: www.boge.com Issue: 01 / 2010 No. 596.1031.01 Nominal price: € 5,00 BOGE Operating instructions trinity Page I...
-
Page 5: Table Of Contents
General safety instructions ............1 General Safety instructions for operating the control unit....... 1 trinity integrated into the compressor..........1 Exception „Pressure sensor inside compressor switch cabinet“..1 Safety instructions for repair of the control unit ........ 1 Introduction..................2 Correct usage ................... -
Page 7: Part 1: 1.1 General Safety Instructions
Should, as an exception, the pressure transmitter of the trinity be installed in compressor switch the switch cabinet of the compressor (like the compressor pressure transmit- cabinet“... -
Page 8: Introduction
Prerequisites for the compressors to be controlled If the trinity control is ordered with the compressors, we install the interface in the compressors at the factory (mandatory option). If the compressors are already on site, the machines must be prepared for connection to the trinity. -
Page 9: Inadmissable Usage
Please notify us of all other complaints within six days of delivery. Customer service The BOGE Customer Service is always pleased to help you in case you have any questions. Please call: Telephone: +49 5206 601-0... -
Page 10: Components / Range Of Application

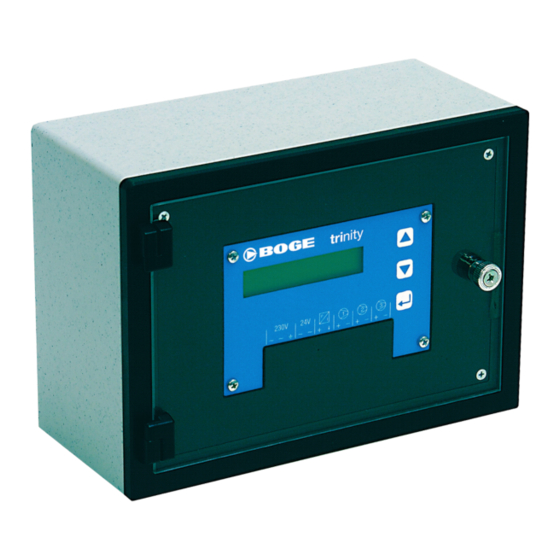

(’Return’ / ’Enter’). The display unit comprises a graphic display and 3 indicator lamps (LEDs) for an additional illustration of the operating modes. Fig. 1.1: Operating and control panel trinity 1 LC-Display (alphanumeric, 16 digit) 2 Arrow key (next information) -
Page 11: Electrical Connections
– example: 10.0 bar 2 08:23h. 10. Display of set lowest and highest pressure switch point possible – exam- ple: P<10.50> 9.50 bar. → 11. Display of exact time (day-no. hh:mm:ss) possible – example: 1..7 08:23:45 h. BOGE Operating instructions trinity Page 5... -
Page 12: Parameter Change
General Parameter change 12. Display of software version possible – example: BOGE V 1 – (see also par- agraph „Fundamental procedures“ at page 6). 13. Operator friendly automatic branching to necessary sequence settings: as soon as the cycle time has been set to 0 h, the switching time appears automatically at first and then the time setting (without a further request for another code). -
Page 13: Number Of Compressors And Interval Period ‚Priority Change
. After first parameterization (by setting the interval time to zero), the display automatically changes to the area described in the section Time, otherwise the display described in 9.) appears ,Pressure + Day + Time’. BOGE Operating instructions trinity Page 7... -
Page 14: Time
Switching times All priority sequences can be set, 000 = general output lock return: Hold arrow key and then press ENTER key at the same time Timer Day: 1 = Monday, 7 = Sunday Page 8 BOGE Operating instructions trinity... -
Page 15: Brief Operating Instructions
Brief operating instructions 1.5 Brief operating instructions Set pressure range 1. Use arrow key(s) to display Software-Version (BOGE V x). → 2. Press ENTER key a three digit number, of which the first number flashes, appears in the place of the software version. -
Page 16: Messages
Switching times All priority sequences can be set, 000 = general output lock return: Hold arrow key and then press the ENTER key at the same time Timer Day: 1 = Monday, 7 = Sunday Page 10 BOGE Operating instructions trinity...
