Layout and Function
Page 10
3.2

3.2 Layout of the Control Unit

The control unit of the base control is structured as follows:
(6)
(7)
(4)
(5)

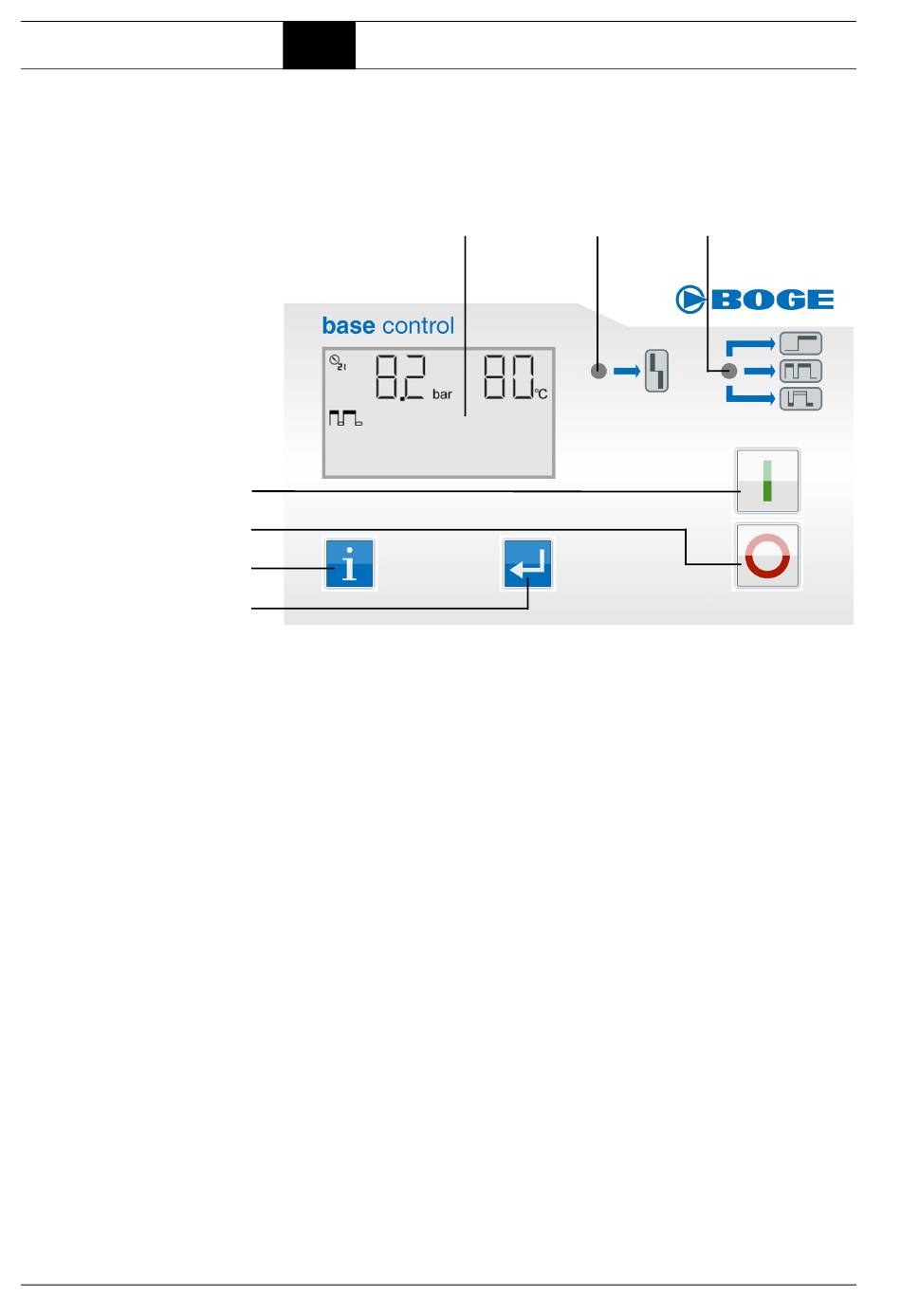

Fig. 3.1: base control – Control Unit
Both display and control elements can be found on the control unit.
Display Elements:
– LCD display (1)
– Indicator lamp – Fault (2)
– Indicator lamp – Ready (3)
Control Elements:
– Info key (4)
– Enter key (5)
– On key (6)
– Off key (7)
The individual elements and their functions are explained in more detail below.
Layout of the Control Unit
(1) (2)
BOGE base control for scroll compressors
(3)
