Layout and Function

LCD Display (1)

"Fault" and "Ready"
Indicator Lamps (2 and 3)
Info and Enter Keys
(4 and 5)
BOGE base control for scroll compressors
3.2
The control display provides an overview of the individual functions of the con-
trol and allows you to monitor compressor operation, apply settings and cor-
rect these if necessary.

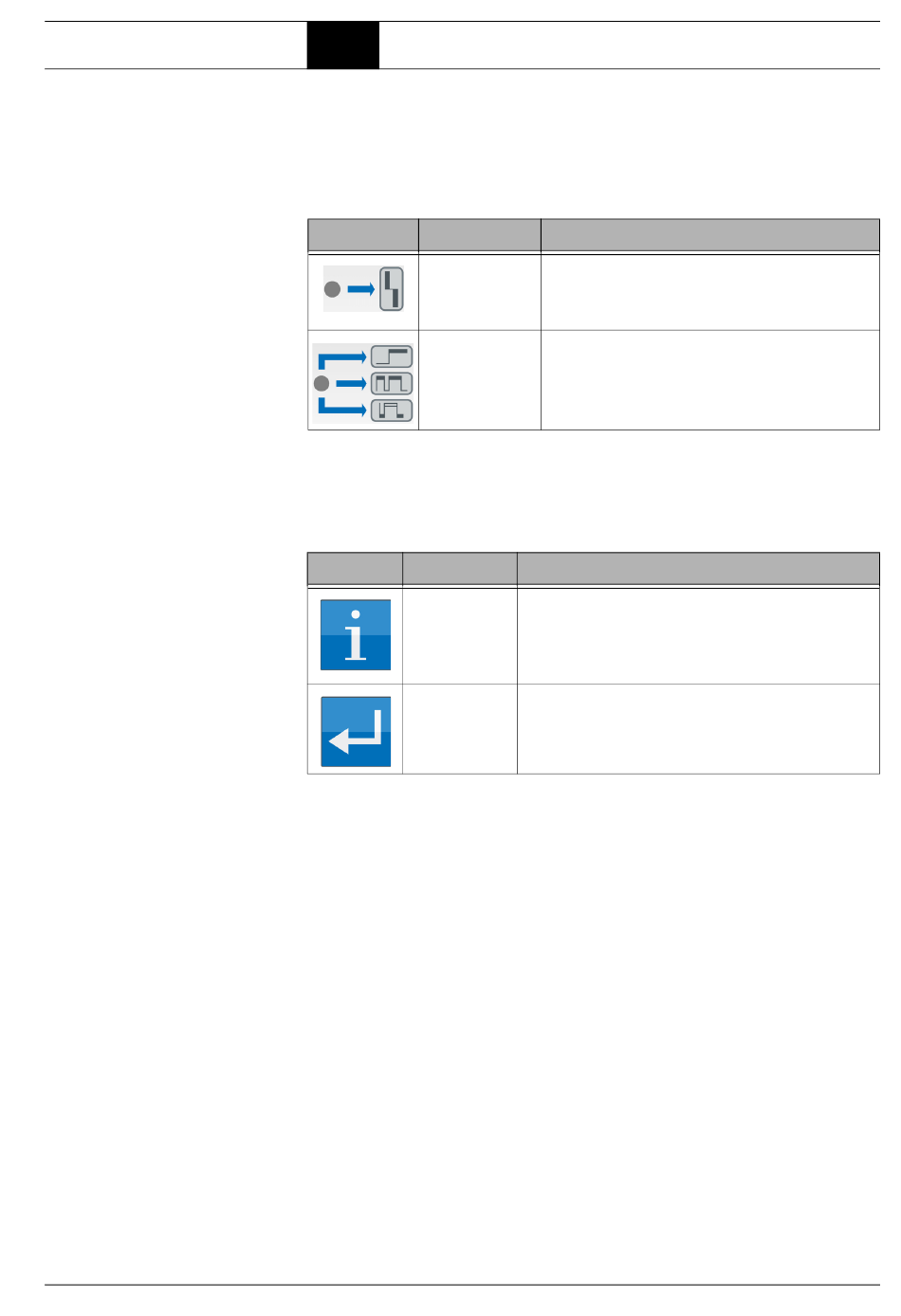

LED Designation
Fault
(red)
Ready
(green)
Tab. 3.1: Meaning of the Indicator Lamps
The user can navigate between the individual displays and apply settings or
changes to parameters using the Info and Enter keys:
Key Designation
Info key
Enter key
Tab. 3.2: Functions of the Info and Enter keys
Layout of the Control Unit
Meaning
– Flashing: the control is signaling a fault.
– Rapid flashing: the control is signaling
a warning / maintenance message.
– Lights up: the compressor is ready for operation.
Function
– To switch between the displays for calling up various
pieces of information that can be issued by the con-
trol.
– To change a value.
– To edit values.
– To confirm a setting.
Page 11
