RTCU MX2 turbo Technical Manual V2.04
Appendix B – Installing a SIM-card into the internal SIM-card reader
To get access to the internal SIM-card reader it is necessary to disassembly the device as described
in Appendix A.
The SIM card reader is a lid-based type with a mechanical lock to secure a safe installation.
1. Open the hinged lid of the reader and orientate the SIM- card as shown below.
2. Insert the SIM-card into the lid of the card reader.
3. Close the lid and slide the metal locking mechanism to the locked position.
4. Assemble the unit again.
To remove the card, slide the metal locking mechanism to the unlocked position as shown with an
arrow and text on the lid, and open the lid. The SIM-card can now be removed.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark

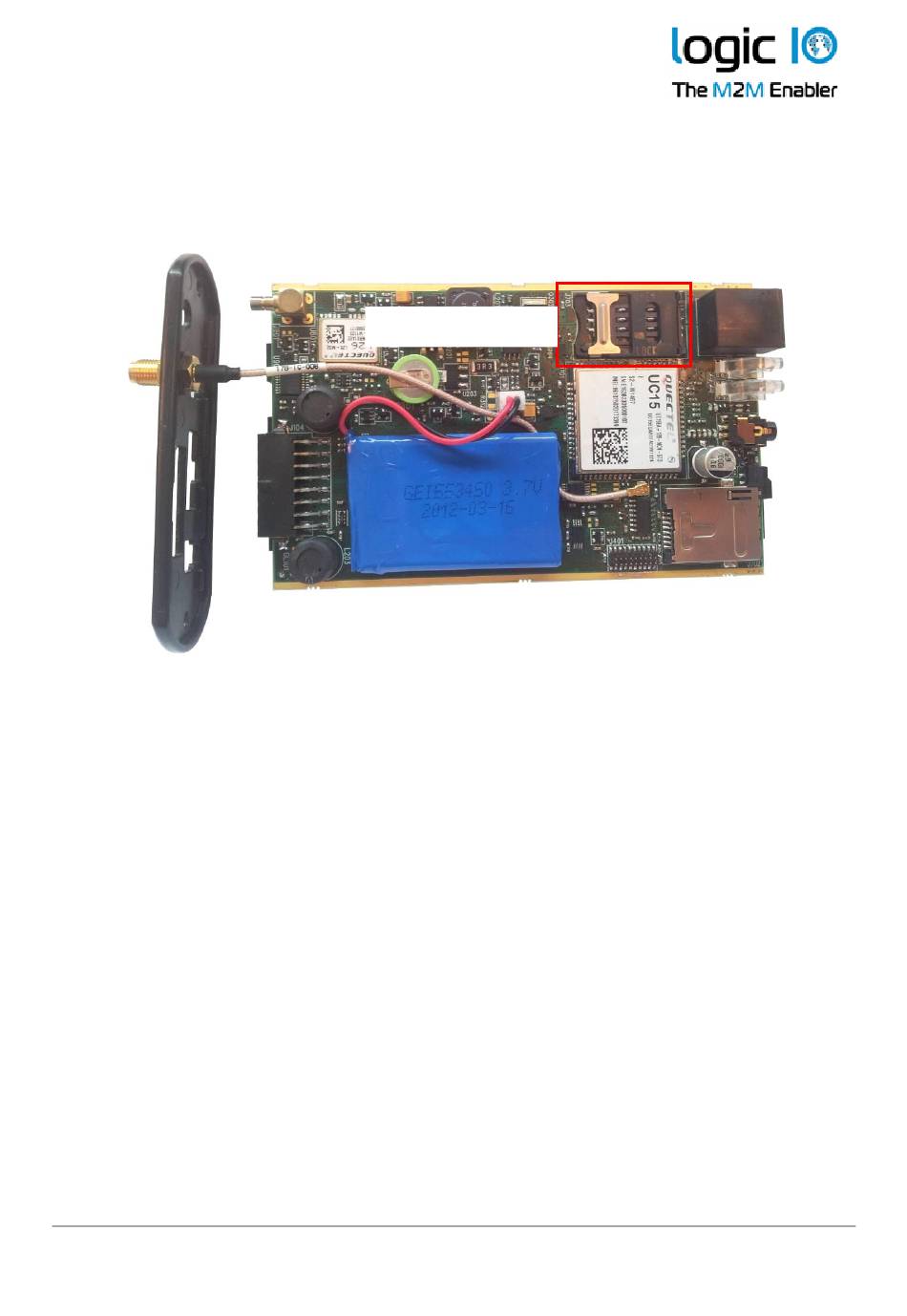

Internal SIM-card reader
