Appendix A – Assembling/disassembling of the unit
The CAN write enable jumper and a SIM-card reader are located inside of the unit. In order to gain
access to these interfaces, it is necessary to remove the internal board from the aluminum
encapsulation. The following steps describe the process.
ATTENTION: The device internal electronics are sensitive to Electro Static Discharge
(ESD) and must be handled only in an ESD safe environment.
Avoid touching the electronics components and parts.

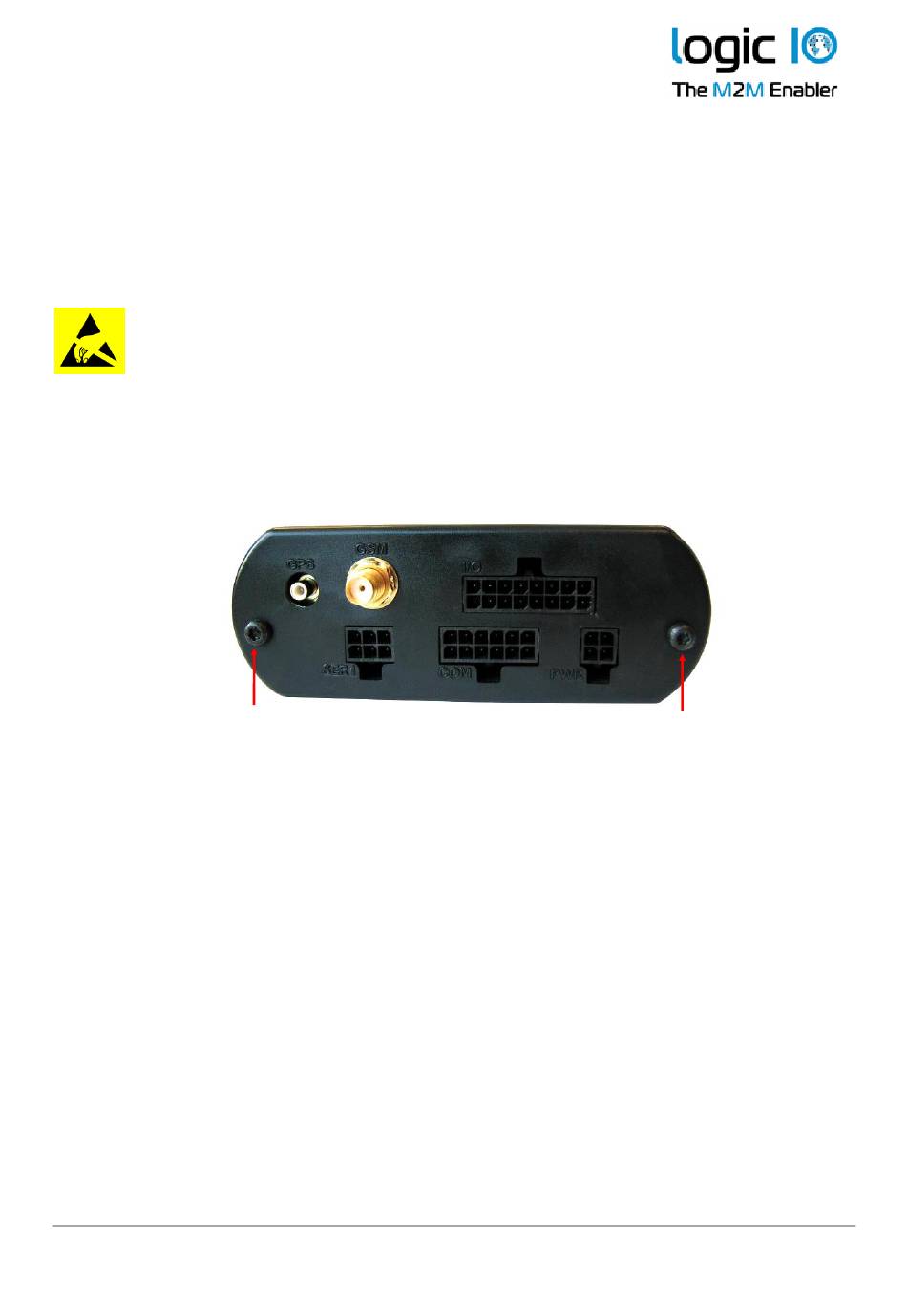

1. Remove the back-panel. Use a Torx TX10 screwdriver to remove the two screws.
2. Gently pull out (not all the way) the electronic board so it is exposed.
Hint: Use a finger to push on the RJ45 connector on the opposite end.
For assembling please follow the above steps backwards. In any case DO NOT USE FORCE.
If difficulty is experienced, it is because the light-pipes on the opposite end has moved a bit, when
the electronic board was removed, and it may be necessary to loosen the front end-panel a bit to
make them fit in the holes again.
Be careful not to tighten the screws too much thereby damaging the aluminum.
