1.8 Transmission Distance

The maximum transmission distance up to 230ft (70m), use lower resolution won't extend longer distance

If connection through the wall socket, the cable length must less 5 meters between HDMI extender

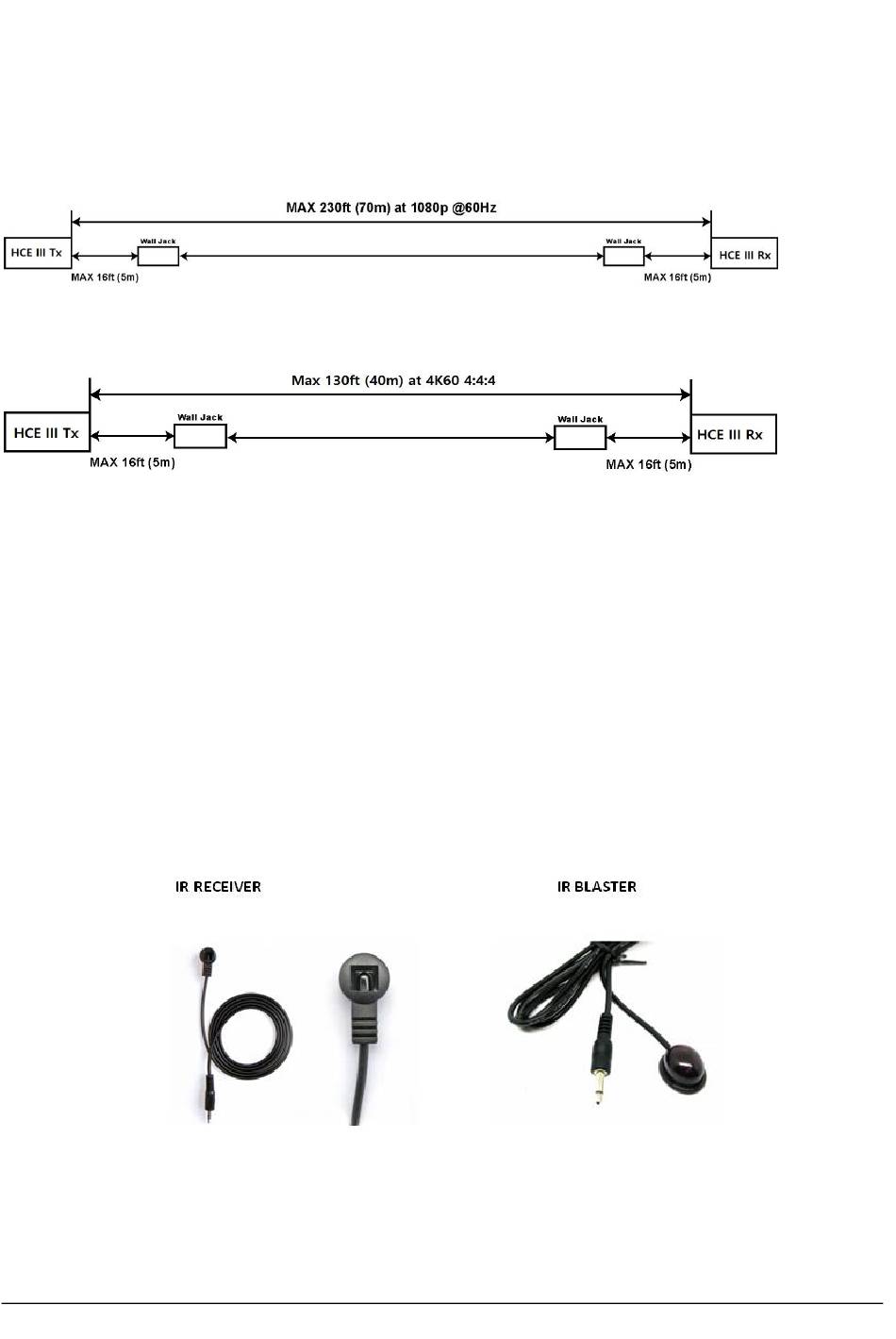

and wall jack, as below drawing:

1.9 Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect CATx cable between the HCE III transmitter and the HCE III receiver.

3. Connect HDMI cable between the source and the HCE III transmitter AND the

HCE III receiver and the display.

4. Connect the power supply unit to both HCE III transmitter and receiver module.

5. Turn on Display.

6. Turn on Video Source.
