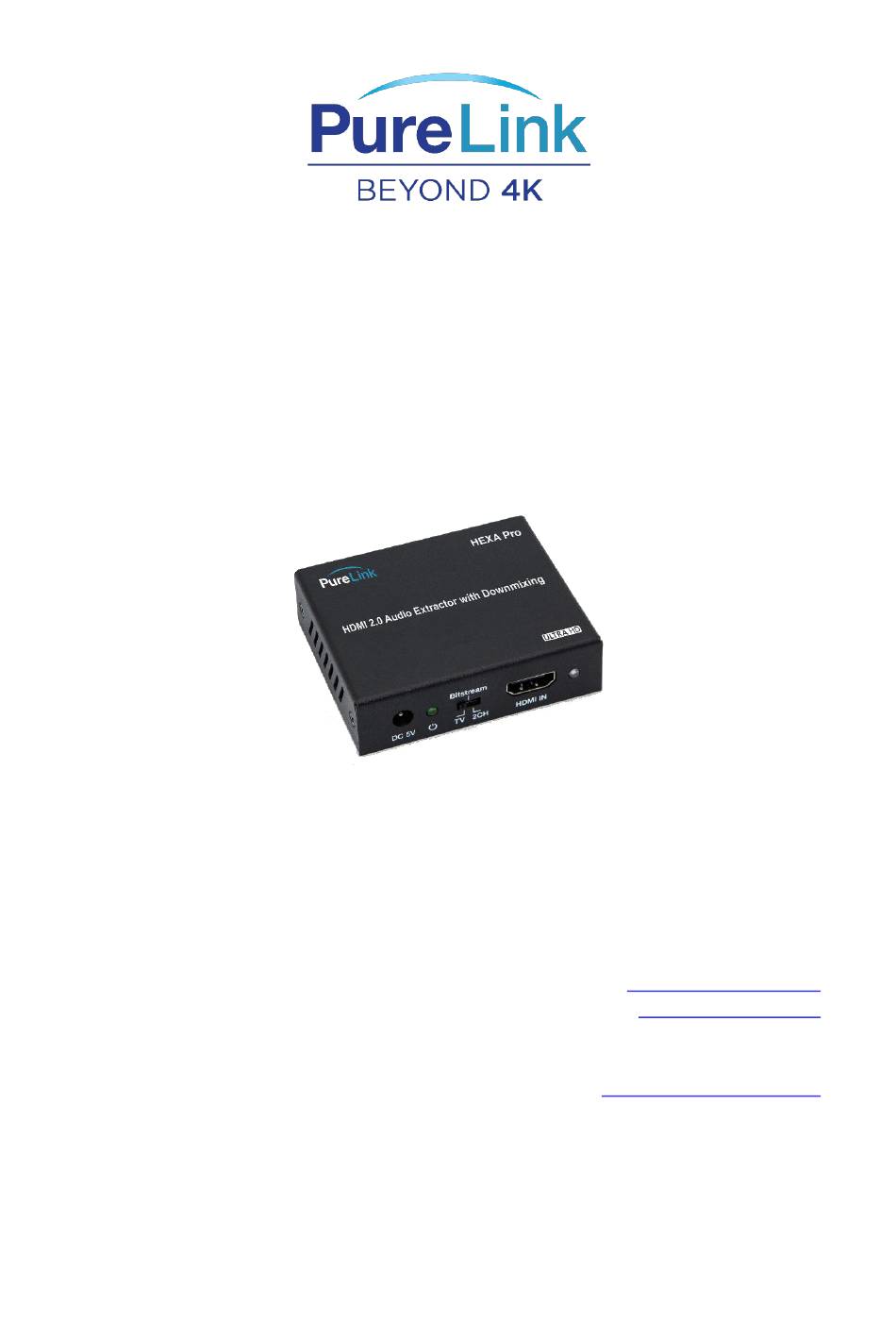

HDMI 2.0 Audio Extractor with Down-mixing
For technical support, please contact us at
HEXA PRO
Owner's Manual
For order support, please contact your local dealer.
PureLink
22-10 State Route 208
Fair Lawn, NJ 07410USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
support@purelinkav.com
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PureLink HEXA PRO
Summary of Contents for PureLink HEXA PRO
- Page 1 HEXA PRO HDMI 2.0 Audio Extractor with Down-mixing Owner's Manual PureLink 22-10 State Route 208 Fair Lawn, NJ 07410USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...
-
Page 2: Chapter 1. Introduction
PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions • All safety instructions should be read and understood before the unit is operated. • The owner’s manual and safety instructions should be retained for future reference. • Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth only. -
Page 3: Declaration Of Conformity
PureLink by Dtrovision 1.2 Declaration of Conformity According to Council Directive 73/23/EEC (February 19, 1973) on the Harmonization of the Laws of Member States relating to Electrical Equipment; Council Directive 89/336/EEC (May 3, 1989) on Electromagnetic Compatibility; Council Directive 93/68/EEC (July 22, 1993)-Amending Directives 89/336/EEC (MC) and 73/23/EEC (Low Voltage... -
Page 4: Product Introduction
PureLink by Dtrovision 1.4 Product Introduction The HEXA Pro extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs.For maximum flexibility, HEXA Pro audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass-through. -
Page 5: Chapter 2. Product Features
PureLink by Dtrovision Chapter 2. Product Features 2.1 Features • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant • Video resolutions up to 4K2K@50/60Hz (YUV444) • Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio • HDMI Pass-through audio input to HDMI and optical audio output •... -
Page 6: Chapter 3. Operational Guidelines
PureLink by Dtrovision Chapter 3. Operational guidelines 3.1 Main Menu User Guide Front Panel Number Name Function description DC 5V Connect 5V/1A adapter to AC wall outlet for power supply. Power LED System power indicator. TV/Bitstream The user allows to select audio format according to /2CH Copy TV, Bitstream or 2CH. - Page 7 PureLink by Dtrovision Number Name Function description HDMI OUT HDMI output for display connectivity. OPTICAL Out Toslink digital audio output(mirrors HDMI). L/R OUT Stereo RCA analog audio output.
-
Page 8: Sample Application Diagram
PureLink by Dtrovision Sample Application Diagram... -
Page 9: Specification
PureLink by Dtrovision Specification: Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P Video Resolutions 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD,... -
Page 10: Chapter 4. Additional Information
PureLink warrants this UX Series HDMI Integrated Matrix Switcher to be free from defects in workmanship and materials, under normal use and service, for a period of three (3) year from the date of purchase from PureLink or its authorized resellers.
