- Page 1 HDX II Owner’s Manual Modular Fiber Optic HDMI Extender Dtrovision LLC E-mail: mpark@dtrovision.com 9A Bergen Turnpike www.purelinkav.com Little Ferry, NJ 07643 Tel: 201.488.3232 For technical support, contact: Fax: 201.621.6118 support@dtrovision.com...
-
Page 2: Package Contents
PureLink by Dtrovision Package Contents Please make sure all of the following items are included in the package: 1) HDX II Transmitter Module 2) HDX II Receiver Module 3) 6ft HDMI Cable (x2) 4) DC 12V Power Supply Unit with a power cord... -
Page 3: General Specification
PureLink by Dtrovision General Specification HDX II is a HDMI extension system over pure fiber optic cable for long distance up to 5,000ft. Compact & durable design and low power consumption makes it an ideal solution for connection for high definition video/audio signal of digital displays such as LCD/Plasma displays and projectors. -
Page 4: Operation And Reliability Specification
PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 50F ~ 104F (10℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 5: Main Features
2. Built-in signal repeater to support longer distance between the source and the H DX II transmitter & HDX II receiver and the display. This Signal Repeater logic sup ports up to 50ft copper based HDMI cables. 3. Compact and Robust Module Design 4. -
Page 6: Installation And Connection Instructions
For reliability and correct signal transmission of the video source, EDID emulation is recommended. Please follow the steps below; 1. Connect the HDX II transmitter’s HDMI input port to the Display’s HDMI input port 2. Press and hold EDID switch for about 2 seconds until the Display’s EDID is successfully saved on t o the transmitter. - Page 7 PureLink by Dtrovision Signal Status LCD Display The LCD panel on HDX II transmitter and receiver shows the current signal status. Example Status:...

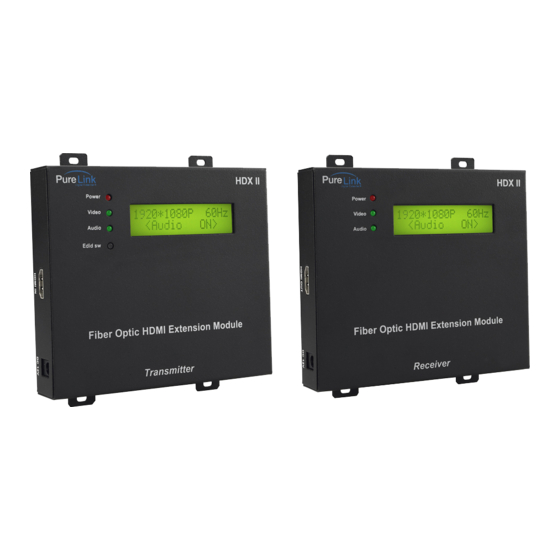

- Page 8 PureLink by Dtrovision HDX II Transmitter and Receiver Specification Module Dimensions: 53.6x46.5x9.86 (inches) 136x118x25(mm) Transmitter Module Connection Ports; HDMI IN: HDMI Input 1234 optical receptacles 12V DC Power Supply Unit Input Receiver Module Connection Ports; HDMI OUT: HDMI Output 1234 optical receptacles 12V DC Power Supply Unit Input LCD Panel Display;...
-
Page 9: Technical Specification
PureLink by Dtrovision Technical Specification Data Transfer Speed: Up to 10 Gbps Frequency Range: 25 ~ 165 MHz Supporting Display Resolutions: 1080p / Up to WUXGA (1920X1200)@60Hz I/O Signal Standard: HDMI 1.3, TMDS Max Distance: 1,000m (3,300ft) at 1080p / 1920x1200@60Hz... -
Page 10: Warranty
PureLink by Dtrovision Warranty 2 (Two) Year Warranty Dtrovision warrants this fiber optical HDMI extension cable to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers. -
Page 11: Fcc/Ce Statement
PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
