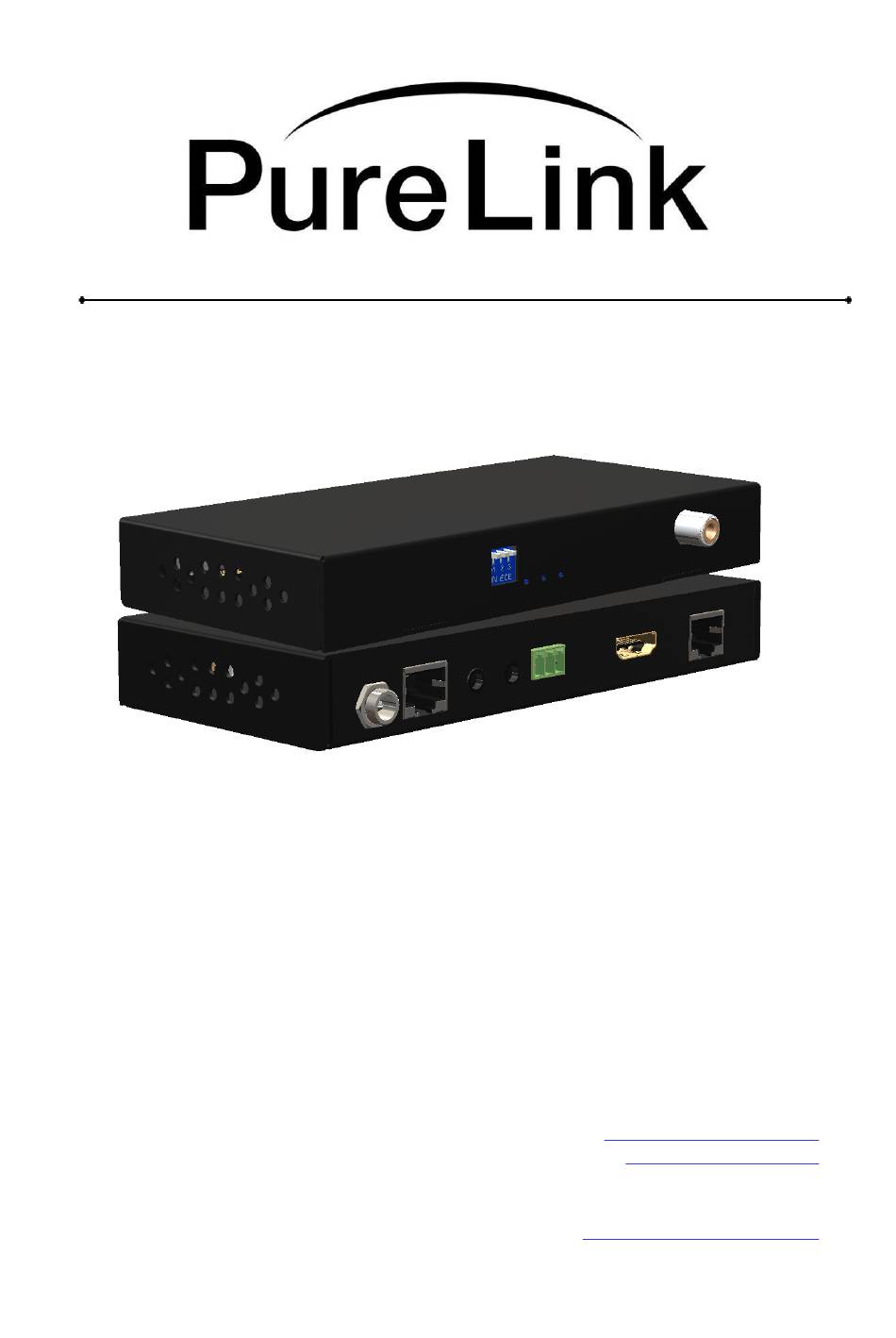

Owner's Manual
HTE-T III
4K HDMI over HDBaseT™ Extension System
TM
PureLink
22-10 State Route 208
Fair Lawn, NJ 07410 USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com
Advertisement
Related Manuals for PureLink HTE-T III
Summary of Contents for PureLink HTE-T III
- Page 1 Owner's Manual HTE-T III 4K HDMI over HDBaseT™ Extension System PureLink 22-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...
-
Page 2: Chapter 1. Introduction
PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions ● All safety instructions should be read and understood before the unit is operated. ● The owner’s manual and safety instructions should be retained for future reference. ● Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth only. - Page 3 1.3 What’s in the Box ● 1 x HTE-T III [TX & RX] ● 1 x IR blaster ● 1 x IR receiver ● 1 x DC 24V 1A in-line with C7 power cord ●...
-
Page 4: Product Introduction
PureLink by Dtrovision 1.4 Product Introduction The HTE-T III 4K-HDR HDMI Extender over Single Cat.X with HDBaseT, RS-232, Bi-directional IR, Ethernet, PoC & ARC boosts up your video/audio transmission distance to 100m (330ft) in HDTV 1080p with 36-bit color depth and 70m (230ft) at 4K-HDR. With the advanced design for the latest HDMI 2.0a technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP 2.2... -
Page 5: Chapter 2. Product Features
PureLink by Dtrovision Chapter 2. Product Features 2.1 Features ● HDMI 2.0a compliant ● Supports 4K2K@60 4:4:4 8bits Supports HDR 4K2K@60 4:2:0 10bits ● ● Extends HDMI signal up to 100m (330ft) from the HDMI source at Full HD 1080p 36-bit, 70m (230ft) at 4K2K@60 444 (4K-HDR Technology) ●... -
Page 6: Chapter 3. Operational Guidelines
PureLink by Dtrovision Chapter 3. Operational guidelines 3.1 Main Menu User Guide Transmitter Front/Rear Panel Dip Switch: for F/W update DIP Switch Position Description Reserved OFF [ ] PIN#1 Reserved ON [ ] RS-232 normal use OFF [ ] OFF [ ]... - Page 7 PureLink by Dtrovision IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster RS-232(terminal block format): The order of RS-232 pin are TX, RX, GND (from the left...
-
Page 8: Sample Application Diagram
PureLink by Dtrovision Dip Switch: for F/W update DIP Switch Position Description OFF [ ] Reserved PIN#1 Reserved ON [ ] OFF [ ] OFF [ ] RS-232 normal use Reserved OFF [ ] ON [ ] PIN#2 PIN#3 ON [ ]... -
Page 9: Specification
PureLink by Dtrovision Specification: Model Name HTE-T III Technical HTE-T III TX HTE-T III RX Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 2.0a HDCP compliance Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) - Page 10 WE/SS 8P8C(Reverse Mode) Rotary control switch None 3.5mm connector IR receiver / IR blaster IR receiver / IR blaster Mechanical HTE-T III TX HTE-T III RX Housing Metal enclosure Model 153 x 73 x 21 mm [6" x 2.9" x 0.8"] Dimensions...
-
Page 11: Definition Of Ir Earphone Jack
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a... -
Page 12: Customer Service
PureLink, Fair Lawn, NJ USA, with the RMA number clearly marked on the outside of all shipping boxes and containers. PureLink reserves the right at its sole discretion to refuse any shipments arriving freight collect or without an RMA number. Any authorized returned merchandise must be accompanied by a note describing the reason for return, along with contact information including name, phone number, return mailing and shipping addresses, e-mail address, and RMA number.
