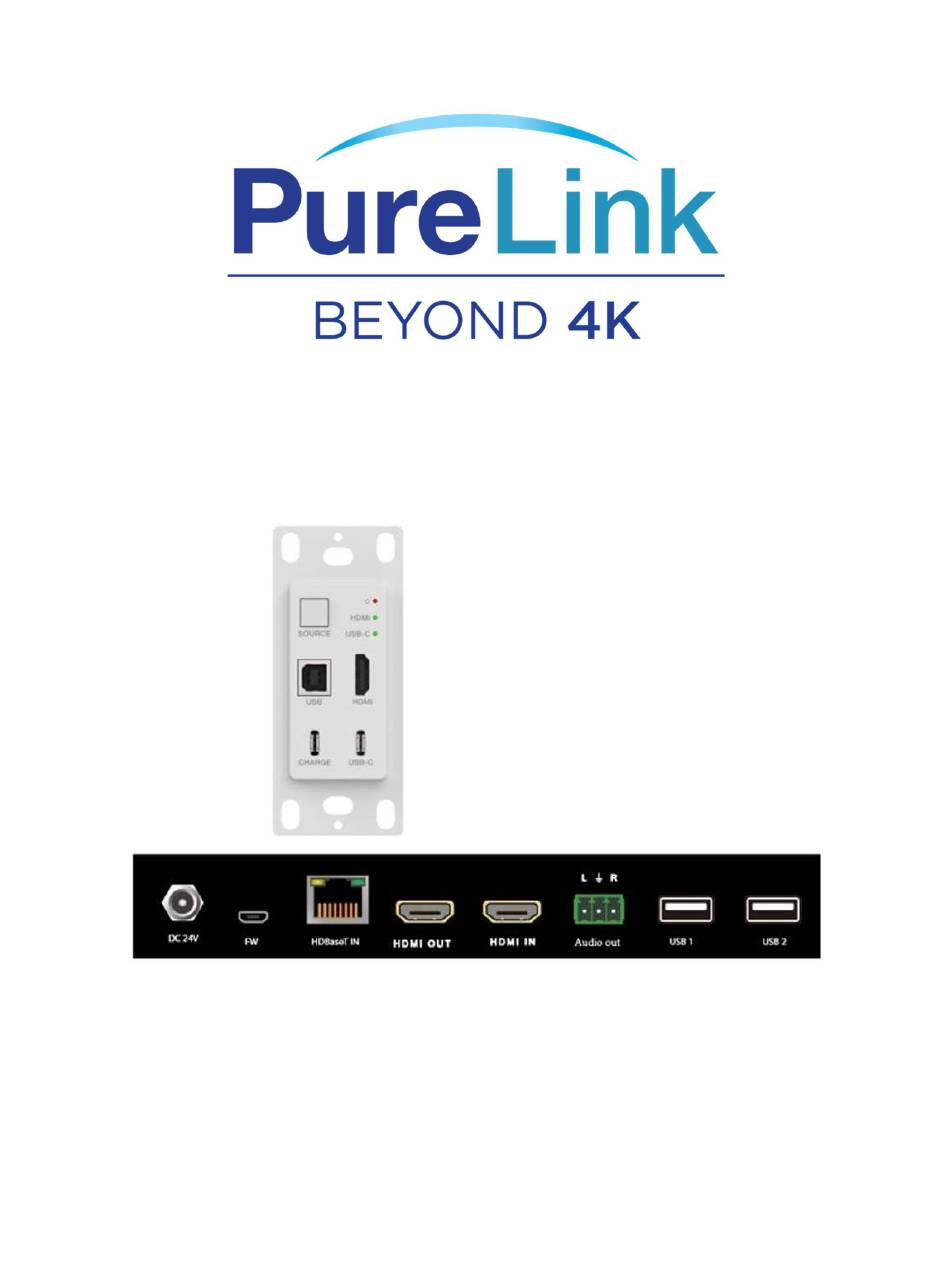

- Page 1 Purelink HWCE-III User Manual V1.2 HWCE-III 4K60 Wallmount Extender System...
- Page 2 Purelink HWCE-III User Manual V1.3 Contents Features ................................ 3 Specifications ..............................3 What’s in the box ............................3 Product Description ............................3 Operation Controls and Functions ........................ 4 Transmitter Panel............................4 Receiver Panel ............................5 Transmitter Modes ............................6 Installation ..............................6...
- Page 3 Purelink HWCE-III User Manual V1.3 Features Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a Support 18Gbps video bandwidth Video resolution up to 4K@60Hz 4:4:4 HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable ...
- Page 4 Purelink HWCE-III User Manual V1.3 Operation Controls and Functions Transmitter Panel 1. Power LED: The POWER LED indicator will illuminate green when the product is powered on, and red when the product is on standby. 2. HDMI LED: When the HDMI port is active and an HDMI signal is detected, a green LED will turn on.
- Page 5 Purelink HWCE-III User Manual V1.3 Receiver Panel 1. DC 24V: DC 24V power supply port 2. FW: Firmware update port 3. HDBaseT IN: Connect to the HDBaseT OUT port of the transmitter with a CAT6/6a/7 cable. 4. HDMI OUT: HDMI outport port, connect to HDMI display device.
- Page 6 Purelink HWCE-III User Manual V1.3 Transmitter Modes Manual Switching Mode: Press the SOURCE button to select HDMI/USB-C input source Automatic Switching Mode: The last connected or currently connected source will be selected automatically. When BOTH HDMI and USB-C are CONNECTED with an active signal, HDMI signal will override USB-C. When both HDMI and USB-C ports are NOT connected to active signal, it will switch to the source signal of the receiver.
- Page 7 TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its...
- Page 8 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
